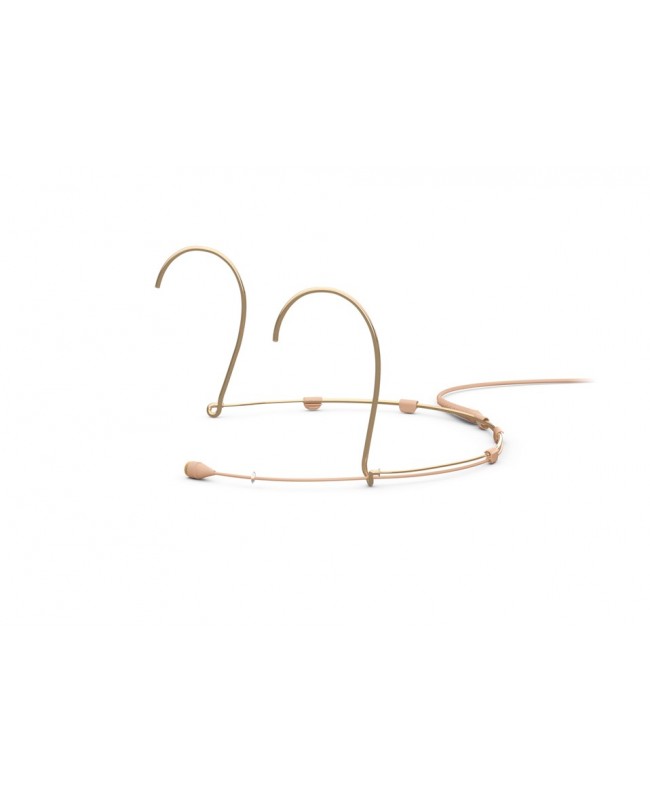

DPA 4066-OP-A-F90-LH Headset | Earset Microphones

DPA 4066-OP-A-F90-LH


€720.00
Tax included

4066 CORE+ Microphone with Omni Headset, Beige, MicroLock


Qty

In Stock

Delivery

Do You want Your order by Friday, 19/12/2025? Order within 5 hours and 6 minutes

Free shipping


wishlist

DPA 4066-OP-A-F90-LH






  • Moisture resistant
  • Double-vent protection system

Available in three colors and three sizes Modular adapter system allows use with most professional wireless systems Pristine sound and great ruggedness A microphone capable of reproducing clean, transparent, quality audio used for years in broadcast theater and musicals, from Broadway to the West end; as well as in many auditoriums and conference rooms. Due to its pristine sound and great robustness. The construction of the headband is unique. The microphone rod can be detached from the headset and reassembled on the right or left side. Moisture, which is often a critical factor in theatrical applications, is not a problem at all for this type of microphone as it is built with a double-vented protection system and a drip stop on the boom. The internal materials are also resistant to moisture, making it very difficult to cause damage to the microphone. The sensitivity is 6 mV/Pa. This aligns the output level of the human voice with the input sensitivity of most wireless transmitters. When properly powered, the microphone can withstand very high sound pressures, up to 144 dB SPL before saturation.

  • Directional model: Omnidirectional
  • Operating principle: Pressure
  • Cartridge type: pre-polarized capacitor
  • 20 Hz: 20 kHz
  • Effective frequency range 2 dB
  • Directional model: Omnidirectional
  • Operating principle: Pressure
  • Cartridge type: Pre-polarized capacitor
  • 20 Hz: 20 kHz
  • Soft amplification grid: 40 Hz - 20 kHz, 3 dB soft amplification at 8 - 20 kHz. High amplification grid: 40 Hz - 20 kHz, 10 dB amplification at 12 kHz
  • Equivalent noise level, A-weighted: Typical 26 dB(A) ref. 20 µPa (max. 28 dB(A))
  • Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
  • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
  • Typical 111 dB: SPL max, THD 10%
  • 144 dB SPL peak: Rated output impedance
  • 30: 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with XLR adapter DAD6001-BC
  • For wireless systems Min. 5 V: Max. 10 V via DPA adapter
  • With DAD6001-BC: P48 (phantom power). Operates from 12 V
  • Current consumption: Typical 1.5 mA (microphone). 3.5 mA with XLR adapter DAD6001-BC
  • Connector: MicroLock, MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 14 g (0.5 oz) including cable and MicroLock connector
  • Microphone diameter: 5.4 mm (0.21 in.)
  • Cable length: 1.2 m (3.9 ft.)
  • Cable diameter: 1.6 mm (0.06 in.)
  • Positive increase in sound pressure produces a positive voltage on the MicroLock pin
  • Temperature Range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative humidity (RH): Up to 90 percent
  • Colors: Black, beige, brown, white

4066-OP-A-F90-LH
