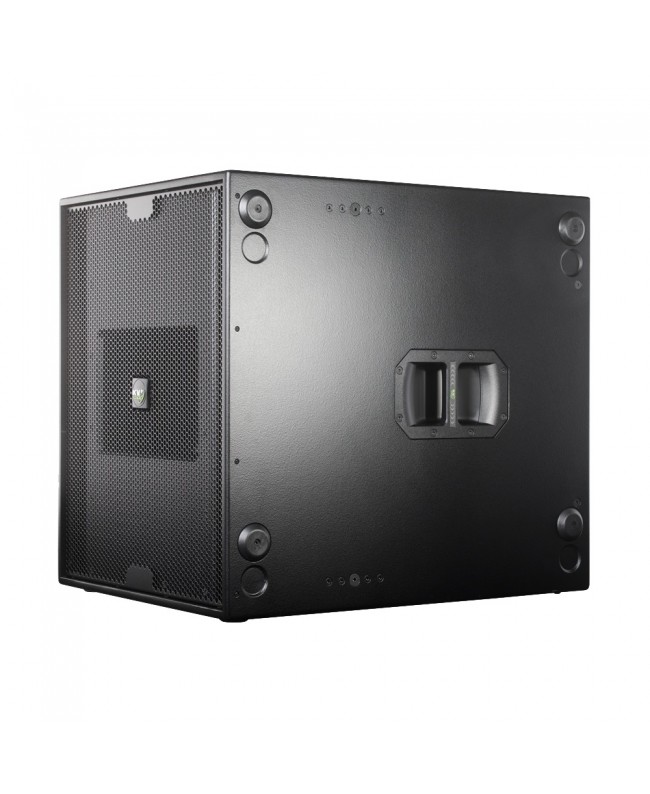

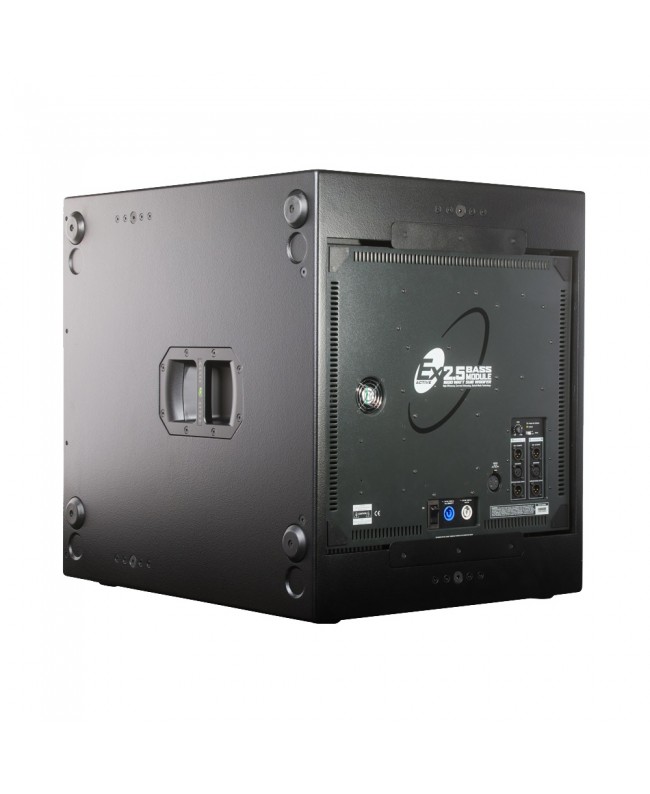

KV2 EX2.5 MkII

Features

• Professional, Baltic birch construction with wear resistant polymer coating
• 137dB sustained output 140dB peak (when used with an ES2.6)
• 1600W high efficiency, current enhancing, switching low frequency amplifier
• Speaker level AP4 output to drive one additional passive ES2.6 subwoofer
• Complete on board subwoofer management including equalization, crossover, filters, amplifier overdrive protection, output level and phase controls
• Excellent reproduction of sub bass frequencies with high transient content at high output levels
• Stereo or Mono inputs with through signal outputs and 125Hz High Pass outputs
• Two 15" high output, low frequency drivers with 4" (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures
• Four propietry side handles for simplified handling and carrying

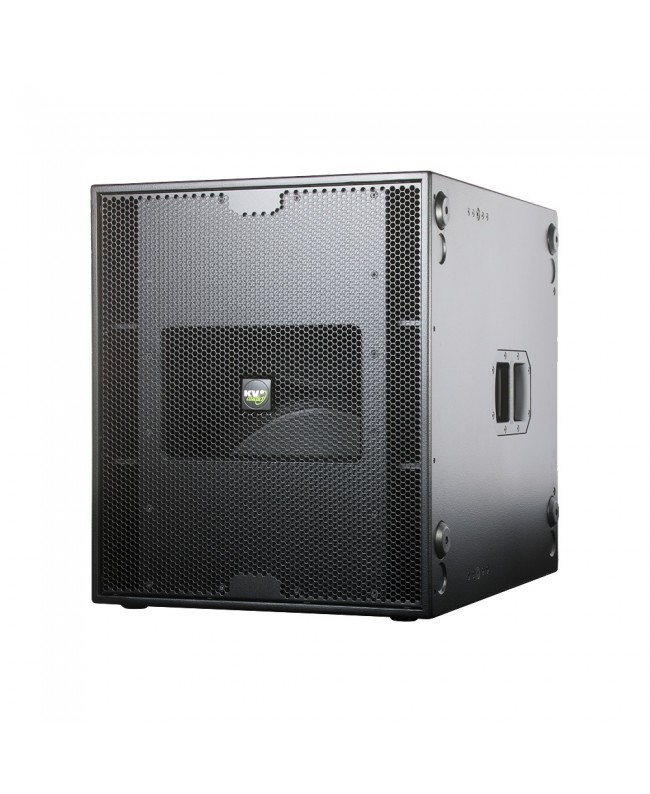

• Heavy duty front grille to work with the innovative new EX2.5 magnetic cart
• Acetyl copolymer high impact, low friction feet are located on two sides allowing vertical or horizontal set up and easy cabinet movement Feet lock in to the new ES subwoofers
• Six internal corner braces with twelve M10 suspension points M20 top hat for pole mounting applications
• LED indicators for signal present, limiter, thermal condition and power ON status

System Acoustic Performance

• Max SPL Long-term 132dB (137dB - with Slave ES2.6)
• Max SPL Peak 135dB (140dB - with Slave ES2.6)
• -3dB Response 38Hz to 125Hz
• -10dB Response 34Hz to 125Hz
• Impedance 8Ω
• Crossover Point 125Hz

Output Channels

• Number of Channels 1
• Minimum load impedance per channel 4Ω

Low Frequency Section

• Acoustic Design Twin Asymmetrical loading
• Woofer Size / Voice Coil Diameter / Design 2x 15" / 4" / Inside Outside
• Diaphragm Material Epoxy Reinforced Cellulose
• Magnet Type Ferrite

Low Frequency Amplifier Specification

• Type High efficiency, Low frequency, Current-enhancing switch mode
• Rated Continuous Power 1600W
• Distortion <0.05%
• Operating Bandwidth 34Hz to 125Hz

Signal Input

• Input Channels 2
• Input Sensitivity 1.0V RMS
• Input Impedance 20kΩ (balanced)

Signal Output

• Signal Output Channels Mid/High, Through
• Slave Speaker Output AP4

Features

• Input Level Control -6 to +6dB
• Phase 0° / 180°
• RMS Limiter YES
• Indicators Power ON/Thermal, Limiter

Power Requirements

• Power Connector Neutrik PowerCon®
• Output Power Connector Neutrik PowerCon®
• Operating Voltage 115V / 230V / 250V
• Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
• Recommended Amperage 16A 115V | 8A 230V | 8A 250V

Cabinet

• Cabinet Material Baltic birch
• Handles 4
• Pole Mount M20
• Color "Orange peeled" Matt Black or any RAL

Physical Dimensions

• Height 711.5 mm (28.0")
• Width 602.6 mm (23.72")
• Depth 750 mm (29.52")
• Weight 97 kg (214lbs)
