ChamSys MagicDMX Full DMX Kabel
  • -13%

ChamSys MagicDMX Full

159,00 €
139,00 € -13%
Steuern inbegriffen
Niedrigster Preis in den letzten 30 Tagen: 139,00 €

USB DMX Interface

Stck

Auf Anfrage lieferbar

Gratis Versand

Vergleichen

Wunschliste

ChamSys MagicDMX Full



The MagicDMX Full USB to DMX Interface offers a full universe of DMX control with RDM support and without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX. Remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ.

Features:

  • One Universe DMX output
  • 5 pin female XLR
  • USB-C connector
  • Basic electrical protection
  • LED status indicator

Overview

MagicDMX is an economic, single universe USB to DMX interface in two versions, Basic and Full. It is designed to be used with the free MagicQ software as a way to practice programming and demo the MagicQ software using actual moving lights.; Output or input one universe of DMX – not time limited. Can be used as a DMX test device.

Hardware Specifications:

  • DMX Port(s): 1
  • RDM Support: Yes
  • USB Port(s): 1 (USB-C)
  • Unlocks ‘demo mode features: No
  • Time Restriction: No
  • Software Specifications:
  • Universes: 64
  • Channels: 32,768
  • Number of fixtures: upto 32,768
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Media server support: 50 (each different content)

MagicQ features restricted when using MagicDMX Interfaces:

  • Execute Window full screen
  • Scheduled Events and Automations
  • iOS / Android Remote app
  • 10Scene Gateway and 10Scene remote app
  • Remote Control Protocol (serial, or network)
  • Web Server editing (viewing is supported)
  • Auto starting Playbacks
  • Startup in full screen / saved window positioning
  • Playback Synchronisation
  • Multi Programming including Net Sessions
  • Triggering of playbacks using DMX input
  • Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
  • Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
  • Timecode receive from ArtNet
  • Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
  • Audio input from PC/Mac sound card
  • Included Accessories:
  • Soft Shell Carry Case: 1

Cased Weights and Dimensions:

  • Width:135mm (5.3”)
  • Depth: 93mm (3.6”)
  • Height: 38mm (1.4”)

Software Specifications:

  • Universes: 64
  • Channels: 32,768
  • Number of fixtures: upto 32,768
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Media server support: 50 (each different content)

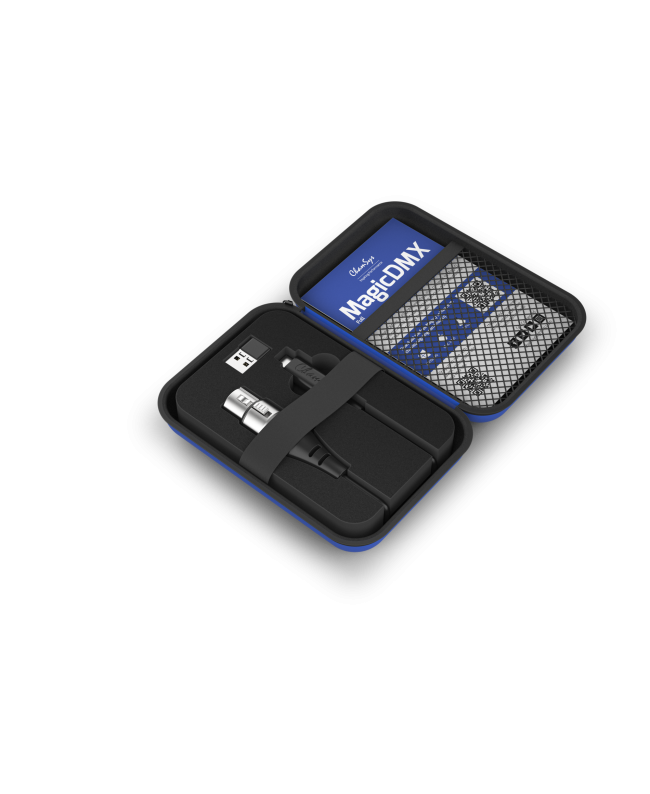

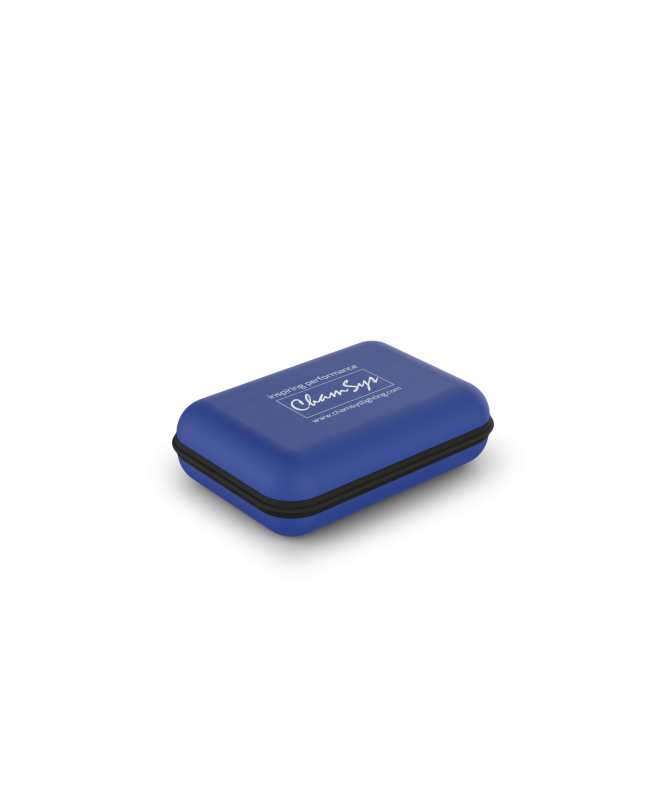

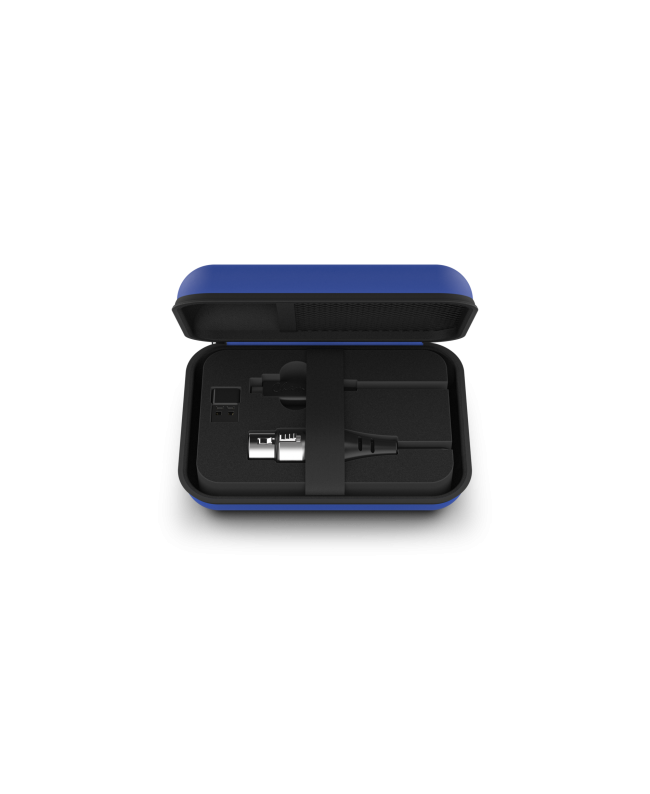

Included Accessories

  • Soft Shell Carry Case

CS300070
