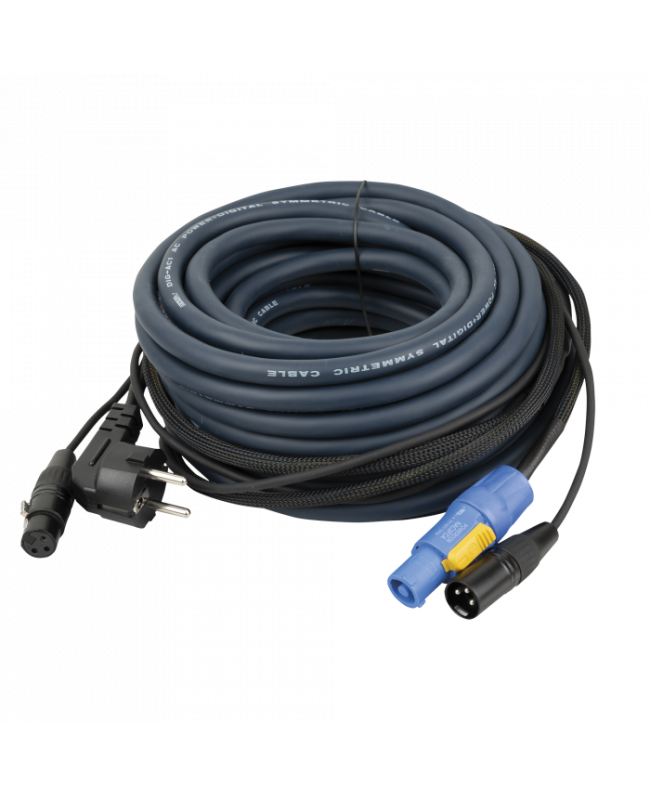

DAP FP10 - Schuko/XLR F - powerCON/XLR M - Audio / Power - 10 m

Electrical Specifications and Connections

• Rated Current (A): 16 A
• Flashover Voltage: 30 V
• Impedance: 75 Ω
• Connector 1: Schuko Plug, XLR 3P
• Connector 2: powerCON Blue, XLR 3P
• Brand Connector 1: Neutrik
• Cable Length: 10 m
• Pins: 3
• Conductor Resistance: 80 Ω/km (128.74 Ω/mile)
• Conductor Capacitance: 60 pF/m (18.29 pF/ft)
• Capacity Inner Conduct. Shield/Inner Conduct.: 78 pF/m (23.77 pF/ft)
• Outer Cable Diameter: 11 mm (0.433″)
• Outer Isolation Type: PVC

Mechanical Specifications

• Weight: 1.7 kg (3.748 lb)
• Material: Copper
• Colour: Blue

Product Properties

• Contact Type: Silver plated
• 1st Shield: Twisted
• Shield Resistance: 30 Ω/km (48.28 Ω/mile)
• Filler Material: Paper
• Conductors: 6

Thermal Specifications

• Maximum Ambient Temperature: 60 °C (140 °F)
• Minimum Ambient Temperature: -20 °C (-4 °F)
