KV2 COMPEX Effetti & Processori di segnale

KV2 COMPEX

1.572,00 €
Tasse incluse

Stereo analog dynamic control unit

Pz

Ordinabile su richiesta

Spedizione gratuita

GFP

Pianteremo 1 albero e proteggeremo parte di una foresta pluviale per ogni ordine effettuato sul nostro sito web.

See our impact in real-time
Confrontare

lista dei desideri

KV2 COMPEX

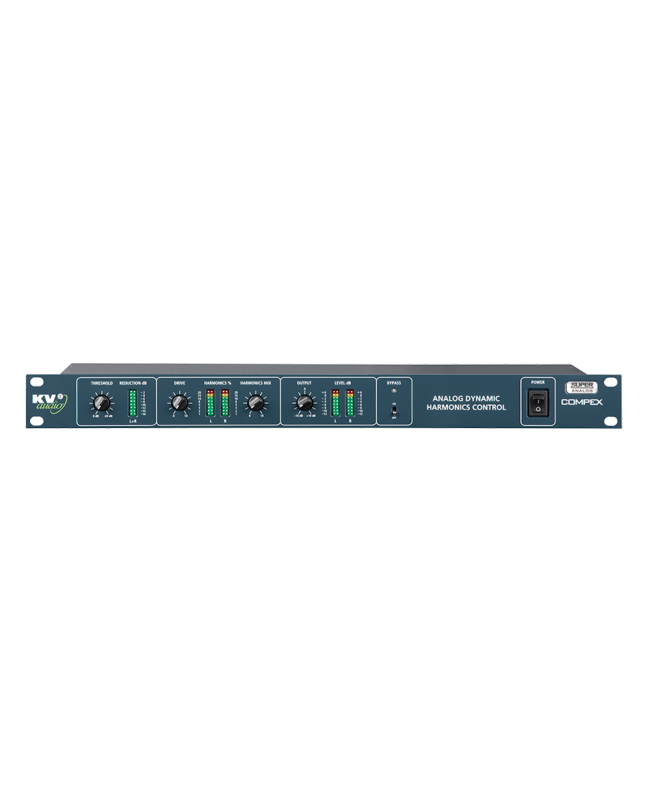

COMPEX - Dynamic Harmonics Control

The Compex is a Stereo Analog Dynamic Control unit designed to optimise performance of poor quality recordings for playback at high volume levels. It features an optical audio compressor and very high quality harmonics expander and true remote bypass feature.

Features

  • 1U 19" rack Analog Dynamic processor
  • High quality opto-compressor with level dependent filter
  • Compressor reduction bargraph level meter
  • High quality harmonics expander
  • Harmonics bargraph level meters
  • Output bargraph level meters
  • True remote bypass feature

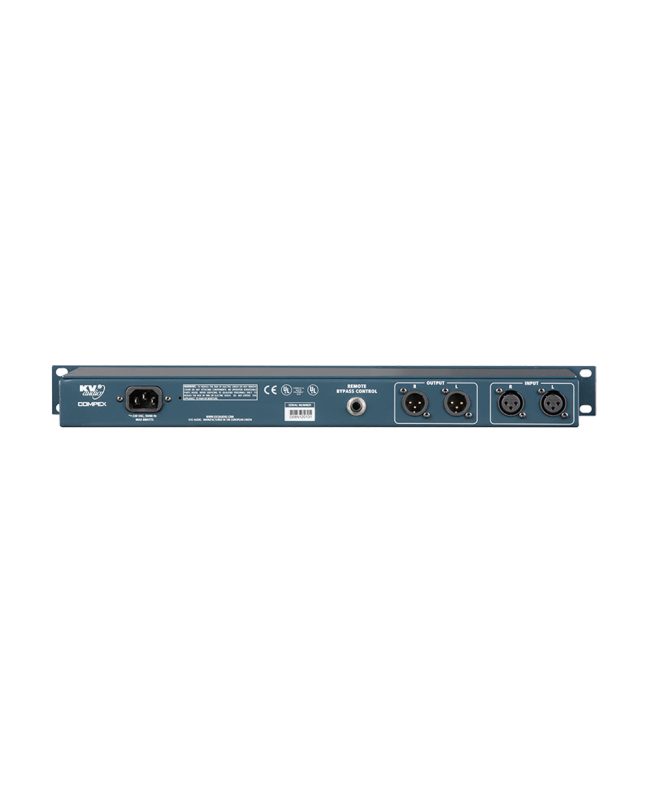

  • XLR balanced inputs and outputs with Line Drivers

Applications

  • Designed as a tool to optimise recordings for playback at high volume levels
  • Fixed Installations
  • Disco clubs
  • Use with any KV2 Audio system

Specifications

System Acoustic Performance

  • -3dB Response: 20Hz to 100kHz
  • Dynamic Range: >130dB
  • Channel Crosstalk: 90dB
  • Signal to Noise Ratio: 110dB
  • Total Harmonic Distortion: 0,001%

Signal Input

  • Input Channels: 2
  • Input Impedance: 20kΩ (balanced)
  • Line input: XLR

Signal Output

  • Signal Output Channels: 2
  • Output Impedance: 50Ω
  • Through Signal Output: XLR

Features

  • Input Level Control: -10 / +10dB
  • System setup: Bypass (remote controlled)
  • Harmonics Drive, 0 to 10
  • Equalization: Level dependent
  • Indicators: 2x 2 Level LED bar graphs

Compressor

  • Threshold ∞ to -20dB
  • Ratio 1:3
  • Indicactors: 1x LED bar graphs

Harmonics

  • Range: 0 to 10

Power Requirements

  • Power Connector: IEC 320
  • Operating Voltage: 115V / 230V
  • Operating Voltage Range: 90 to 130V@60Hz | 180 to 260V@50Hz

Physical Dimensions

  • Height: 44 mm (1.7")
  • Width: 482.6 mm (19.0")
  • Depth: 198 mm (7.8")
  • Weight: 2.7 kg (5.96lbs)


KVV987289
