QUIK LOK CM/826 BK AMX DMX Kabel + Stromversorgung | 100m Hybridkabel Strom- und DMX-Signal
  • -21%

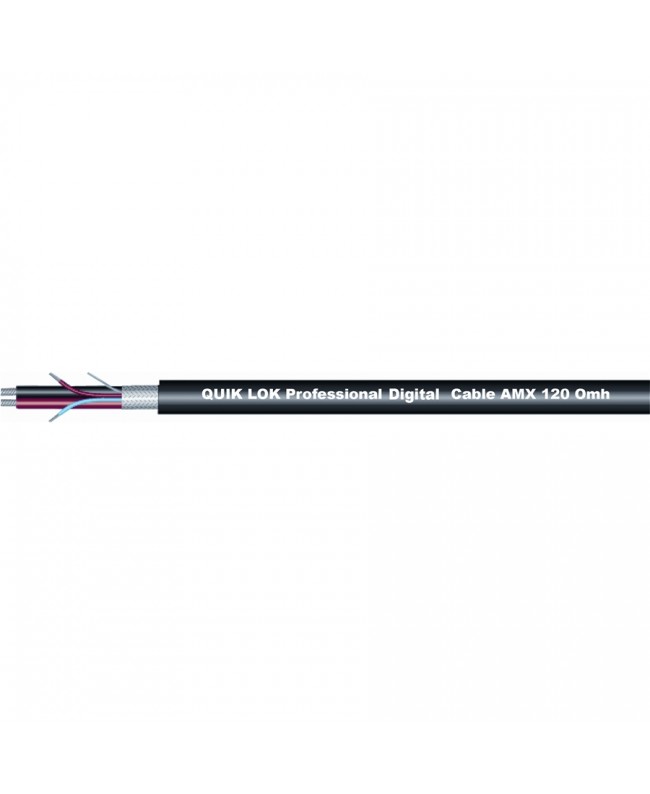

QUIK LOK CM/826 BK AMX DMX Kabel + Stromversorgung | 100m


59,50 €
47,50 € -21%
Steuern inbegriffen
Niedrigster Preis in den letzten 30 Tagen: 47,50 €

AMX 120 Ohm digital connection 100m cable (combines DMX and Power signals)


Stck

Verfügbar

Lieferung

Du möchtest Deine Bestellung bis Montag, 25/05/2026? Bestelle innerhalb von 7 Stunden und 3 Minuten

Abholung In-Store


Wunschliste

QUIK LOK CM/826 BK AMX DMX Kabel + Stromversorgung | 100m



In all digital applications, whether handling digital audio signals or transporting control signals for DMX systems, the cable represents one of the most important components

The cable is the medium through which the sound of our instrument reaches its destination, which is why its quality is as important as that of the instrument we use.

It is useless to worry about the quality of our instrumentation and neglect the connecting link that transfers sound.

All of our cables have as a fundamental characteristic an absolutely transparent and noise-free signal transport, of course they can change electrical and mechanical characteristics but always above all emerges quality, transparency and depth of sound.

Specs

  • Inner conductor size: 2 x 0.34 mm² 2 DMX + 2 x 2.00 mm² 2 POWER
  • Insulation: DMX: Dual colour XLPE Polythene Ø 1.20 mm -
  • POWER: Dual colour PVC Ø 2.80 mm
  • Shielding: Drain wire + served alufoil shield (100% coverage) + cotton
  • Outer jacket: PVC Polyvinyl Chloride
  • Overall diameter: 7.50 mm
  • Weight: 80 Kg (177.78 lbs) per 1000 m (3280 ft)
  • Impedance: 120 Ohm
  • Conductor resistance at 20°: DMX: >60 Ohm/Km - POWER: >40 Ohm/Km
  • Conductor/shielding capacitance: 104Pf/m
  • Conductor/conductor capacitance: 66Pf/m
  • Insulation resistance at 20°: DMX: <100000 Mohm/Km - POWER: <6 Mohm/Km
  • Inductance: >0.50 mH/Km
  • Working temperature: -25° / +70°

20.00088

Technische Daten

Länge
100.00 m
