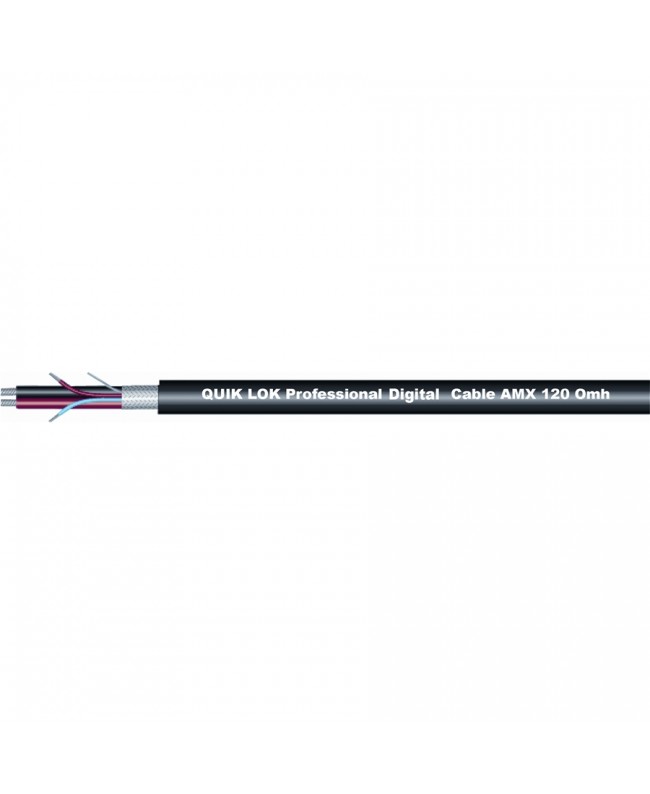

QUIK LOK CM/826 BK AMX DMX cable + power supply | 100m


€59.50
€47.50 -21%
Tax included
Lowest price within the last 30 days: €47.50

AMX 120 Ohm digital connection 100m cable (combines DMX and Power signals)


Qty

In Stock

Delivery

Do You want Your order by Monday, 25/05/2026? Order within 6 hours and 36 minutes

In Store Pick Up


wishlist

QUIK LOK CM/826 BK AMX DMX cable + power supply | 100m



In all digital applications, whether handling digital audio signals or transporting control signals for DMX systems, the cable represents one of the most important components

The cable is the medium through which the sound of our instrument reaches its destination, which is why its quality is as important as that of the instrument we use.

It is useless to worry about the quality of our instrumentation and neglect the connecting link that transfers sound.

All of our cables have as a fundamental characteristic an absolutely transparent and noise-free signal transport, of course they can change electrical and mechanical characteristics but always above all emerges quality, transparency and depth of sound.

Specs

  • Inner conductor size: 2 x 0.34 mm² 2 DMX + 2 x 2.00 mm² 2 POWER
  • Insulation: DMX: Dual colour XLPE Polythene Ø 1.20 mm -
  • POWER: Dual colour PVC Ø 2.80 mm
  • Shielding: Drain wire + served alufoil shield (100% coverage) + cotton
  • Outer jacket: PVC Polyvinyl Chloride
  • Overall diameter: 7.50 mm
  • Weight: 80 Kg (177.78 lbs) per 1000 m (3280 ft)
  • Impedance: 120 Ohm
  • Conductor resistance at 20°: DMX: >60 Ohm/Km - POWER: >40 Ohm/Km
  • Conductor/shielding capacitance: 104Pf/m
  • Conductor/conductor capacitance: 66Pf/m
  • Insulation resistance at 20°: DMX: <100000 Mohm/Km - POWER: <6 Mohm/Km
  • Inductance: >0.50 mH/Km
  • Working temperature: -25° / +70°

20.00088

Data sheet

Length
100.00 m
