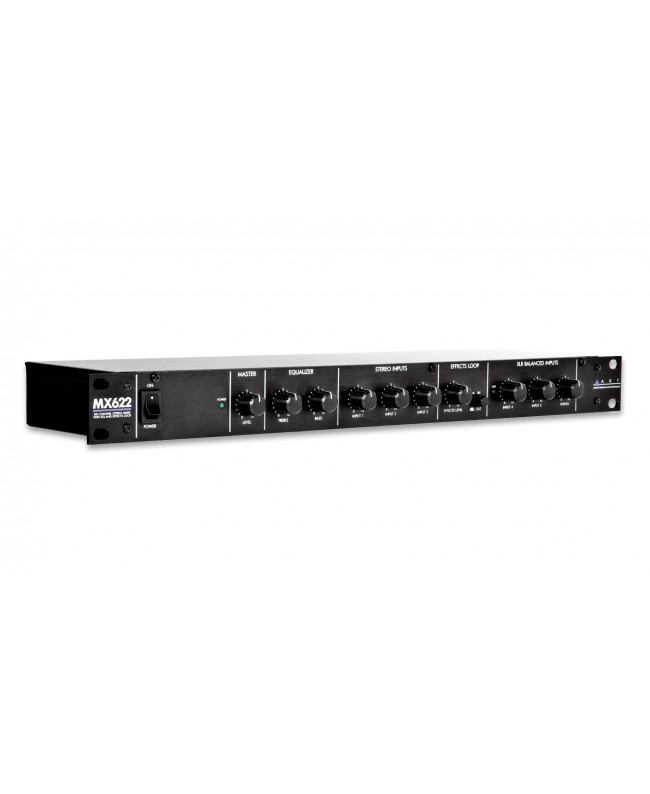

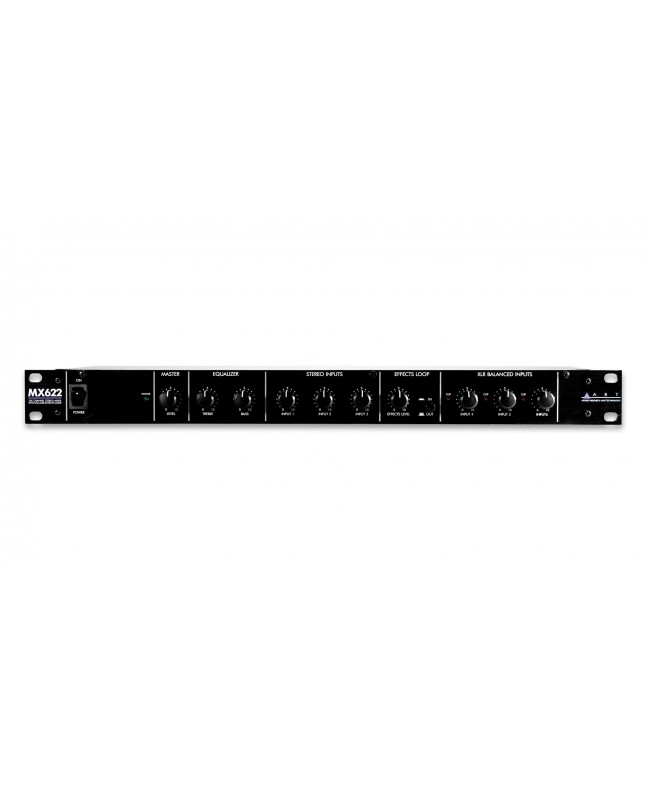

ART MX622

• 3 Symmetrische Mic/Line Eingänge
• Level Control und Clip LED
• Phantom Power
• Separater Stereo Record Ausgang
• Effekt Loop

Specifications

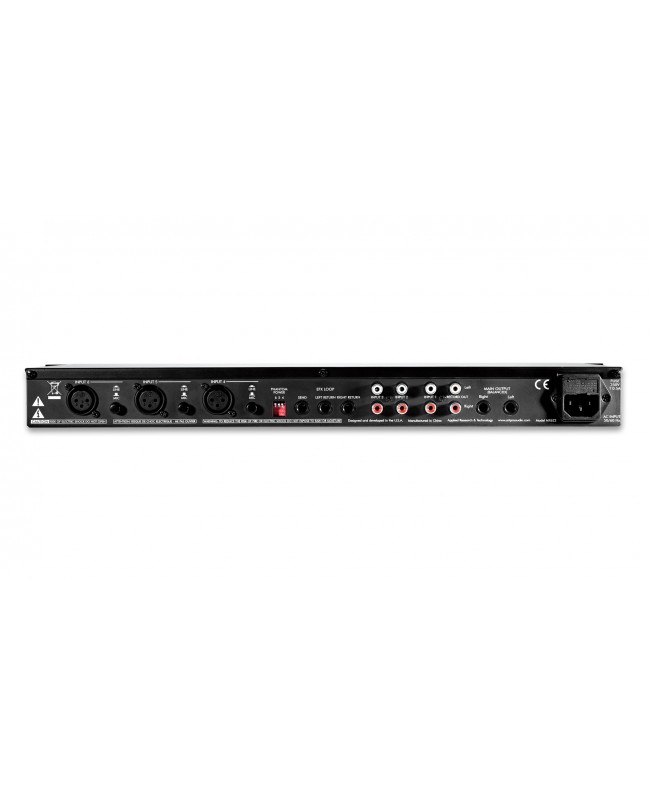

• Input Connections: XLR-F balanced (x3) | 1/4-inch unbalanced (x2) | 3 pairs stereo RCA (6 total)
• Output Connections: TRS balanced 1/4-inch (x2) | 1/4-inch unbalanced (x1) | RCA (x2)
• Input Impedance: 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns
• Output Impedance: 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output
• Total Harmonic Distortion: .01% Typical
• Signal to Noise Ratio: > 90dB typical
• Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
• Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
• Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
• Phantom Power: +15Volts DC (regulated / low noise)
• Power Requirements: USA – 105 to 125 VAC / 50-60Hz, 15 W typical
• Equalizer Range: +/-12dB @ 100Hz & 10kHz
• Dimensions: 44.5mm x 483mm x 152mm
• Weight: 2.8 kg
