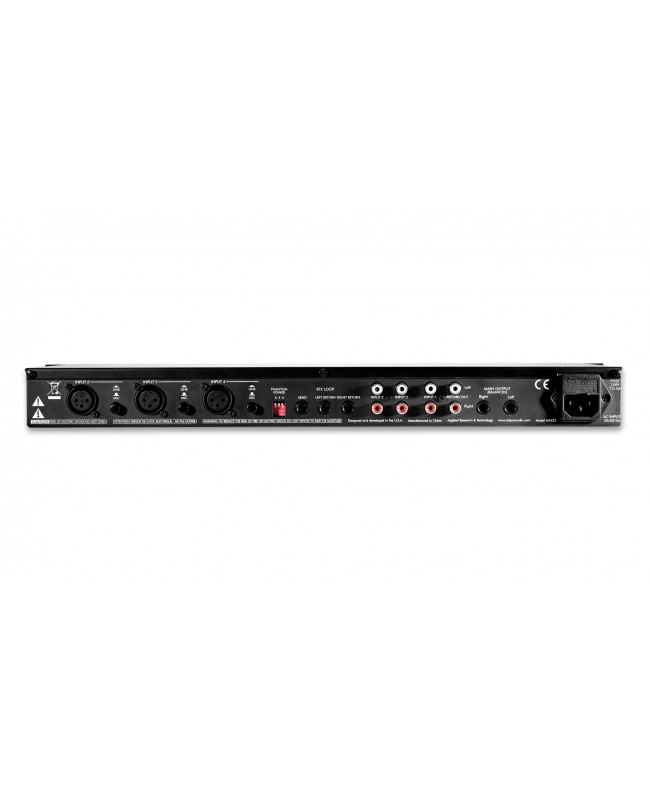

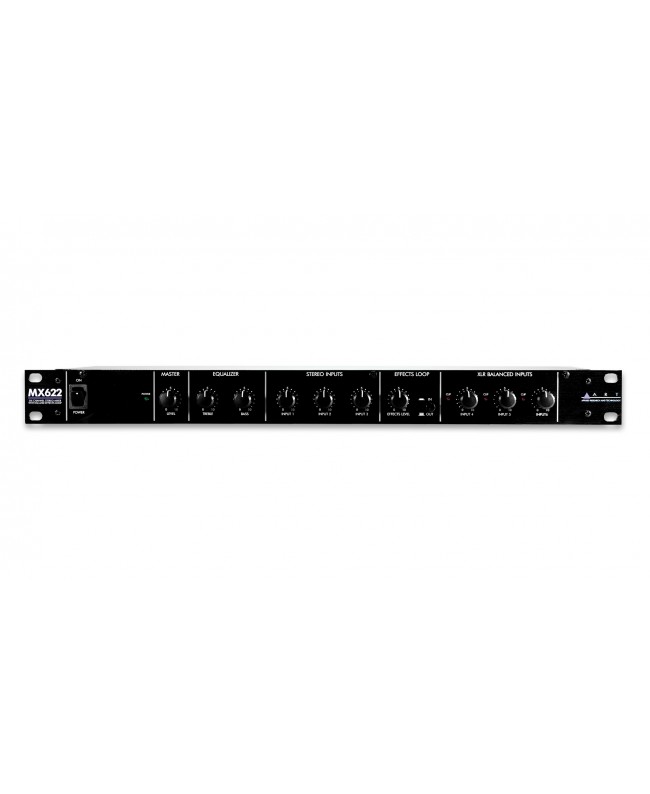

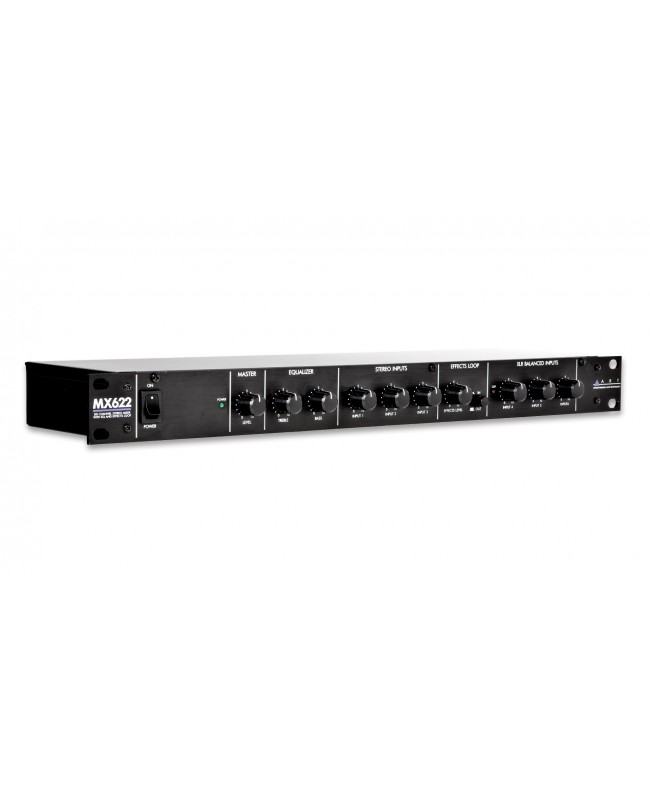

ART MX622 Installation Mixers

ART MX622

€30.50
Tax included

6 Channel (1U) Stereo Mixer w/ EQ/EFX Loop

Out of Stock

Compare

wishlist

ART MX622



The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Key Features

  • Three Balanced XLR Inputs Switchable Mic/Line Level
  • Level Control and Clip Indicators
  • Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
  • Separate Stereo Record Outputs
  • Three Stereo RCA Inputs with Separate Level Controls
  • Selectable 15-volt Phantom Power for Mic Channels
  • Versatile Two-Band Master EQ
  • Effects Loop with Level Independent Level Control

Specifications

  • Input Connections: XLR-F balanced (x3) | 1/4-inch unbalanced (x2) | 3 pairs stereo RCA (6 total)
  • Output Connections: TRS balanced 1/4-inch (x2) | 1/4-inch unbalanced (x1) | RCA (x2)
  • Input Impedance: 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns
  • Output Impedance: 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output
  • Total Harmonic Distortion: .01% Typical
  • Signal to Noise Ratio: > 90dB typical
  • Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
  • Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
  • Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
  • Phantom Power: +15Volts DC (regulated / low noise)
  • Power Requirements: USA – 105 to 125 VAC / 50-60Hz, 15 W typical
  • Equalizer Range: +/-12dB @ 100Hz & 10kHz
  • Dimensions: 44.5mm x 483mm x 152mm
  • Weight: 2.8 kg
