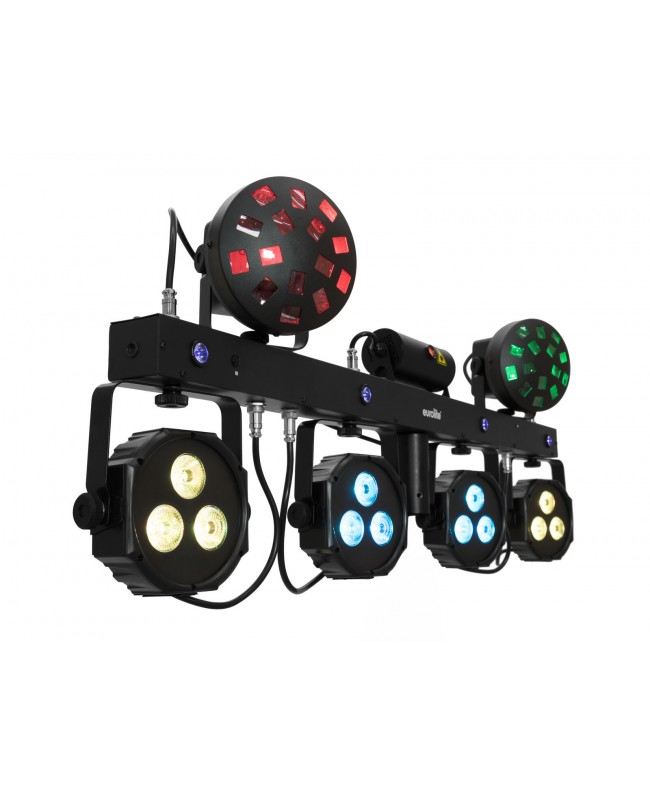

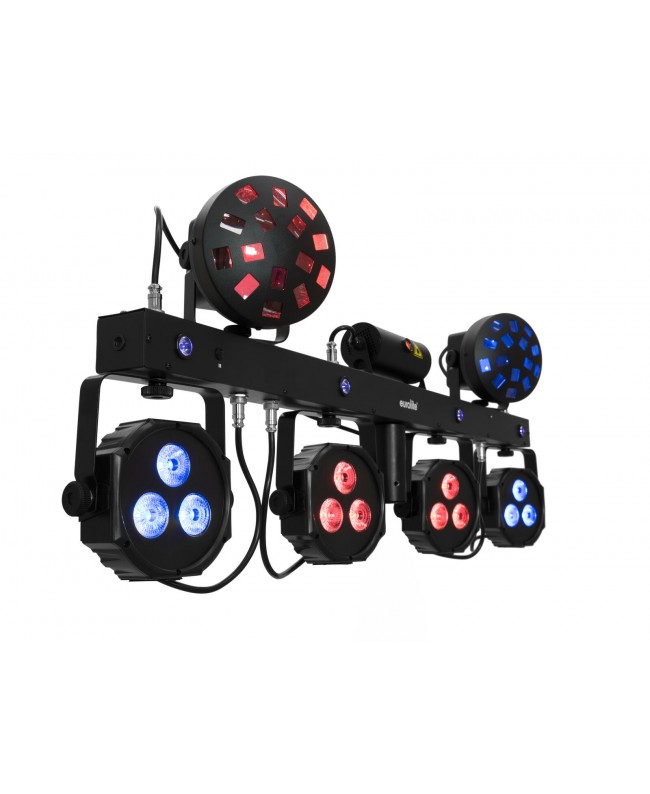

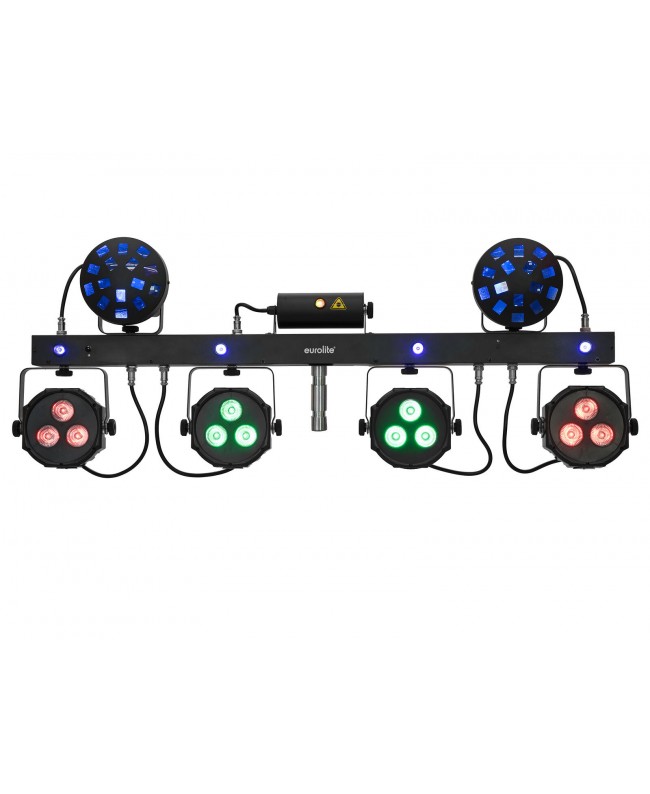

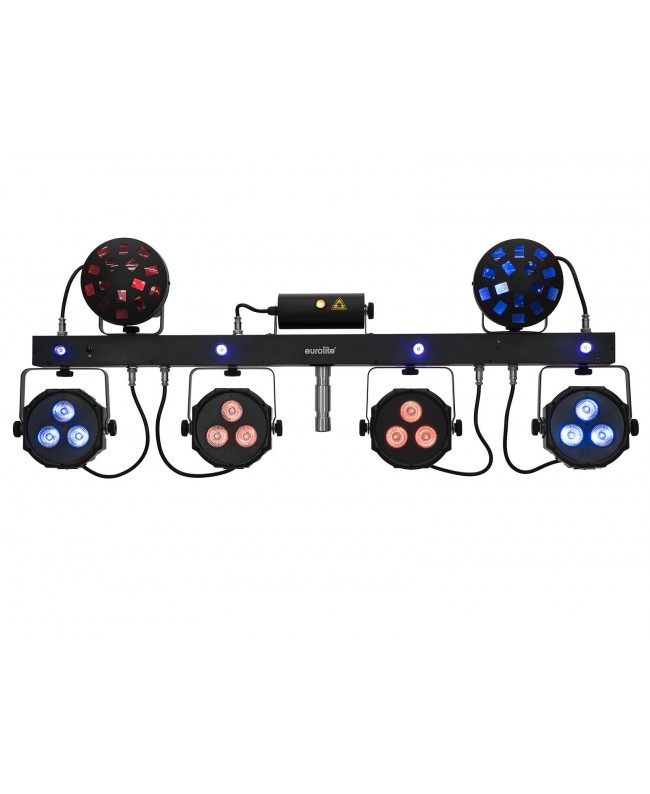

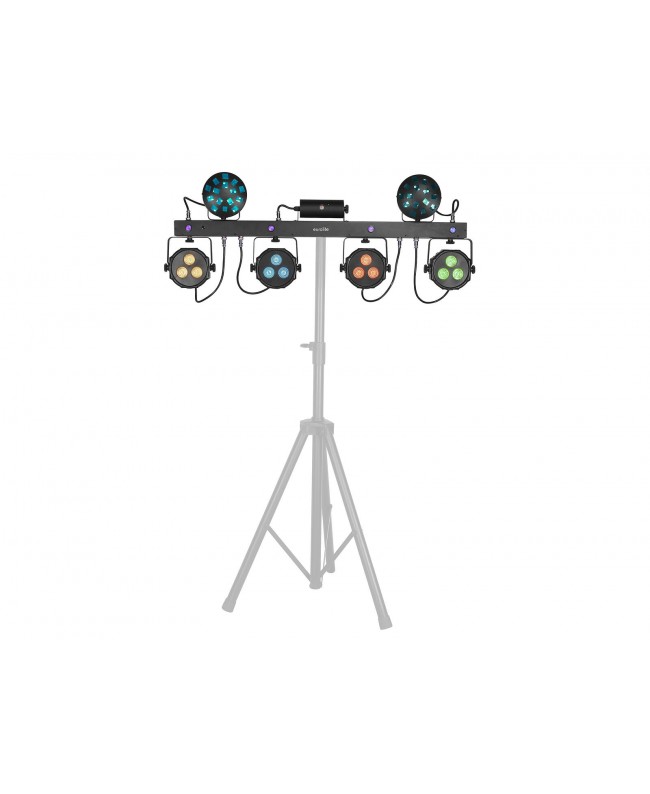

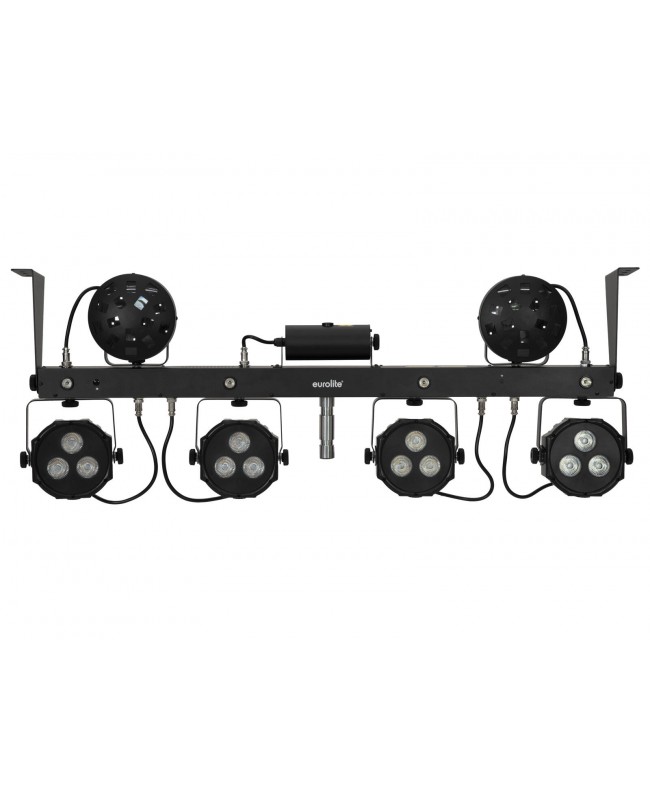

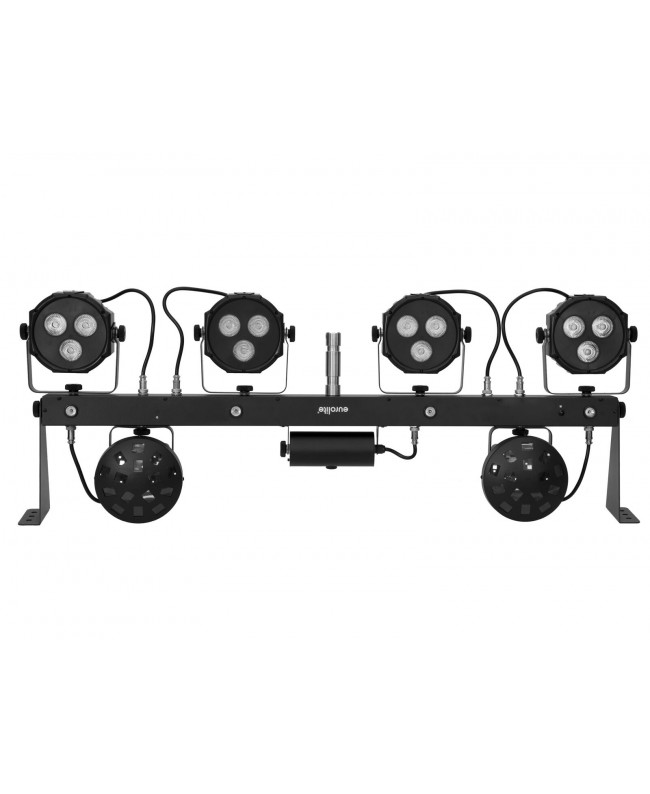

Eurolite LED KLS Laser Bar Next FX Light Set

Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag

• 2 laser diodes project hundreds of red and green laser beams
• 2 rotating derbies for mirror ball effects
• Compact lightweight

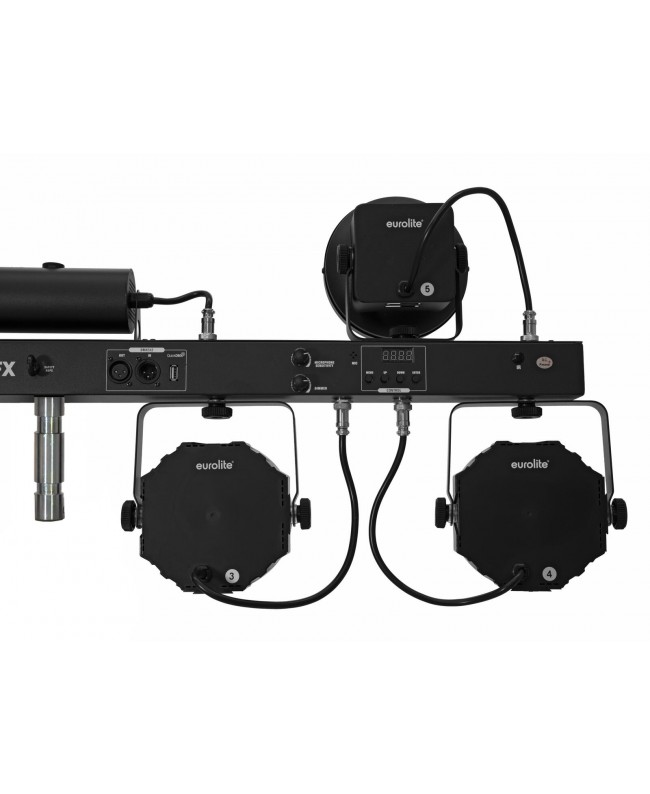

• Crossbar with integrated DMX control unit and TV spigot for tripod installation
• For application areas such as: Wedding/gala/events; Clubs/dancing school; mobile djs / entertainer; small rental
• When fog is used, this effect becomes especially attractive
• 26 integrated show programs
• Dimmer electronic; color blend stepless; program selection
• Control via DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
• TV spigot

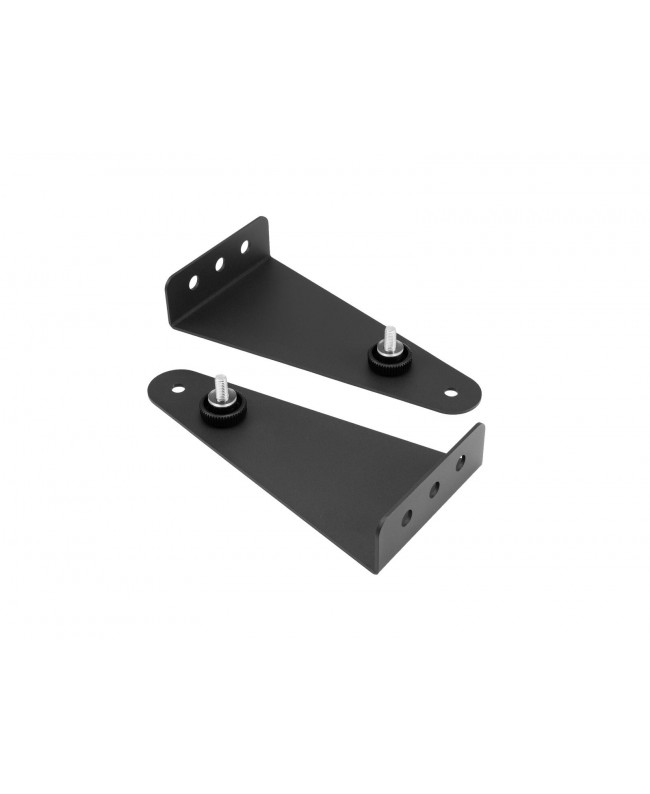

• With Mounting bracket
• Mains input and output for power linking up to 8 units
• Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
• Application possibility: On stand

laser

Laser class 2M

• does not require additional protective measures or appointment of a laser safety officer

spotlight

• 3 powerful LEDs 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
• 4 spots controlled separately
• With a beam angle of 7°

light effect

• 4 powerful LEDs 3 W high-power R/G/B/WW
• lighting effects controlled separately
• Multi beam effect; fan effect; flower effect

bar

• 4 powerful LEDs 1,5 W high-power ultra violet (UV)
• LEDs controlled separately
• UV effect; Strobe effect

Package contents

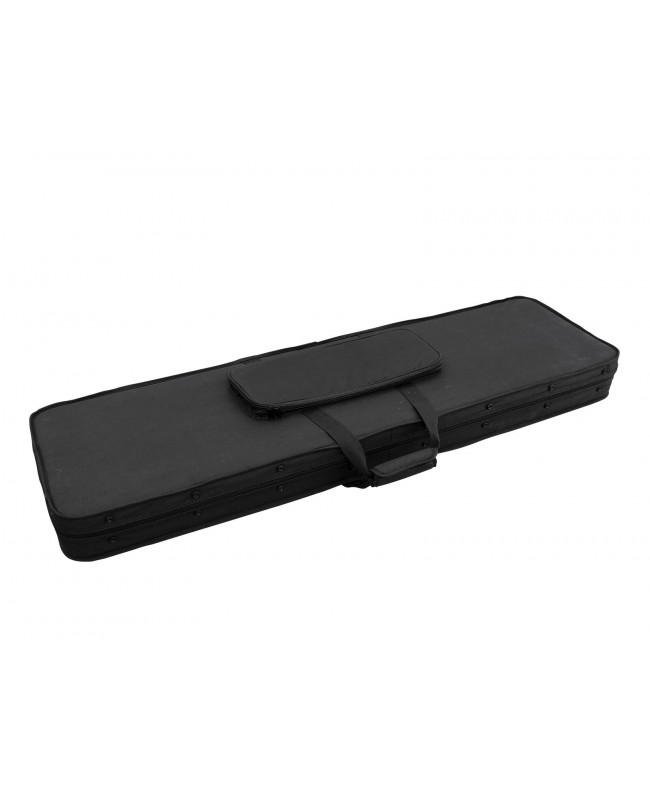

• 1 x device, 1 x user manual, 1 x power cord, 1 x bag, 1 x declaration of conformity, 1 x remote control, 2 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)

Technical specifications

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 90 W
• IP classification: IP20
• Protection class: Protection class I

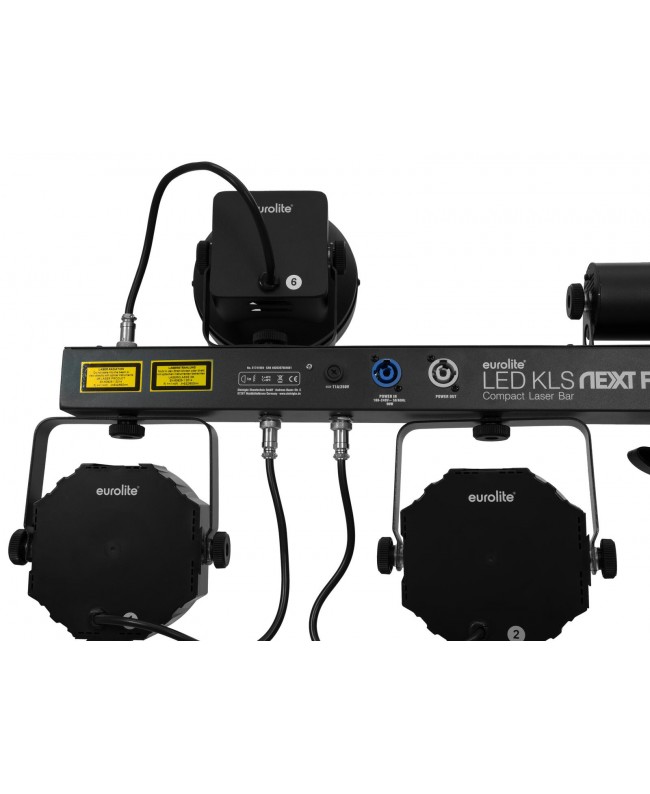

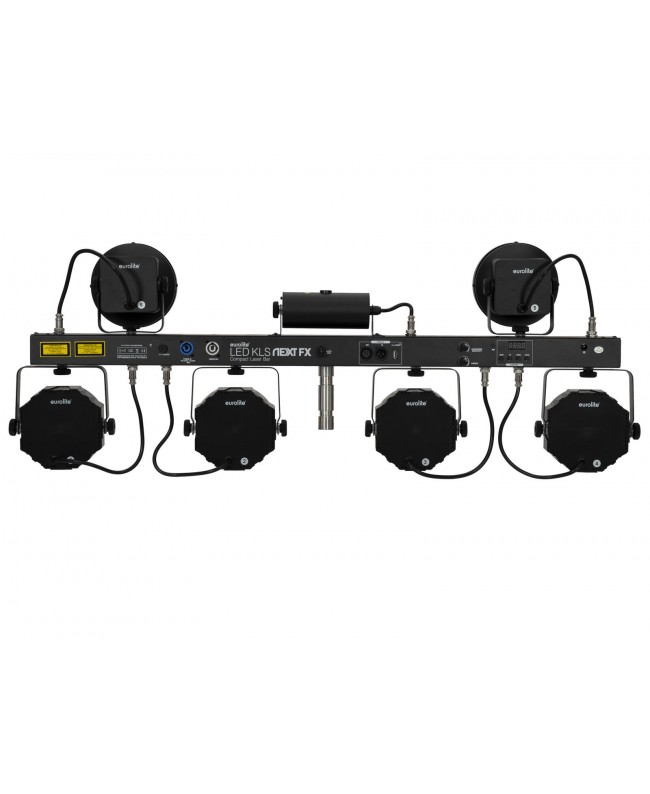

• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Cable length: 3 m
• Power output: 1 x P-Con (gray), mounting version
• Fuse: T 1 A Fuse replaceable
• Lamp type: LED lamp
• DMX channels: 6; 8; 11; 21; 25; 29
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: DMX; stand-alone; Sound to light via Microphone; IR remote control; QuickDMX via USB (optional); Wireless footswitch (optional)
• Preprogrammed in: Light Captain; EASY SHOW 2; EASY SHOW 3
• Housing color: Black
• Attachment system: TV spigot Ø 28mm
• 2x Mounting bracket
• Display type: 3 digit 7-segment LED display
• Dimensions: Width: 1,11 m
• Depth: 15 cm
• Height: 41 cm
• Weight: 10,50 kg
• Noise classification: Class 2 (slight noise)

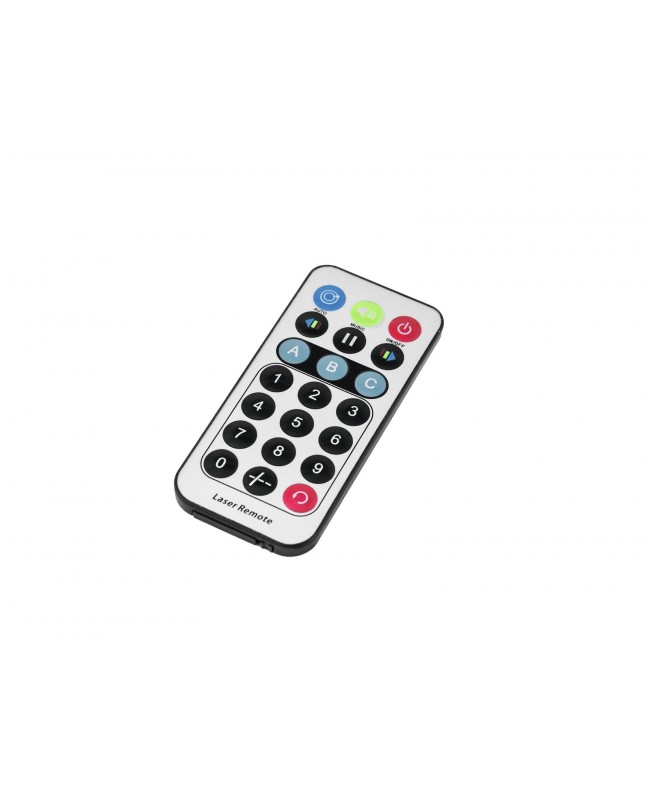

• Remote control
• Battery: Button cell 3.0 V CR2025 lithium manganese built-in

Laser

• Laser class: 2M
• Laser color: R/G
• Laser module: Red (R) 100 mW 650nm
• Green (G) 30 mW 532nm
• Light effect
• LED: 4 x 3 W high-power R/G/B/WW

Spotlight

• LED: 3 x 4 W high-power 4in1 QCL RGB/WW (homogenous color mix)
• Beam angle: 7°
• Beam angle (1/2 peak): Spot 7°
• Beam angle (1/10 peak): Spot 20°

Bar

• LED: 4 x 1,5 W high-power ultra violet (UV)
• Flash rate: 0 - 30 Hz
