Showtec Goliath

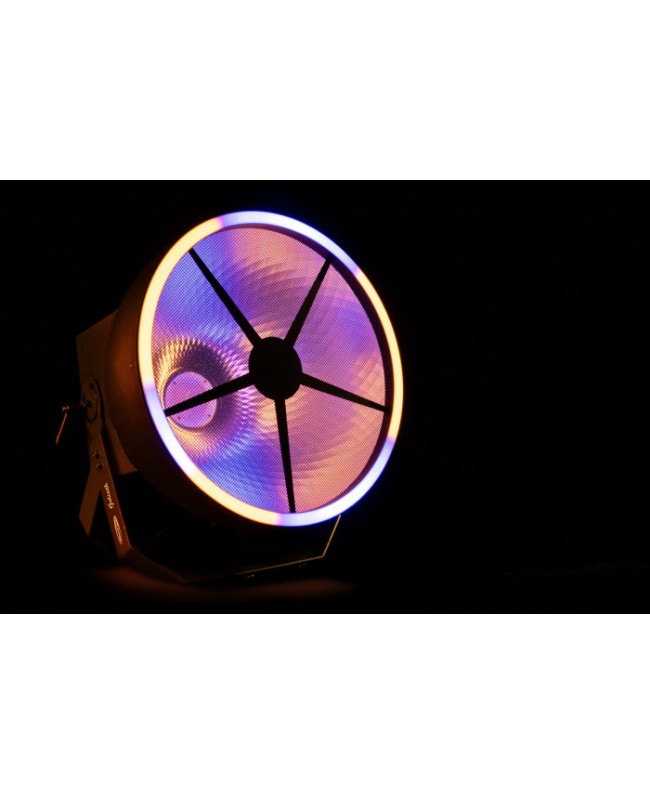

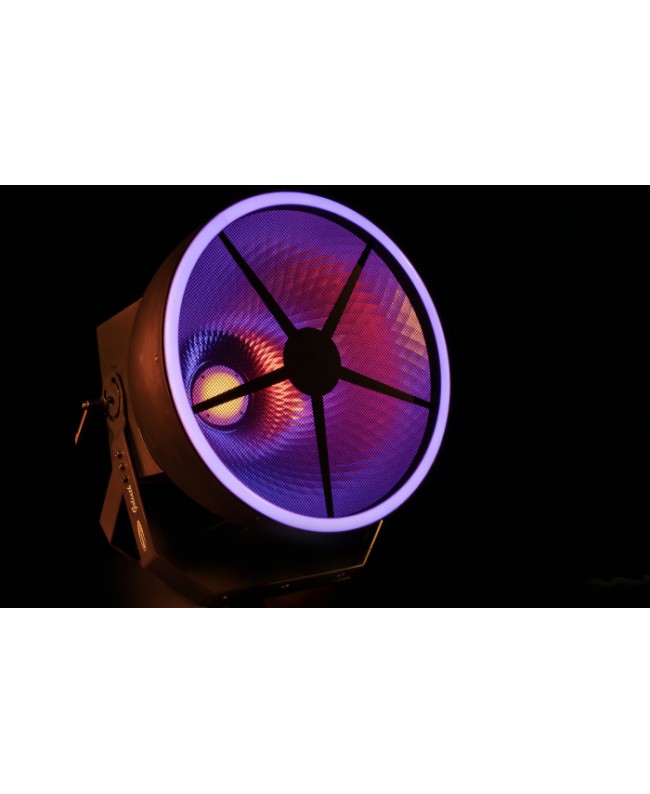

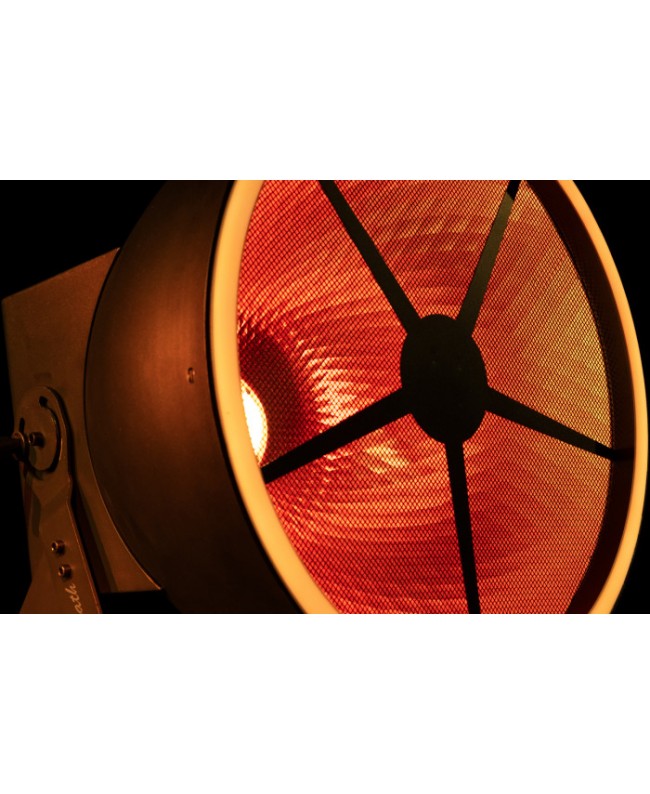

Showtec Goliath is a retro light effect that combines a powerful 300 W warm white LED with a built-in 20 W amber LED, as well as a dual RGB LED ring and a central RGB LED. The 20W amber LED and the 300W warm white LED replicate the classic tungsten dimmer effect, offering a nostalgic retro feel. Depending on the selected mode, the warm white and amber LEDs can be controlled separately or as a single “tungsten channel”.

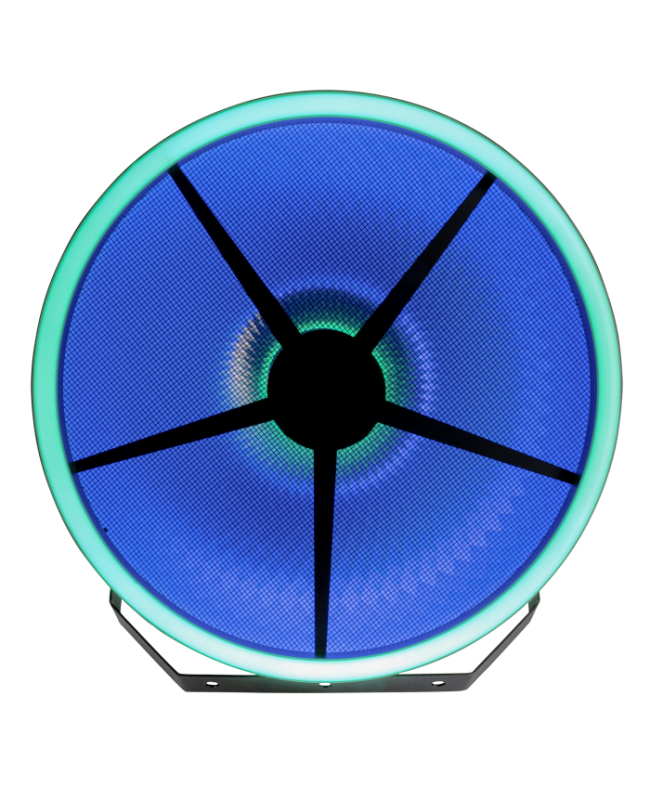

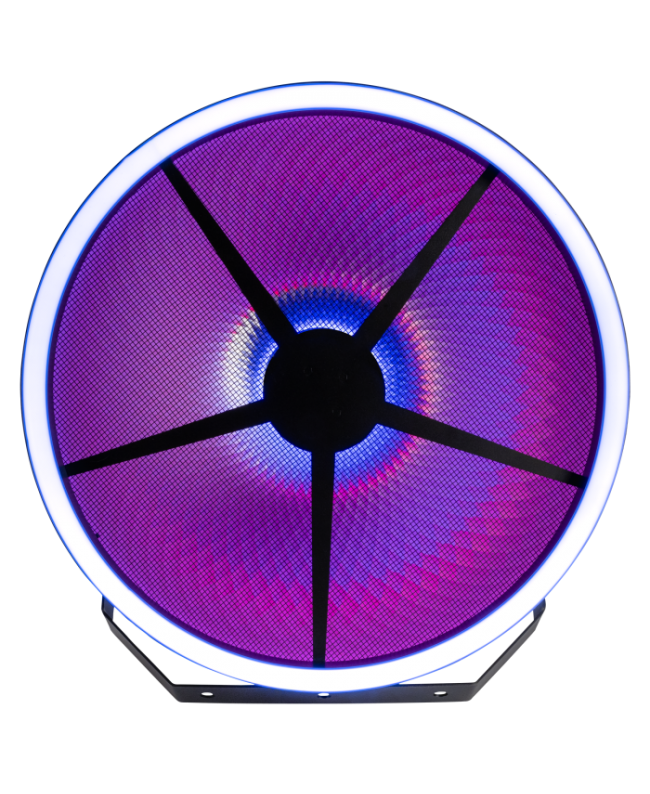

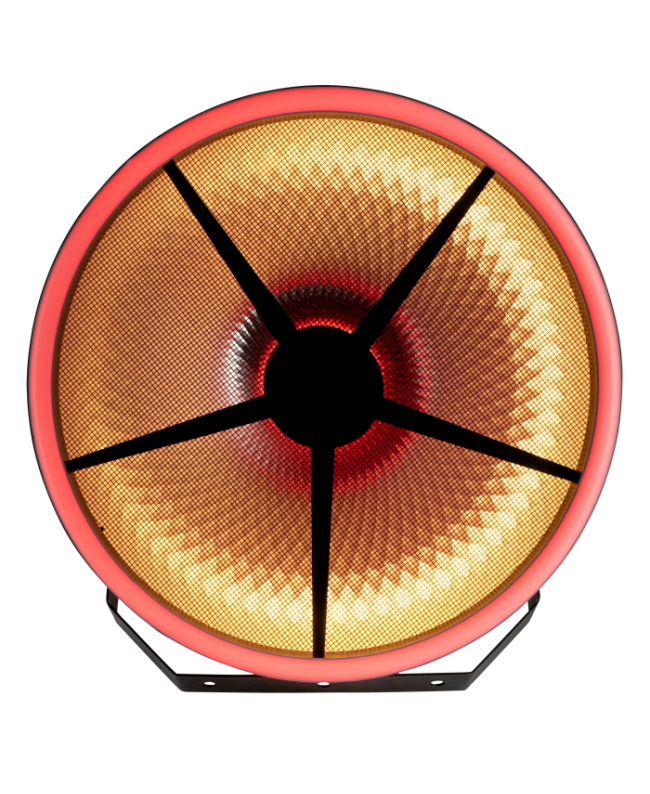

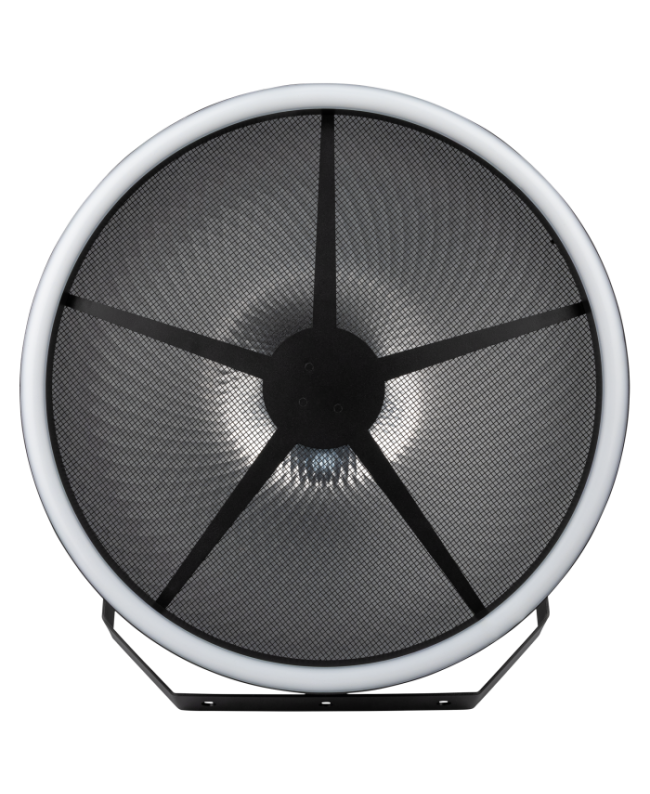

Behind the central circular plate there are 24 RGB LEDs that illuminate the center of the reflector. Around this, a large circle of 120 RGB LEDs illuminates the edges of the reflector. A second ring of 120 RGB LEDs on the outer edge faces forward. Each RGB LED can be controlled individually, offering almost endless possibilities for effects.

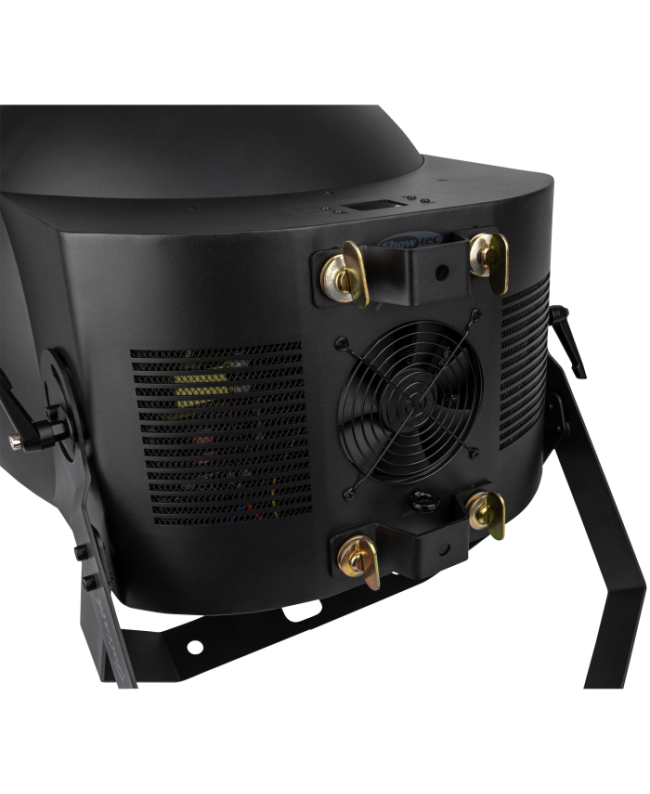

Goliath supports several control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual, with different personalities ranging from 4 to 793 channels. It has a double bracket for both hanging and floor installations. In addition, the quick-lock mounting points on the back allow for easy attachment to a truss using the included brackets. A Schuko to Power Pro True cable is included.

  • 320 W LED with retro tungsten dimming effect
  • 264 individually controllable RGB LEDs
  • Supports DMX, Art-Net, sACN, RDM, master/slave and manual modes

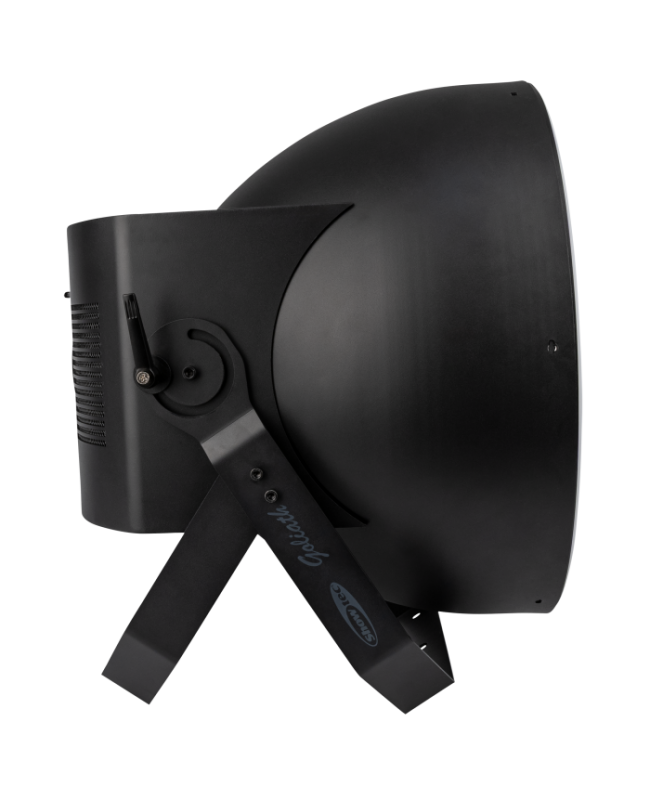

  • Double bracket for hanging or floor installations
  • Channel range from 4 to 793 for versatile configurations

Technical data

Source

  • Type of light source LED
  • Light source 1 - quantity 1
  • Light source 1 - power 320 W
  • Light source 2 - quantity 264
  • Light source 2 - power 0.5 W
  • LED color WW, RGB
  • Refresh rate (max.) 6 kHz

Control and programming

  • Control modes Art-Net, integrated program, DMX, RDM, sACN, standalone
  • DMX channels 4, 5, 14, 21, 433, 793
  • Protocols Art-Net, DMX, RDM, sACN
  • OLED display
  • Dynamic effects
  • Dimmer 0-100%

Connections and electrical properties

  • Power supply 100-240 V AC 50/60 Hz
  • Power consumption 335 W
  • Power connection Power Pro Blue
  • Power connection Power Pro Gray Output

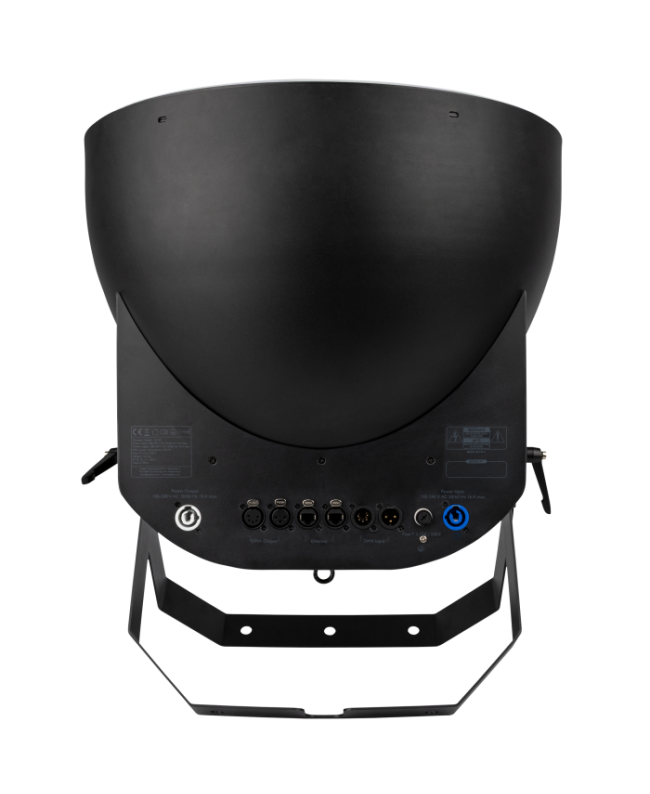

  • DMX input RJ45, XLR 3P, XLR 5P
  • DMX output RJ45, XLR 3P, XLR 5P

Mechanical properties

  • Length (mm) 412 mm
  • Height (mm) 490 mm
  • Width (mm) 490 mm
  • Weight 12.5 kg
  • IP Rating IP20 (indoor use only)
  • Housing Metal
  • Color Black

Product Features

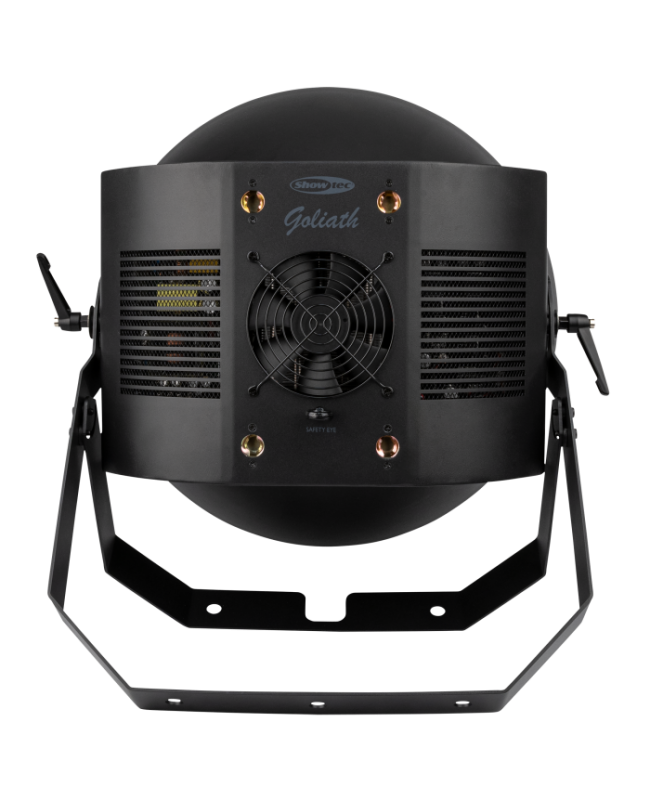

  • Active cooling

Rigging

  • Mounting Options Bracket, Quick-lock

Thermal Properties

  • Maximum ambient temperature 40 °C (104 °F)
  • Minimum operating temperature -5 °C (23 °F)

Product compliance

  • Energy class T/B/D

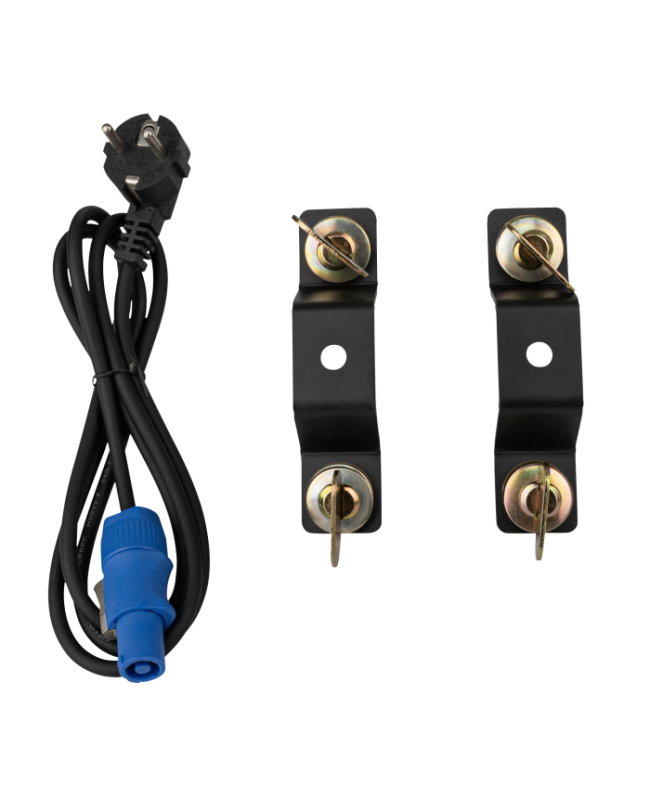

Included parts

  • Cables included
  • Power Pro cable
  • Mounting hardware included
  • 2x Quick-Lock bracket
