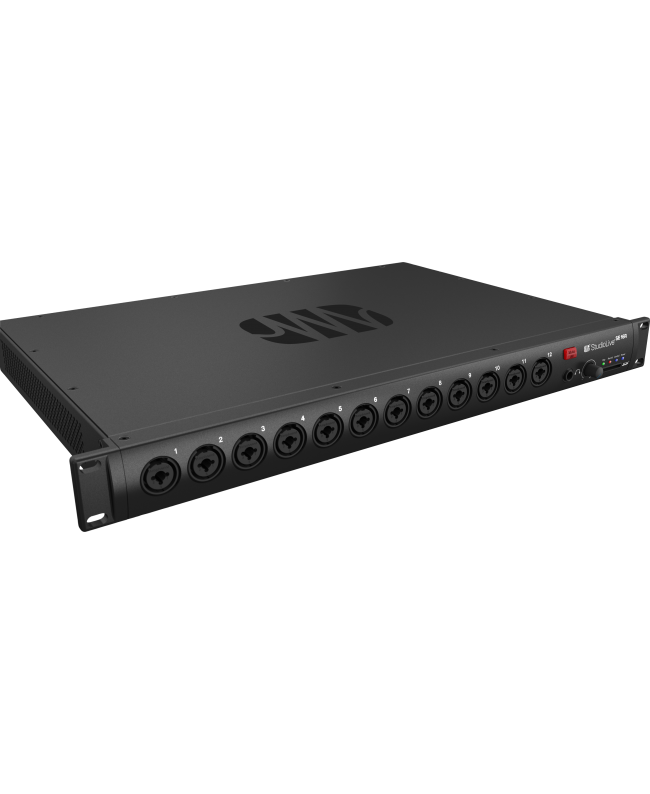

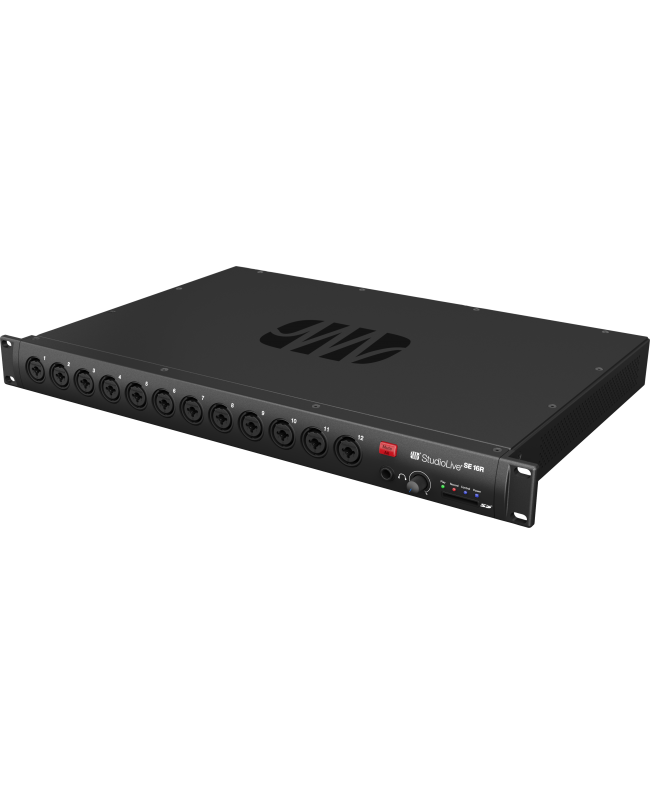

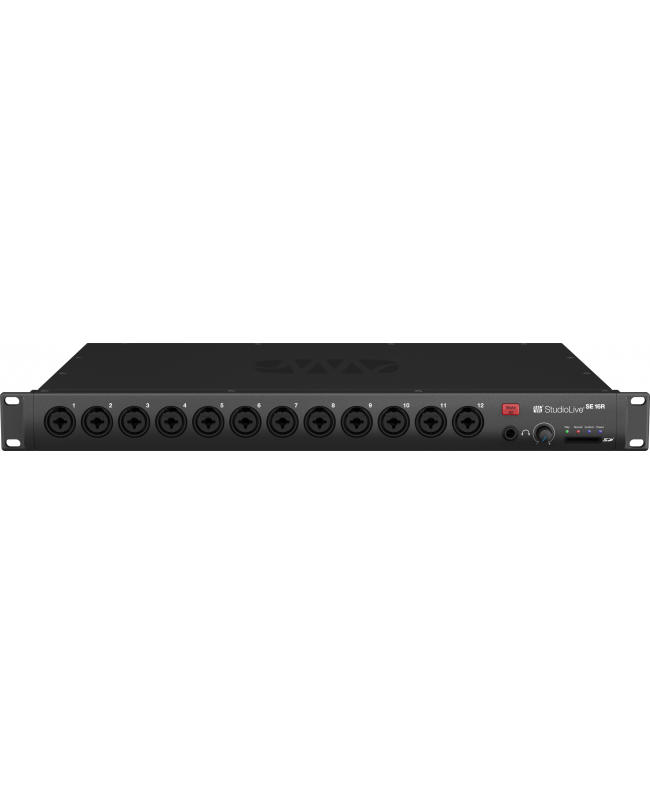

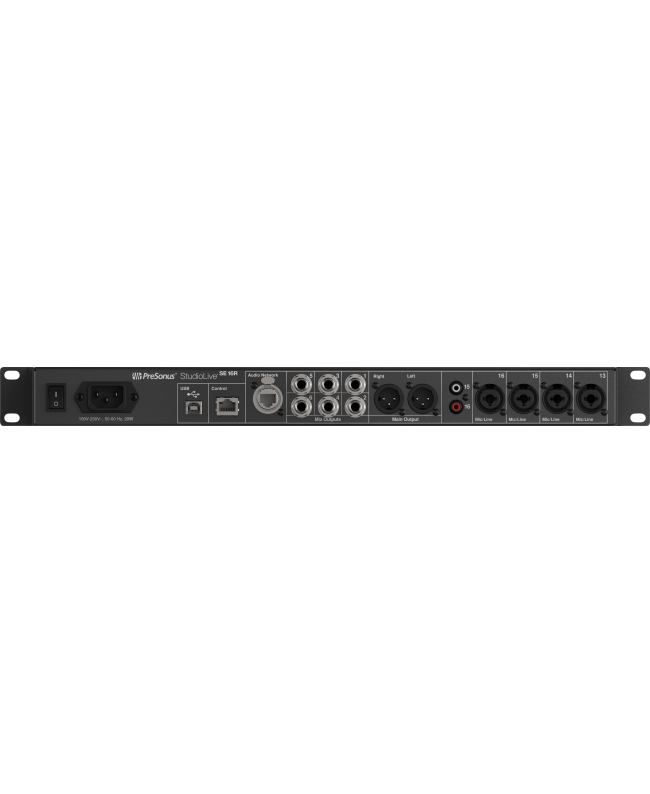

PreSonus StudioLive Series III SE 16R 19" Rack Mixers
  • -12%

PreSonus StudioLive Series III SE 16R

€1,486.00
€1,304.00 -12%
Tax included
Lowest price within the last 30 days: €1,304.00

Compact 18-channel digital mixer per rack

Qty

In Stock

Delivery

Do You want Your order by Thursday, 23/04/2026? Order within 7 hours and 38 minutes

Free shipping

Compare

wishlist

PreSonus StudioLive Series III SE 16R







Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming. StudioLive SE 16R packs the power of large-format mixing into a compact 1U rack unit. With 16 recallable XMAX-R mic preamps and FLEX DSP Fat Channel processing, each input and bus features studio-grade equalization and compression for professional, polished sound. Six FlexMixes, two dedicated FX mixes and six DCAs offer complete routing control. Built-in 18x18 USB recording, built-in SD stereo capture, and Virtual Soundcheck with Capture software simplify recording and playback. Source switching per channel between analog, USB, SD and AVB simplifies hybrid configurations. Integrated Milan-certified audio networking enables plug-and-play operation with the entire StudioLive Series III product line, while Universal Control and QMix-UC provide maximum wireless mixing freedom.

  • 18-channel digital rack-mount mixer with 16 recallable XMAX-R microphone preamplifiers
  • 6 FlexMixes configurable as Aux, Subgroup or Matrix mixes
  • 2 dedicated FX mixes with stereo returns
  • Continuous bi-directional 18x18 USB 2.0 audio interface
  • Built-in SD stereo recording
  • Virtual soundcheck with capture software
  • Milan-certified AVB network for StudioLive Series III systems
  • Source switching by channel (analog, USB, SD, AVB)
  • Universal Control remote control Offline mixing and editing
  • QMix-UC personal monitor mixing with Wheel of Me
  • Standalone mode, monitor mixer, interface or stagebox
  • Perpetual license for Fender Studio Pro included
  • Specifications: Electronic
  • Headphone jack: 1/4" TRS stereo active
  • Phantom power supply: +48V DC (2V DC)
  • Power consumption: 35 W (continuous)
  • Voltage: 230 V EUR
  • Voltage requirements: 100-230 V AC, 50-60 Hz
  • General: Color
  • Product Name: StudioLive SE 16R Digital Rack Mixer, Black, EU
  • Series: StudioLive
  • Digital audio AVB network ports: XLR with lock, Ethernet

Digital audio network control port

  • Specifications: Electronic
  • Headphone jack: 1/4" TRS stereo active
  • Phantom power supply: +48V DC (2V DC)
  • Power consumption: 35 W (continuous)
  • Voltage: 230 V EUR
  • Voltage requirements: 100-230 V AC, 50-60 Hz
  • General: Color
  • Product Name: StudioLive SE 16R Digital Rack Mixer, Black, EU
  • Series: StudioLive
  • Digital audio AVB network ports: XLR with lock, Ethernet
  • USB digital audio recording port: USB 2.0, Type B
  • Line input connection type: female RCA, unbalanced (stereo pair)
  • Maximum line input level: +12 DBu, 0.5 dBu

Microphone input connection type

  • XLR combo with lock: 1/4" TRS line

Microphone preamplifier common-mode rejection ratio

  • Frequency response of microphone preamplifier: 20-20 KHz (0.5 dBu at unity gain)
  • Microphone preamplifier gain control range: 0 dB to 60 dB (1 dB)
  • Microphone preamplifier input impedance: 1 KΩ
  • Maximum input level of the microphone preamplifier: =+12 DBu (unity gain)
  • Microphone preamplifier signal-to-noise ratio: 94 dB (Ref. =+4 dB, 20 kHz bandwidth, unity gain, A-weighted)
  • Total harmonic distortion of microphone preamplifier: <0.005%, +4 DBu, 20-20 kHz, unity gain, unweighted
  • SD card: 2 GB; SDHC card: 32 GB
  • Product depth: 12" (30.5 Cm)
  • Height of product: 1.75" (4.45 Cm)
  • Product Height/Length: 1.75" (4.45 Cm)
  • Product Weight: 8.6 Pounds (3.9 kg)
  • Product Width: 19" (48.3 Cm)
  • Weight: Less than 25 lbs
  • Internal digital audio processing: 32 Bit, floating point
  • Power cord: IEC

Recommended ambient operating temperature

0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

  • Recording file format: stereo WAV
  • Supported formats: FAT16 formatted SD card, FAT32 formatted SDHC card
  • Supported sampling frequencies: 48 KHz, 44.1 kHz
  • Frequency response of headphone outputs: 20 Hz to 20 kHz, +/-0.5 dB

100 MW/channel with 60 Ω load

  • Headphone outputs Signal-to-noise ratio: 96 DB, 1 kHz, maximum gain, 20 Hz bandwidth, unweighted
  • Headphone outputs Total harmonic distortion: 0.01%, 1 KHz, maximum gain, 20 Hz bandwidth, unweighted
  • Line outputs Connection type: 1/4" TRS, balanced
  • Maximum output level of line outputs: =+18 DBu, 0.5 dBu
  • Output impedance of line outputs: 100 Ohm
  • Maximum output level of XLR outputs: =+24 DBu, 0.5 dBu
  • Output impedance of XLR outputs: 100 Ohm
  • Crosstalk (adjacent channels): 87 dB (Reference =+4 dBu, 20 Hz-20 kHz, unweighted)
  • Digital audio bit depth: 24
  • ADC dynamic range: 115 dB (A-weighted, 48 kHz), DAC dynamic range: 115 dB (A-weighted, 48 kHz)
  • Digital audio reference level for zero dBFS: =+18 DBu
  • Total latency of digital audio system: 1.9 Ms (local routing, analog input-analog output, active processing)

Bit depth of SD recorder

  • Recording: 24 bit, Playback: 16 or 24 bit
  • SD recorder sampling frequency: 44.1 OR 48 kHz
