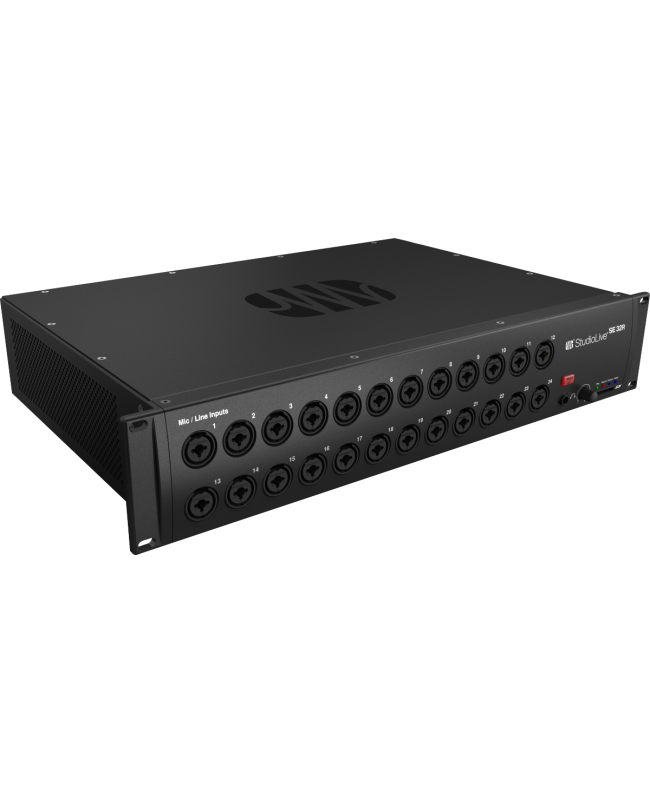

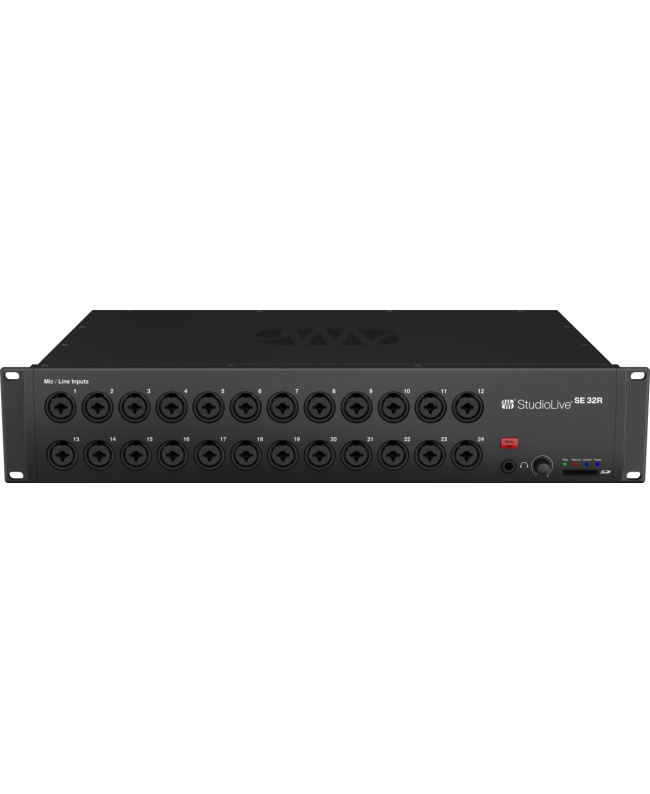

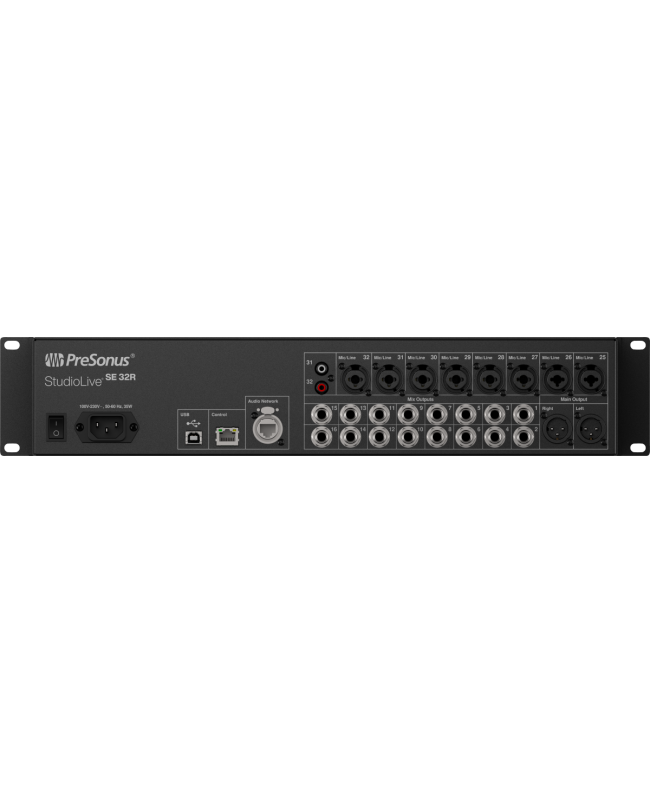

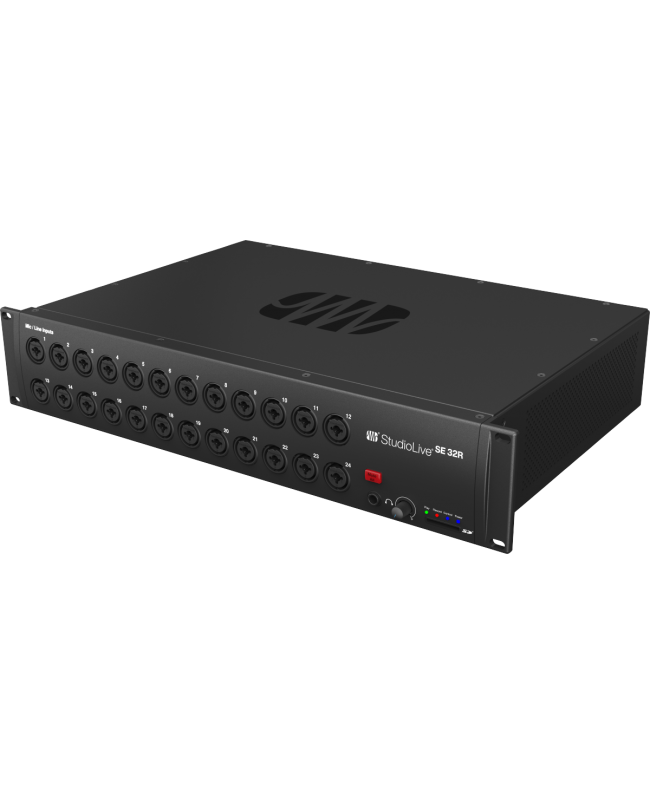

PreSonus StudioLive Series III SE 32R


€2,677.00
€2,348.00 -12%
Tax included
Lowest price within the last 30 days: €2,348.00

40-channel rack-mount mixer


Qty

In Stock

Delivery

Do You want Your order by Thursday, 23/04/2026? Order within 7 hours and 38 minutes

Free shipping


wishlist

PreSonus StudioLive Series III SE 32R







StudioLive SE 24R offers complete mixing power in two rack spaces. With 24 XMAX-R preamplifiers and 16 FlexMixes, plus 4 subgroups, 4 dedicated FX mixes and 24 DCAs, this mixer effortlessly handles a large number of channels. Built-in 64x64 USB audio interface, built-in SD capture and Capture software with Virtual Soundcheck simplify recording and playback. Milan-certified AVB network connectivity ensures plug-and-play connectivity with StudioLive Series III consoles and stageboxes, while per-channel source switching (analog, USB, SD, AVB) simplifies hybrid configurations. Universal Control and QMix-UC provide wireless mixing and monitoring control for engineers and artists.

Features

  • 40-channel digital rack-mount mixer with 24 built-in recallable XMAX-R preamplifiers
  • 16 FlexMixes configurable as Aux mix, subgroups or matrix
  • 4 Dedicated subgroups and 4 FX mixes with stereo returns
  • 24 DCA Groups for advanced mixing control
  • Continuous bi-directional 64x64 USB 2.0 audio interface
  • Built-in SD stereo recording
  • Acquisition integration with Virtual Soundcheck
  • Milan-certified AVB networking for StudioLive Series III ecosystems
  • Source per channel Switching (analog, USB, SD, AVB)
  • Universal Control remote mixing and offline editor
  • QMix-UC personal monitor mixing
  • Standalone mode, monitor mixer or stagebox
  • Perpetual license for Fender Studio Pro included
  • Specifications: Electronic
  • Headphone jack: 1/4" TRS stereo active
  • Phantom power supply: +48V DC (2V DC)
  • Power consumption: 35 W (continuous)
  • Voltage: 230 V EUR
  • Power requirements: 100-230 V AC, 50-60 Hz
  • General: Color
  • Product Name: StudioLive SE 24R Digital Rack Mixer, Black, EU
  • Series: StudioLive
  • Digital audio AVB network ports: XLR with lock, Ethernet

Digital audio network control port

  • Specifications: Electronic
  • Headphone jack: 1/4" TRS stereo active
  • Phantom power supply: +48V DC (2V DC)
  • Power consumption: 35 W (continuous)
  • Voltage: 230 V EUR
  • Power requirements: 100-230 V AC, 50-60 Hz
  • General: Color
  • Product Name: StudioLive SE 24R Digital Rack Mixer, Black, EU
  • Series: StudioLive
  • Digital audio AVB network ports: XLR with lock, Ethernet
  • USB digital audio recording port: USB 2.0, Type B
  • Line input connection type: female RCA, unbalanced (stereo pair)
  • Maximum line input level: +12 DBu, 0.5 dBu

Microphone input connection type

  • XLR combo with lock: 1/4" TRS line

Microphone preamplifier common-mode rejection ratio

  • Frequency response of microphone preamplifier: 20-20 KHz (0.5 dBu at unity gain)
  • Microphone preamplifier gain control range: 0 dB to 60 dB (1 dB)
  • Microphone preamplifier input impedance: 1 KΩ
  • Maximum input level of the microphone preamplifier: =+12 DBu (unity gain)
  • Microphone preamplifier signal-to-noise ratio: 94 dB (Ref. =+4 dB, 20 kHz bandwidth, unity gain, A-weighting)
  • Total harmonic distortion of microphone preamplifier: <0.005%, +4 DBu, 20-20 kHz, unity gain, unweighted
  • SD card: 2 GB; SDHC card: 32 GB
  • Product depth: 12" (305 Mm)
  • Product Height: 3.5" (90 Mm)
  • Product Height/Length: 3.5" (90 Mm)
  • Product Weight: 10.8 Lbs (4.9 kg)
  • Product Width: 19" (483 Mm)
  • Internal digital audio processing: 32 Bit, floating point
  • Power cord: IEC

Recommended ambient operating temperature

0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

  • Recording file format: stereo WAV
  • Supported formats: FAT16 formatted SD card, FAT32 formatted SDHC card
  • Supported sampling frequencies: 48 KHz, 44.1 kHz
  • Frequency response of headphone outputs: 20 Hz to 20 kHz, +/-0.5 dB

100 MW/channel with 60 Ω load

  • Headphone outputs Signal-to-noise ratio: 96 DB, 1 kHz, maximum gain, 20 Hz bandwidth, unweighted
  • Headphone outputs Total harmonic distortion: 0.01%, 1 KHz, maximum gain, 20 Hz bandwidth, unweighted
  • Line outputs Connection type: 1/4" TRS, balanced
  • Maximum output level of line outputs: =+18 DBu, 0.5 dBu
  • Output impedance of line outputs: 100 Ohm
  • Maximum output level of XLR outputs: =+24 DBu, 0.5 dBu
  • Output impedance of XLR outputs: 100 Ohm
  • Crosstalk (adjacent channels): 87 dB (Reference =+4 dBu, 20 Hz-20 kHz, unweighted)
  • Digital audio bit depth: 24
  • ADC dynamic range: 115 dB (A-weighted, 48 kHz), DAC dynamic range: 115 dB (A-weighted, 48 kHz)
  • Digital audio reference level for zero dBFS: =+18 DBu
  • Total latency of digital audio system: 1.9 Ms (local routing, analog input-analog output, active processing)

Bit depth of SD recorder

  • Recording: 24 bit, playback: 16 or 24 bit
  • SD recorder sampling frequency: 44.1 OR 48 kHz
