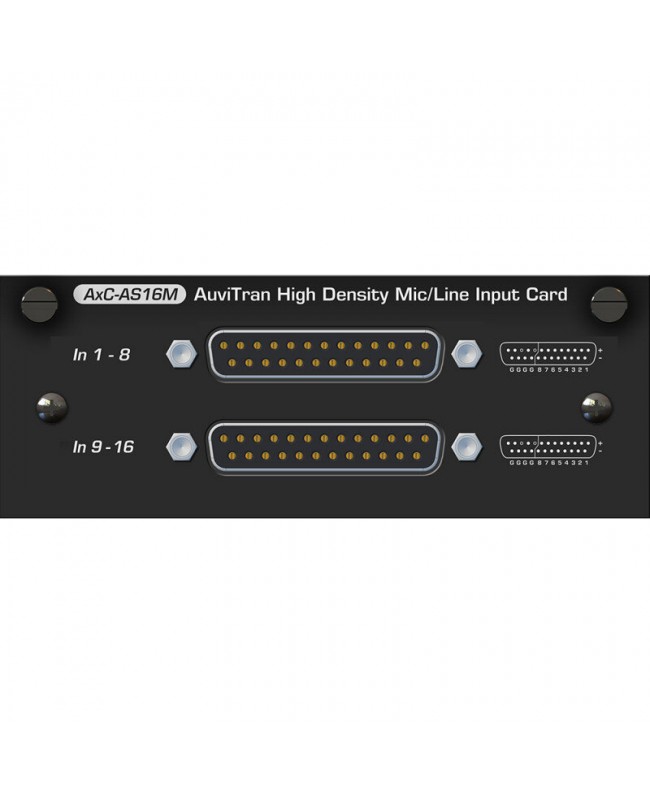

Agora AxC-AS16Mv2

High density MIC / Line card with 16 IN on 2 x DSUB DB25.

Must be inserted into the available slot on the rear panel of the Agora H1 to build the audio bridge. Just like every Ax. C card within the Audio Tool. Box range, the Ax. C-AS16M can also be used in the AVBx3 or AVBx7 platforms. Using only one slot of the Audio Tool. Box, the Ax. C AS16M provides 16 high quality MIC / Line inputs (both line and microphone level) with an incredible density for the Auvi. Tran Audio Tool. Box platform.

The attenuation / gain settings and VU-meters can be controlled and monitored individually per channel via network for remote management from virtually anywhere using AVS-Monitor via IP, Dante, AVB or Ether. Sound networks

Individual gains and remote controls of Phantom and #43;48 V activation are managed by the Yamaha HA remote protocol, allowing direct control and monitoring from the Yamaha console / mixer

• Ax. C-AS16M applications
• Suitable for all professional applications that require a large number of high quality MIC / line inputs in a small size:
• Ability to connect and pre-amplify many high performance microphones or line sources. High-class A/D conversion chip and excellent circuit design
• These cards set new standards of quality, price and channel density for professional audio applications
• Dedicated control page to monitor and control all card parameters (gain, Phantom power on each channel, preamp values, VU-meter)
• Main features
• High-density card for 16 MIC / line inputs
• 16 Balanced MIC / line and #43; high-quality preamps
• Input sensitivity from and #43;24 d. Bu to -56 d. Bu
• Analog gain range: 0 to and #43;80 d. B (with 0.5 d. B increments)
• E.I.N.: and lt; -126 d. Bu
• Dynamic range: and gt; 115 d. B
• THD and #43;N: and lt; -90 d. B
• Phantom power and #43;48 V, individually controllable for each input
• 2 X Sub-DB25 female connectors
• A 0.5 d. B linear step digital gain / attenuator provides access to an input sensitivity of -56 d. Bu to and #43;24 d. Bu
• Activation of Phantom power and #43;48 V per channel, preamp gain setting
