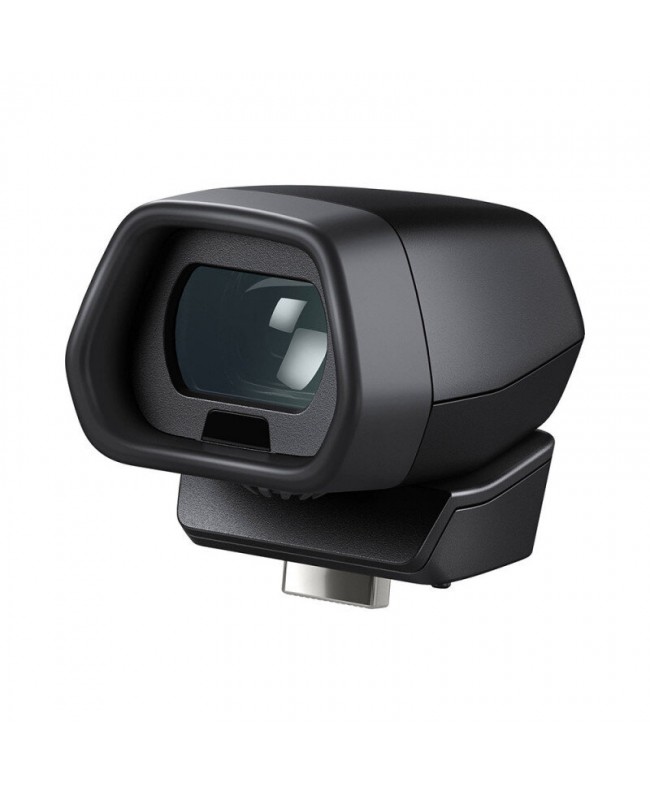

High-quality electronic viewfinder perfect for handheld shooting outdoors.
It features a built-in proximity sensor, a 4-lens optic adjustable from -4 to and #43;4 diopters, status information, and a Siemens star indicator built into the display to help the operator precisely adjust manual focus. It connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector.
The Blackmagic Pocket Cinema Camera Pro EVF features 70° rotation and four eyepiece options for the right and left eye.
Technical characteristics
Connections
Video and power inputs: via Pocket Cinema Camera 6K Pro EVF connector
Fixing: integrated M4 x 3.3 (0.7 pitch) locking screw
Features
Display resolution: 1280 x 960
Display pixels: 3.68 million dots
Display type: micro OLED
Frame rates: up to 60 fps
Color precision: 24 bit RGB, 16.7 million colors
Focus: 4 element diopter
Diopter range: -4 to +4
Power: auto ON/OFF controlled by inbuilt proximity sensor
Controls: viewfinder display configuration set via Monitor Page in camera menu settings
Overlays: camera settings, status and meters displayed in top and bottom blank area
Eyepiece: can be tilted +70° vertically
Eye cup: 4 x interchangeable silicone eye cups including small, medium, left eye and right eye
Mounting options: compatible with Pocket Cinema Camera 6K Pro
Metadata support: supports camera information from Pocket Cinema Camera 6K Pro
