Blackmagic Design Blackmagic PYXIS Monitor Kit Accessories for Digital Film Cameras
  • New

Blackmagic Design Blackmagic PYXIS Monitor Kit

€467.00
Tax included

5 HDR monitor kit with sunshade and tool-free mounts

Qty

In Stock

Delivery

Do You want Your order by Friday, 03/07/2026? Order within 2 hours and 16 minutes

Free shipping

Compare

wishlist

Blackmagic Design Blackmagic PYXIS Monitor Kit

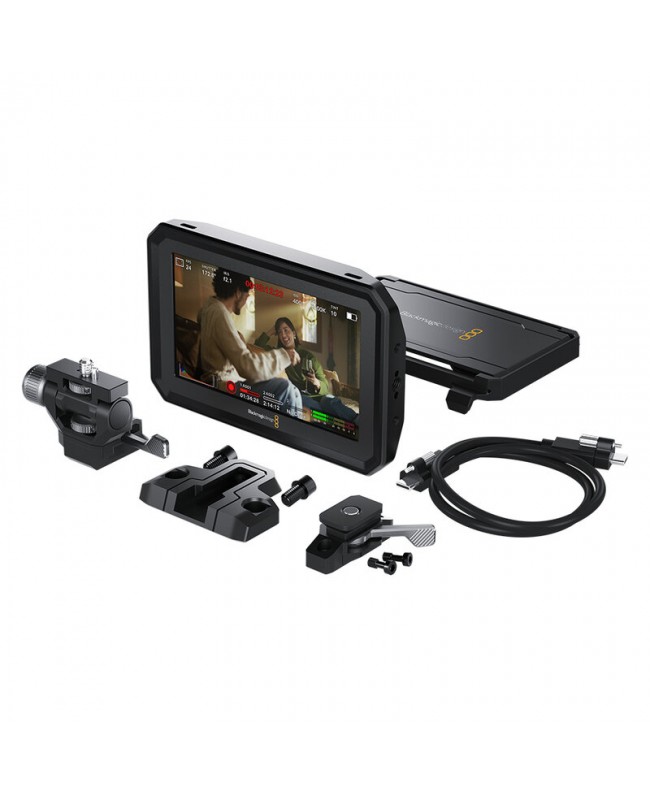

The Blackmagic PYXIS Monitor Kit includes a 5 and #34; HDR touchscreen monitor, a foldable sunshade, a locking USB cable, and PYXIS mounts for attaching the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. Thanks to the dovetail design of the PYXIS mounts, the monitor can be quickly mounted and removed without the need for tools. This solution allows for easy positioning of the monitor exactly where needed, enhancing on-set flexibility.

The kit includes the Blackmagic PYXIS Monitor Swivel Mount, Blackmagic PYXIS Monitor Fixed Mount, and Blackmagic PYXIS Monitor Dovetail Shoe, allowing the monitor to be securely and quickly attached. No tools are required to loosen bolts or adjust the monitor and #039;s position, making it ideal for dynamic shooting environments.

The USB-C connection with a locking connector provides power, video transmission, data transfer, and software updates for the monitor.

  • Quick and easy mounting
  • Complete connectivity
  • Users benefits
  • The monitor can be quickly mounted and removed without the need for tools
  • Easy positioning of the monitor exactly where needed, enhancing on-set flexibility
  • Areas of use
  • Film productions
  • Broadcasting
  • Live events
  • Advertising productions
  • Technical characteristics
  • Connections
  • Connections: USB-C with locking connector for video, power, data and software updates
  • Features
  • Display size: 5
  • Display resolution: 1920 x 1080
  • Display type: LCD capacitive touchscreen
  • Display brightness: 1500 nits
  • Frame rates: up to 60 fps

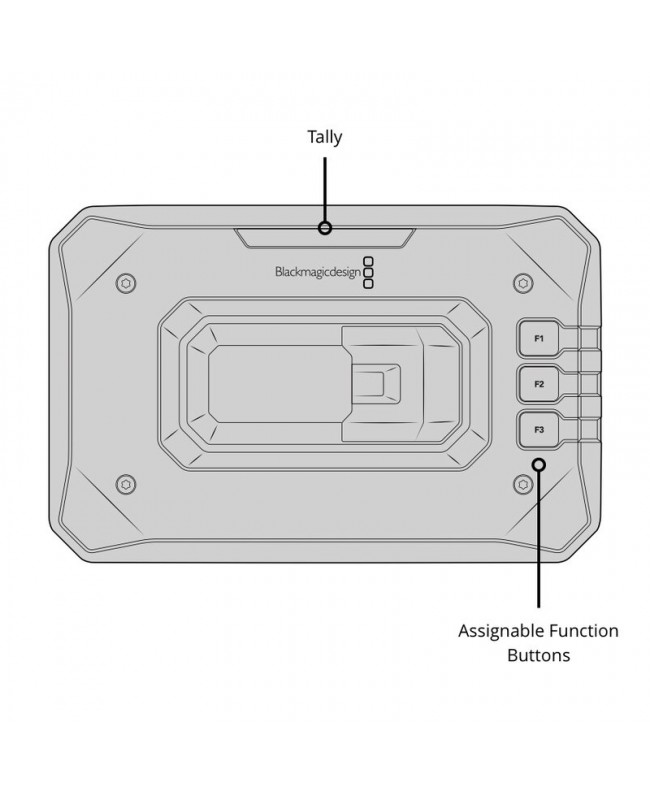

  • Tally: rear facing LED Tally light
  • Accelerometer: automatically rotates image when monitor is mounted upside down
  • On screen controls: tap screen to control monitor overlays, frame rate, shutter, iris, timecode, ISO, white balance, tint, power, record start / stop, media, audio, focus zoom, digital slate and camera menus
  • Button controls: includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions
  • Function button presets: FPS preset value, iris preset value, WB preset value, ISO preset value, shutter preset value
  • Function button toggle: clean feed, status text display, LUT, frame guides, focus assist, false color, zebra, grid, safe area guide, off speed, rec, focus zoom, focus, record, auto white balance, color bars, playback, false color + zebra, OIS, stream, still
  • Mounting

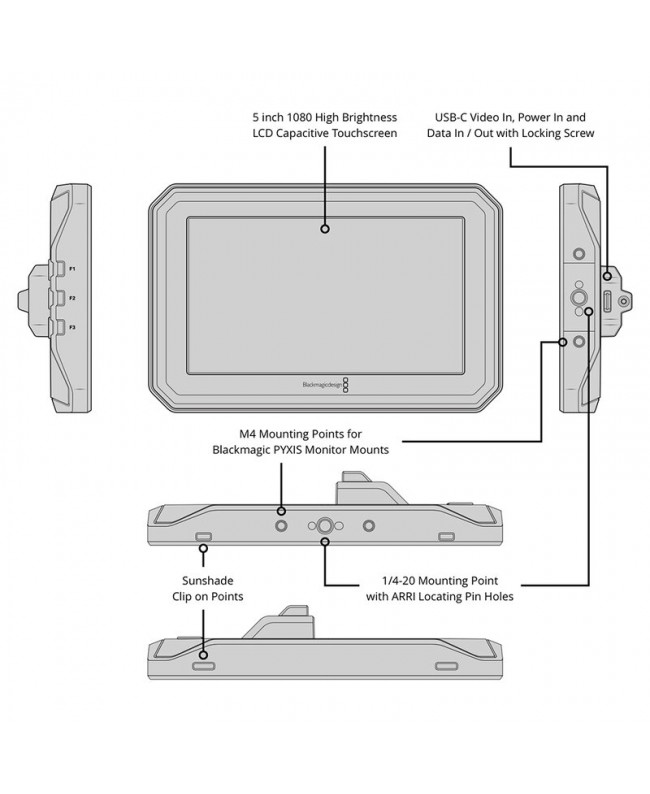

  • Mounting points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern
  • Bottom mounting points: 2 x M4 bottom mounting points
  • Side mounting points: 1 x 1/4-20 side mounting point with ARRI locating pin pattern
  • Additional side mounting points: 2 x M4 side mounting points
  • Mounting brackets

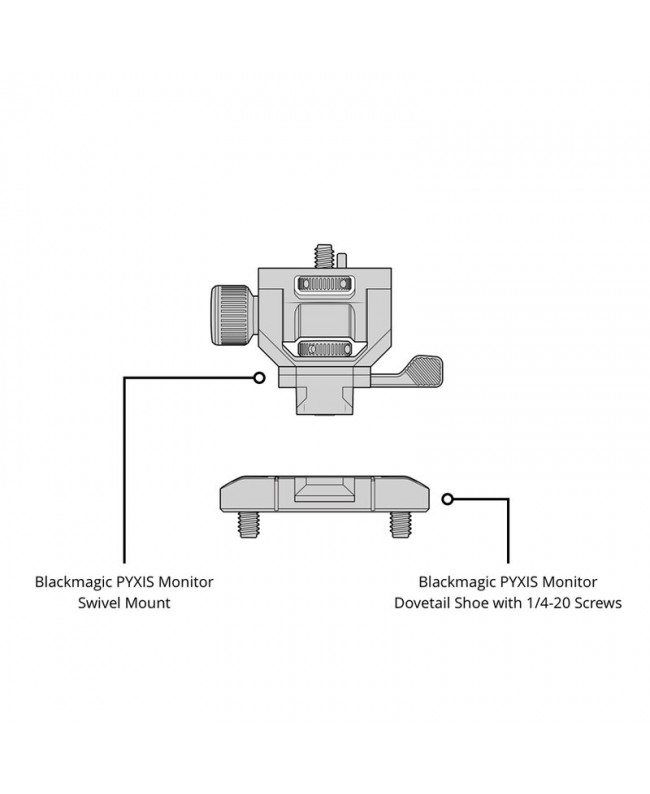

  • Swivel mount: Blackmagic PYXIS Monitor Swivel Mount included in kit
  • Fixed mount: Blackmagic PYXIS Monitor Fixed Mount included in kit
  • Dovetail shoe: Blackmagic PYXIS Monitor Dovetail Shoe included in kit
  • Compatible cameras

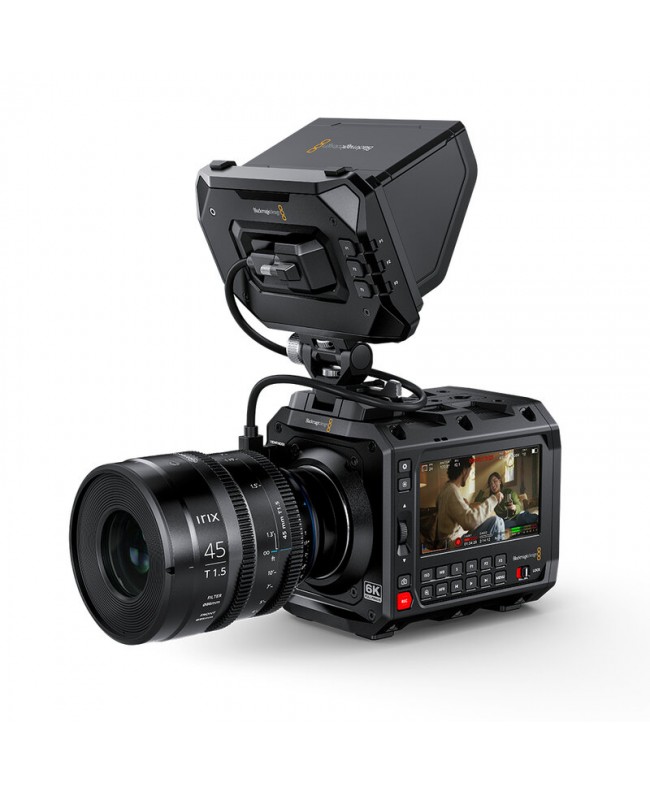

  • Blackmagic PYXIS 6K, Blackmagic PYXIS 6K PL, Blackmagic PYXIS 6K EF, Blackmagic URSA Cine 12K LF, Blackmagic URSA Cine 17K 65, Blackmagic Micro Studio Camera 4K G2
  • Operating systems
  • Mac support: Mac 13.0 Ventura, Mac 14.0 Sonoma or later
  • Windows support: Windows 10 and 11
  • Power requirements
  • Power input: powered over USB-C
  • Physical specifications (monitor)

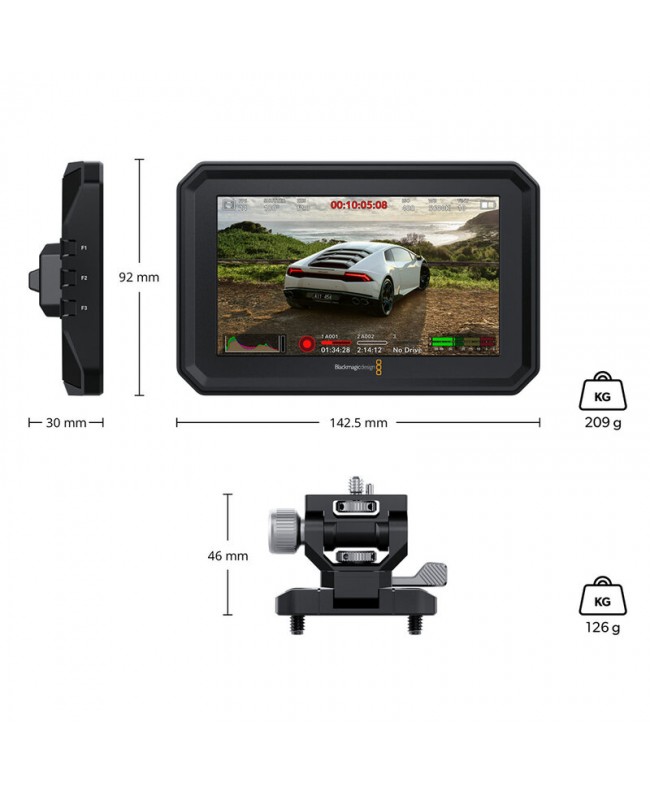

  • Dimensions: 14.25 x 9.2 x 3 cm
  • Weight: 209 g
  • Environmental specifications
  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 60 °C
  • Relative humidity: 0 to 90% non-condensing
  • What's in the box
  • Blackmagic PYXIS monitor
  • Blackmagic PYXIS clip on sunshade
  • Blackmagic PYXIS monitor swivel mount
  • Blackmagic PYXIS monitor fixed mount and screws
  • Blackmagic PYXIS monitor dovetail shoe and screws
  • 1 X USB-C viewfinder cable
  • Welcome wallet with QR code for software download
  • Blackmagic Design sticker

BLM-CINEURSABB/AMKIT
