Showgear PowerCore Server Accessories for Power Distributors

Showgear PowerCore Server

€251.00
Tax included

Monitor up to 6 PowerCore distributors

Out of Stock

Free shipping

Compare

wishlist

Showgear PowerCore Server

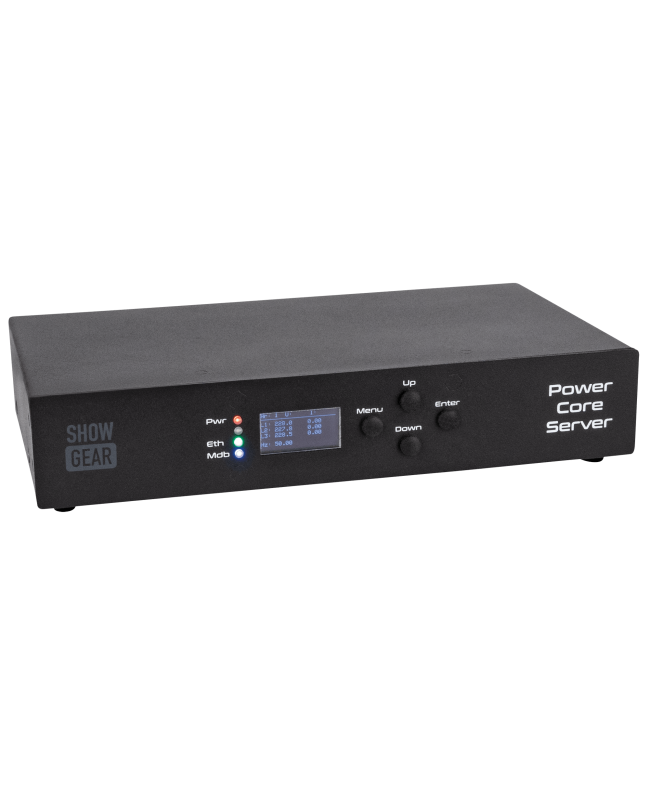

The Showgear PowerCore Server can monitor up to 6 PowerCore power distributors at once using the MdbuS protocol. Its OLED display provides real-time information on voltage and current consumption of all connected distributors. Connecting the server to the distributors can be done using a simple 3-pin XLR cable. It's also possible to connect a device like a tablet or a laptop to the server via IP for monitoring performance remotely.

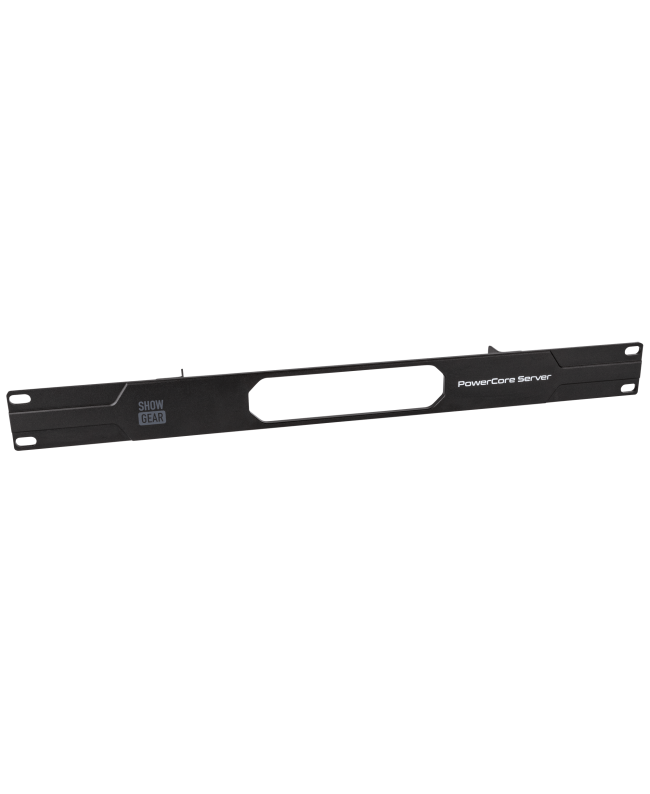

The PowerCore Server can be powered via PoE or USB-C (cable not included). The supplied 19" front panel is ideal for rack mounting, but it can be removed for non-rack installations.

  • OLED display

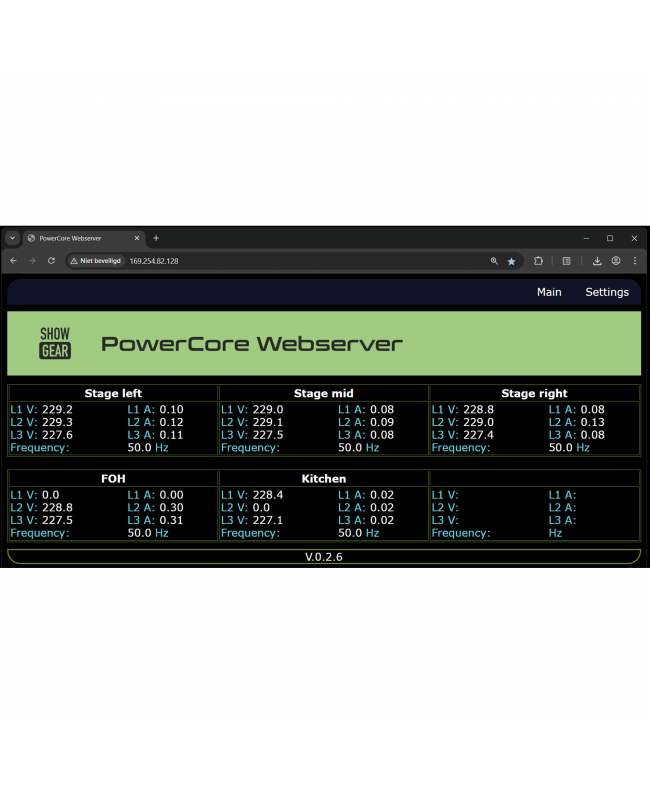

  • Remote monitoring via IP (phone, tablet, laptop)
  • MdbuS protocol
  • USB-C and PoE powered

Technical

Control and Programming

  • Display OLED

Electrical Specifications and Connections

  • Data Connector In RJ45
  • Data Connector Out RJ45, XLR 3P
  • Power Consumption 3 W
  • Power Supply 5 V DC
  • Power over Ethernet (PoE) IEEE- 802.3af
  • Power Connector In RJ45, USB-C

Mechanical Specifications

  • Length (mm) 141 mm (5.551″)
  • Height (mm) 50 mm (1.969″)
  • Width (mm) 482 mm (18.976″)
  • Weight 1.6 kg (3.527 lb)
  • IP Rating IP20 (indoor use only)
  • Housing Aluminium, Metal
  • Rack Units 1 U
  • Colour Black

Thermal Specifications

  • Maximum Ambient Temperature
  • 40 °C (104 °F)
  • Minimum Ambient Temperature
  • -5 °C (23 °F)

E623050
