DAP M10 Active Monitors

DAP M10

€394.00
Tax included

10” active stage monitor

Qty

In Stock

Delivery

Do You want Your order by Thursday, 31/07/2025? Order within 9 hours and 50 minutes

Free shipping

Compare

wishlist

DAP M10

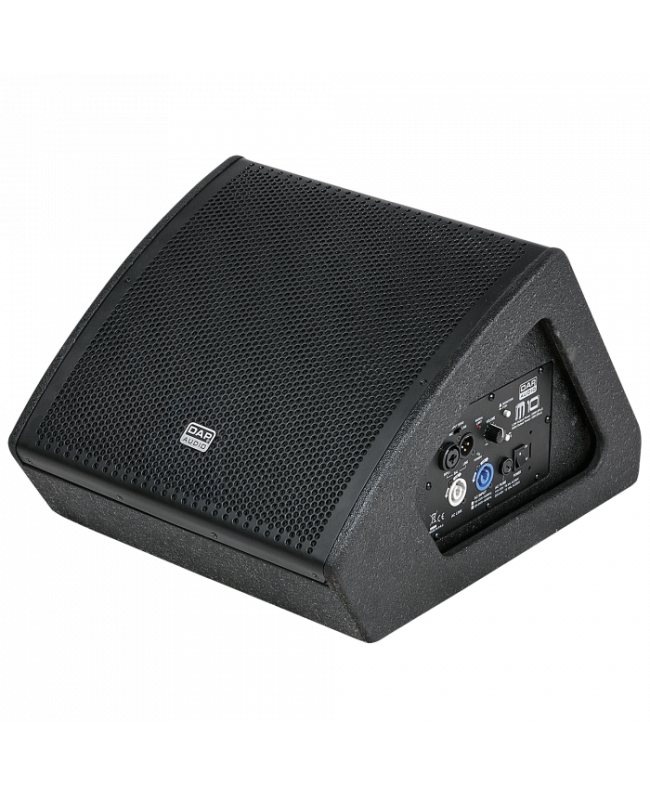

The DAP M10 is a 415-watt active stage speaker with a 10-inch woofer, specially designed to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent, direct “in-your-face” sound with even coverage. The powerful Class D amplifier delivers good sound quality, even at high volumes.

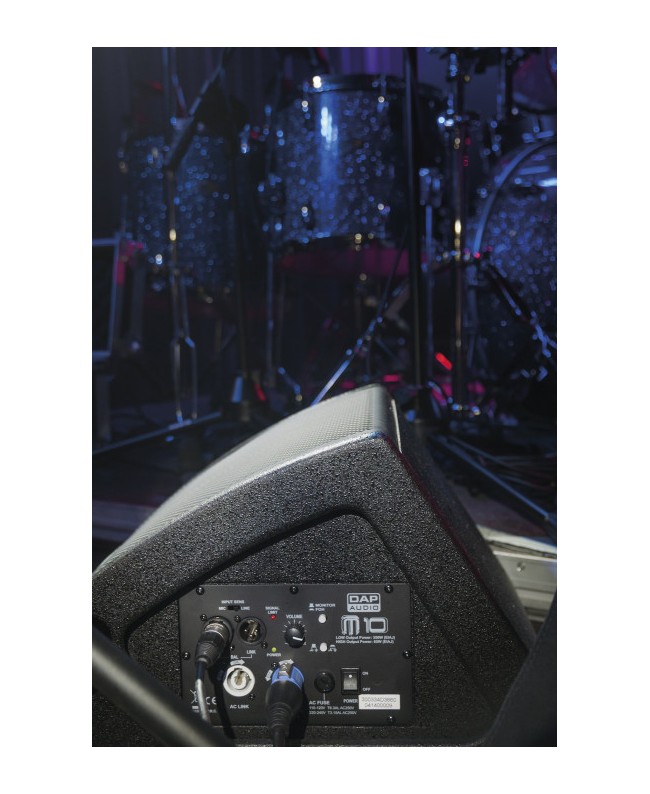

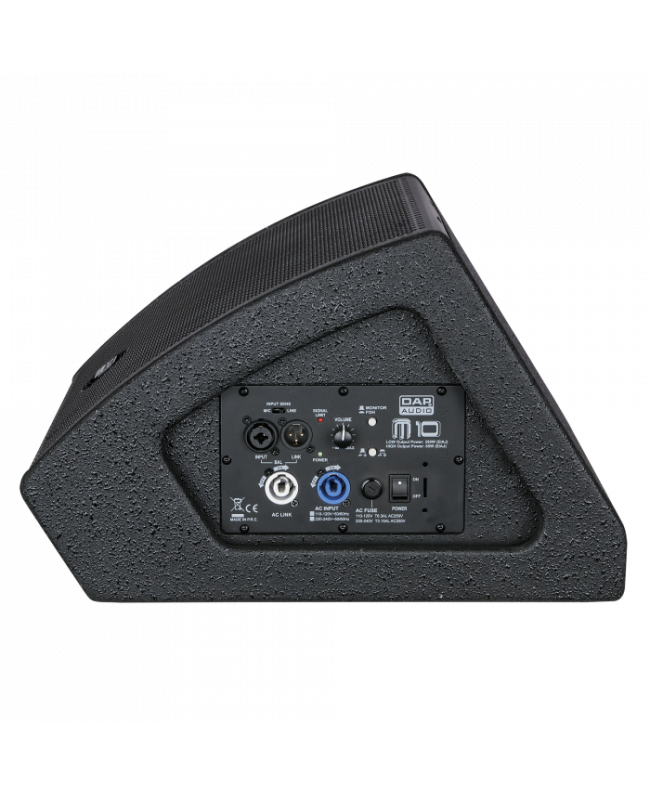

The M10's integrated amplifier has an XLR/Jack input connector, an XLR line output connector, and a powerCON input and pass-through connector. It features a volume control, EQ preset selector, ground switch, and AC fuse for sound and output level adjustment.

Integrated handles protect the built-in amplifier and connectors from damage and make it a very easy-to-handle stage monitor, even in the most challenging environments.

  • 415 W RMS, max SPL of 126 dB at 1 m
  • Class D amplifier
  • Compact and lightweight
  • Easy series connection with XLR and powerCON
  • Robust metal speaker protection grille

Technical Specifications

Output

  • Low Driver Power 350 W
  • High Driver Power 65 W
  • Amplifier RMS Output Power 415 W
  • Main Outputs 1
  • Main Output Connectors 3-pin XLR

Input

  • Mono Inputs 1
  • Mono input connection 3-pin XLR, 6.3 mm balanced TRS

Audio characteristics

  • THD Level < 0.5%
  • Signal-to-noise ratio > 90 dB
  • Amplifier class Class D
  • Damping factor 200:1
  • Speaker type 2-way
  • Speaker sensitivity (1 W/1 m) 97 dB
  • Max SPL at 1 m 126 dB
  • Minimum frequency response 70 Hz
  • Maximum frequency response 20000 Hz
  • Minimum frequency response (-10 dB) 70 Hz
  • Maximum frequency response (-6 dB) 20000 Hz
  • Woofer diameter 10“
  • Woofer coil 2.5”
  • Woofer magnet type Ferrite
  • Driver diameter 1“
  • Driver coil 1”
  • Driver magnet type Neodymium
  • Horizontal dispersion angle 70°
  • Vertical dispersion angle 70°

Connections and electrical characteristics

  • Power supply 100-240 V AC 50/60 Hz
  • Power consumption 80 W
  • Fuse 3.15 A
  • Power input connection powerCON Blue
  • Power output connector powerCON Grey

Mechanical

  • Amplifier cooling Axial fan
  • Height (mm) 278 mm (10.945″)
  • Width (mm) 364 mm (14.331″)
  • Depth (mm) 430 mm (16.929″)
  • Material Wood
  • Material thickness 15 mm (0.591″)
  • Color Black
  • Finish Painted
  • Weight 11.4 kg (25.133 lb)
  • IP rating IP20 (for indoor use only)

Product features

  • 35 mm stand mounting
  • Electronic protection Clip limiter (fixed), Convection fan, DC voltage, Thermal
  • LED indicators Clip, Power
  • Rotatable horn No
  • Monitor use Yes
  • Diffuser grille Steel
  • Diffuser handles Left side, Right side
  • Parts included
  • Cables included powerCON cable

D3660

Data sheet

Woofer inch
10"
