DAP M15 Active Monitors

DAP M15

€498.00
Tax included

15” active stage monitor

Qty

In Stock

Delivery

Do You want Your order by Monday, 07/07/2025? Order within 3 hours and 21 minutes

Free shipping

Compare

wishlist

DAP M15

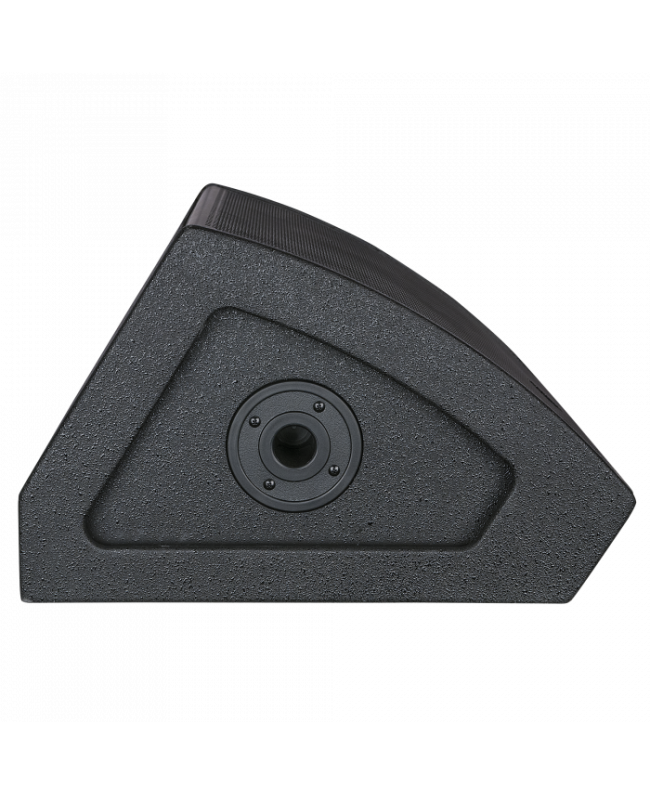

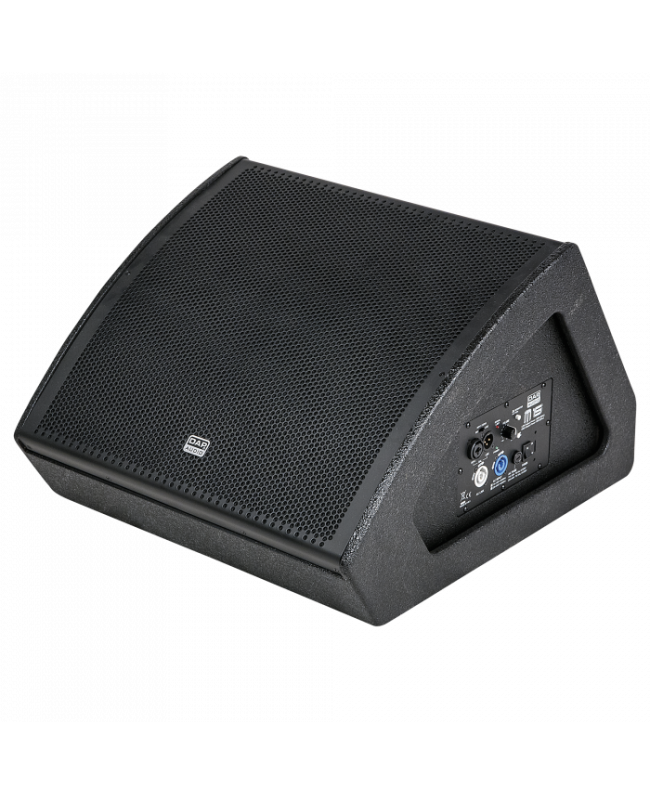

The DAP M15 is an active floor monitor speaker with a 15-inch woofer and a total power of 415 watt, especially built to amplify sounds on stage. It features a 60° wedge design and a coaxial speaker for transparent and direct 'in your face' sound with consistent coverage. The powerful Class D amplifier provides good sound quality, even at a high volume.

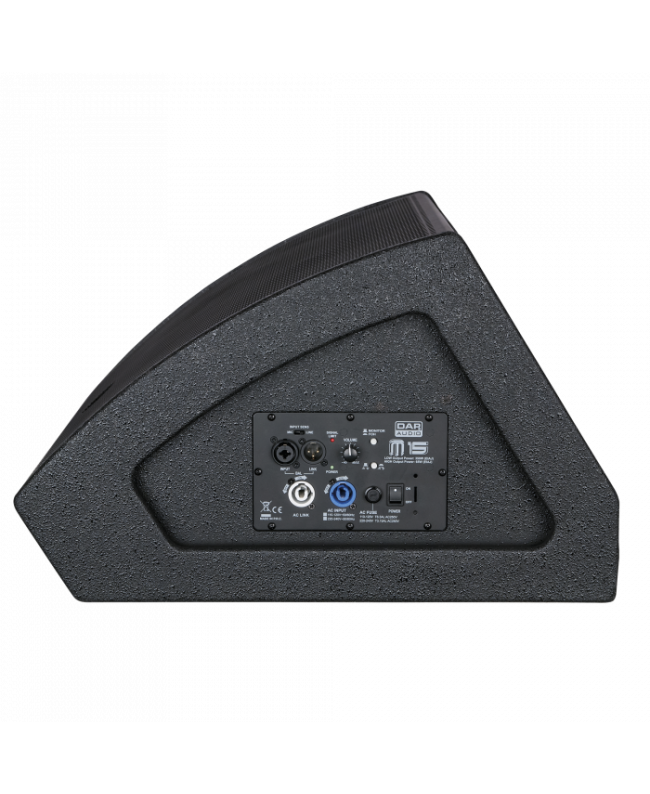

The built-in amplifier of the M15 has an XLR/Jack input connector, XLR line output connector and powerCON in and through connector. It's equipped with a volume control, EQ preset selector, ground switch and AC fuse for adjusting the sound and output level.

Integrated handles protect the recessed amplifier and connectors from getting damaged and makes it a very easy-to-handle floor monitor, even in the toughest stage environments.

  • 415 W RMS, max SPL of 128 dB at 1 m
  • Class D amplifier
  • Compact and lightweight
  • Easy daisy chain with XLR and powerCON
  • Stage proof design with rugged metal protective grill

Specifications

Outputs

  • Low Driver Power 350 W
  • High Driver Power 65 W
  • Power Amplifier RMS Output 415 W
  • Main Outputs 1
  • Main Output Connector 3-pin XLR

Inputs

  • Mono Inputs 1
  • Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm

Audio Specifications

  • THD Level < 0.5 %
  • Signal-to-noise Ratio > 90 dB
  • Amp Technology Class D
  • Damping Factor 200 :1
  • Speaker System 2-way
  • Speaker Sensitivity (1 W/1 m) 99 dB
  • Maximum SPL at 1 m 128 dB
  • Frequency Response (-10 dB) Minimum 60 Hz
  • Frequency Response (-10 dB) Maximum 20000 Hz
  • Woofer Diameter 15 "
  • Woofer Voice Coil Diameter 2.5 "
  • Woofer Magnet Type Ferrite
  • Compression Driver Diameter 1 "
  • Compression Driver Voice Coil 1 "
  • Compression Driver Magnet Type Neodymium
  • Dispersion Angle (Horizontal) 70 °
  • Dispersion Angle (Vertical) 70 °

Electrical Specifications and Connections

  • Power Supply 100-240 V AC 50/60 Hz
  • Power Consumption 80 W
  • Fuse 3.15 A
  • Power Connector In powerCON Blue
  • Power Connector Out powerCON Grey

Mechanical Specifications

  • Amplifier Cooling Axial fan
  • Height (mm) 342 mm (13.465″)
  • Width (mm) 495 mm (19.488″)
  • Depth (mm) 538 mm (21.181″)
  • Material Wood
  • Material Thickness 15 mm (0.591″)
  • Colour Black
  • Finish Painted
  • Weight 18.4 kg (40.565 lb)
  • IP Rating IP20 (indoor use only)

Product Properties

  • Pole Mount 35 mm
  • Electronic Protection Clip limiter (fixed), Convection-fan, DC voltage, Thermal
  • LED Indicators Clip, Power
  • Rotatable Horn No
  • Useable as Monitor/Wedge Yes
  • Speaker Grille Material Steel
  • Speaker Handle Positions Left side, Right side

Included Items

  • Included Cables powerCON cable

D3662

Data sheet

Woofer inch
10"
