RCF NX 15-SMA


€1,768.00
€1,698.00 -4%
Tax included
Lowest price within the last 30 days: €1,698.00

Active coaxial stage monitor 1400W Peak


Qty

In Stock

Delivery

Do You want Your order by Monday, 10/11/2025? Order within 9 hours and 57 minutes

Free shipping


wishlist

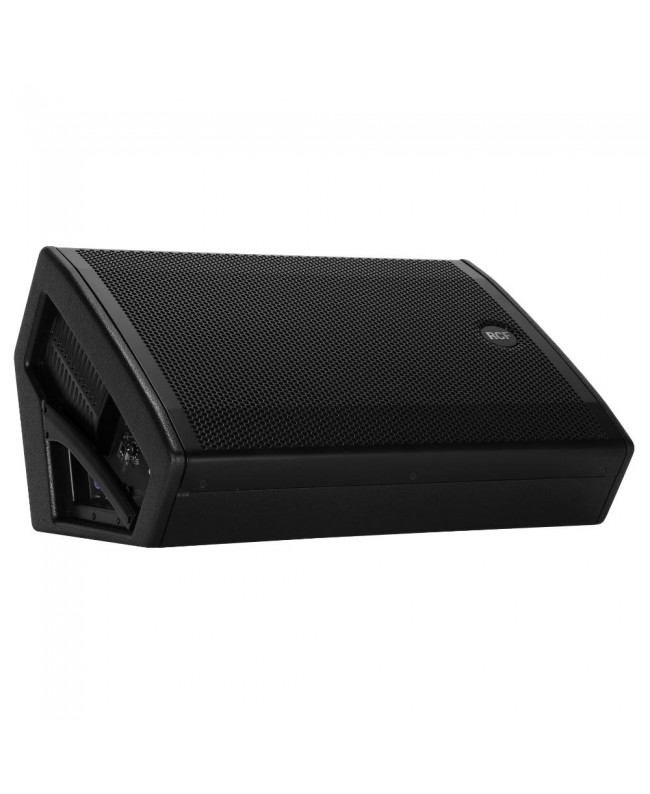

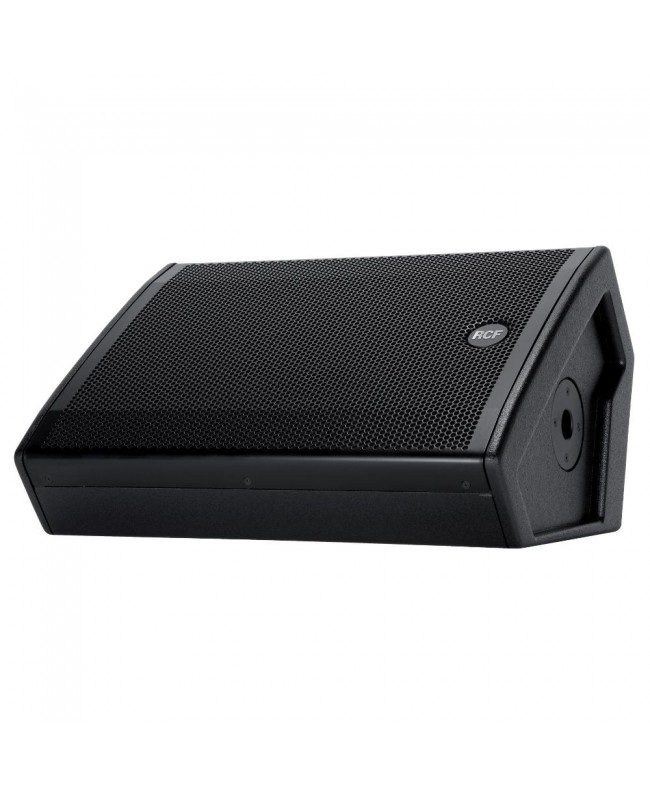

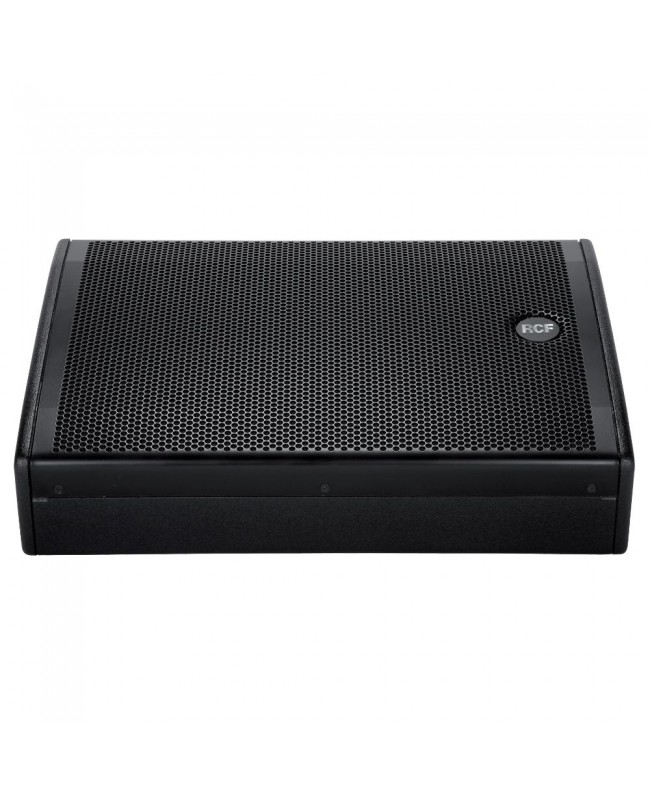

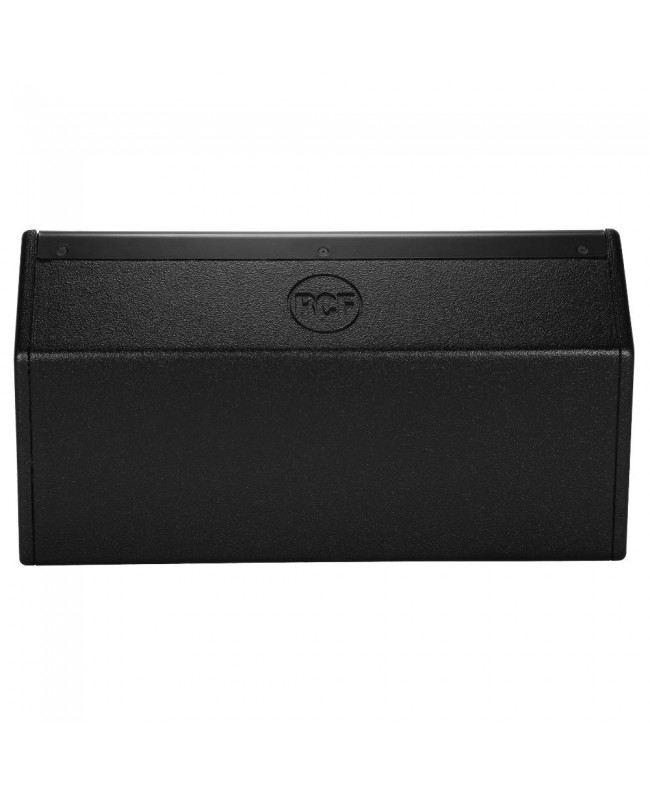

RCF NX 15-SMA



  • 1400 Watt Peak, 700 Watt RMS digital bi-amplification
  • 130 dB max spl
  • 60° x 60° constant directivity horn

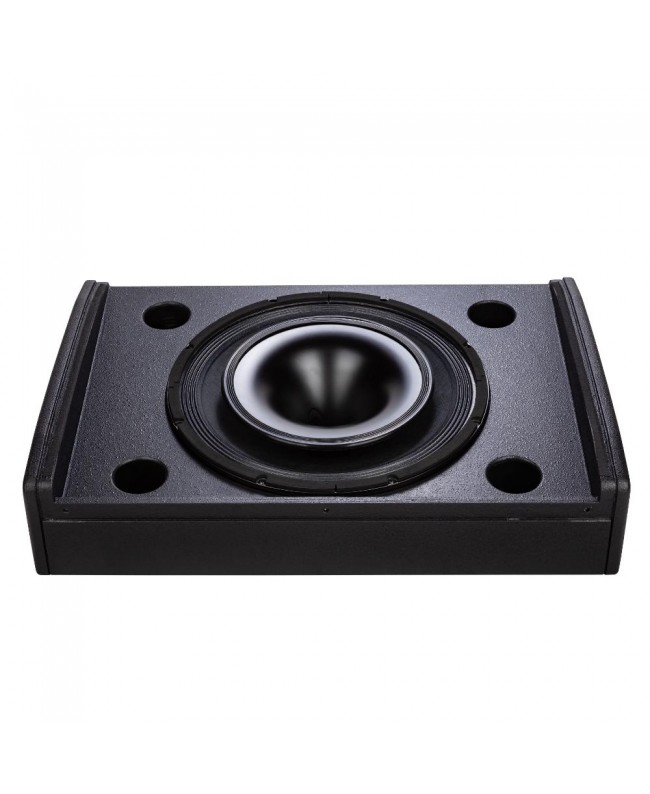

  • 15" High power neodymium woofer, 2.5" voice coil
  • 1.7" kapton dome, 1" exit, neodymium high frequency driver
  • DSP processing, floor - fre field equalization, soft limiter and protection
  • Combo xlr/jack input, xlr signal output

The NX 15-SMA is equipped with new high power 700 W digital amplifier and a newly designed 15” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 15-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes:- Floor, for stage monitoring; Free Field, for the use of the speakers as a stand-alone PA system.Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road.An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

  • ACOUSTICAL SPECIFICATIONS
  • Frequency Response 50 Hz ÷ 20000 Hz
  • Max SPL @ 1m 130 dB
  • Horizontal coverage angle 60°
  • Vertical coverage angle 60°
  • TRANSDUCERS
  • Compression Driver
  • Coaxial 1.0'' neo, 1.75'' v.c
  • Woofer Coaxial 15''
  • neo, 2.5'' v.c

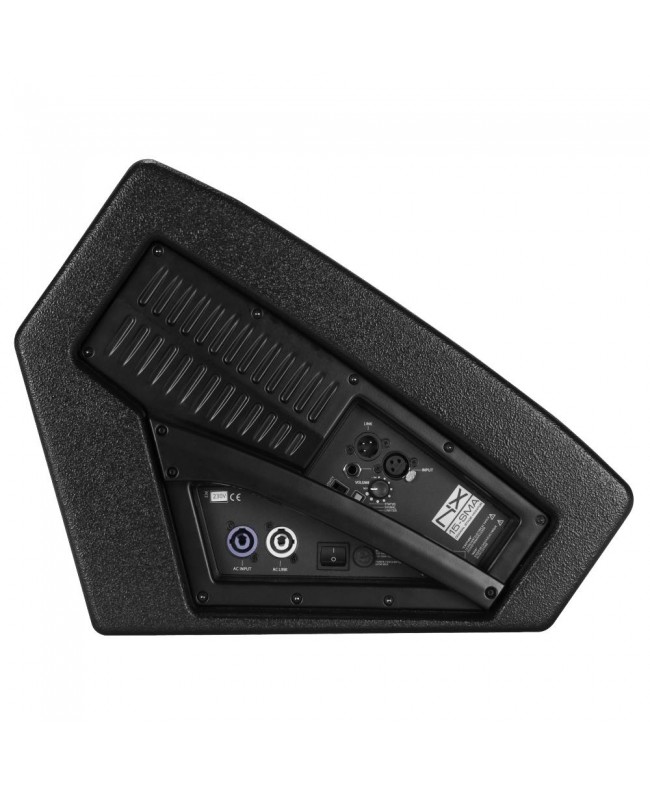

  • INPUT/OUTPUT SECTION
  • Input signal bal/unbal
  • Input connectors XLR, Jack
  • Output connectors XLR
  • Input sensitivity +4 dBu
  • PROCESSOR SECTION
  • Crossover Frequencies 1700 Hz
  • Protections RMS, HF
  • Limiter Soft Limiter
  • Controls Freefield, floor
  • POWER SECTION
  • Total Power 1400 W Peak, 700 W RMS
  • High frequencies 400 W Peak, 200 W RMS
  • Low frequencies 1000 W Peak, 500 W RMS
  • Cooling
  • Convection
  • Connections Powercon IN/OUT
  • STANDARD COMPLIANCE
  • Safety agency CE compliant
  • PHYSICAL SPECIFICATIONS
  • Cabinet/Case Material Baltic birch plywood
  • Handles 1 on side

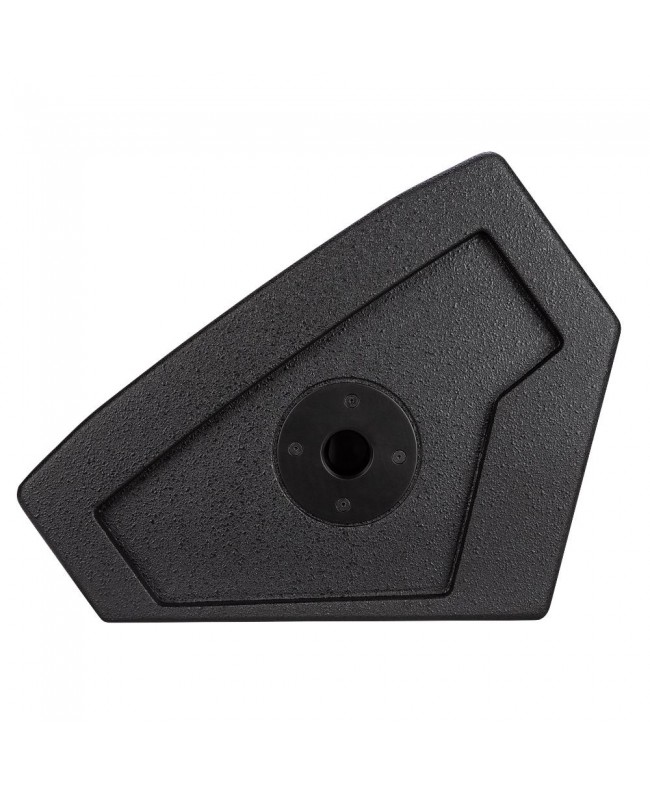

  • Pole mount/Cap 35 mm insert
  • Grille Steel
  • Color Black
  • SIZE / WEIGHT
  • Height 362 mm / 14.25 inches
  • Width 650 mm / 25.59 inches
  • Depth 468 mm / 18.43 inches
  • Weight 20.2 kg / 44.53 lbs

R13000260

Data sheet

Woofer inch
12"
