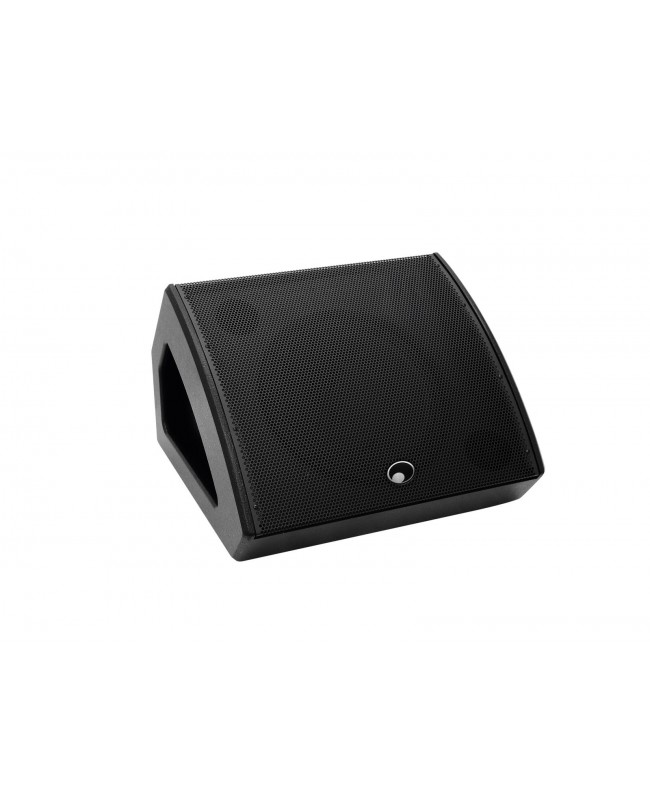

Omnitronic KM-112A Active Stage Monitor, coaxial

• Active 2-way coaxial stage monitor for live and playback applications
• Class D/AB biamp power amplifier
• 30 cm bass speaker (12) and 3.5 cm compression driver (1.35)
• Bassreflex cabinet provides deep bass and high SPL
• Line input (XLR/6.3 mm jack)
• Low cut, volume control
• Black metal grille
• 2 recessed carrying handles
• For application areas such as: Stage; mobile use; band/rehearsal room
• Application possibility: Monitoring; on stand; standing

Scope of delivery

• 1 x compact cabinet speaker
• 1 x user manual
• 1 x power cord

• Power supply: 115/230 V AC, 50/60 Hz
• Power consumption: 180 W 1/8 power
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 2 A fuse replaceable
• Power: Program: 500W, Rated: 50W RMS HF, Rated: 250W RMS LF
• Frequency range: 50 - 20000 Hz
• Max. SPL: 123 dB
• Dispersion angle: 80° x 80°

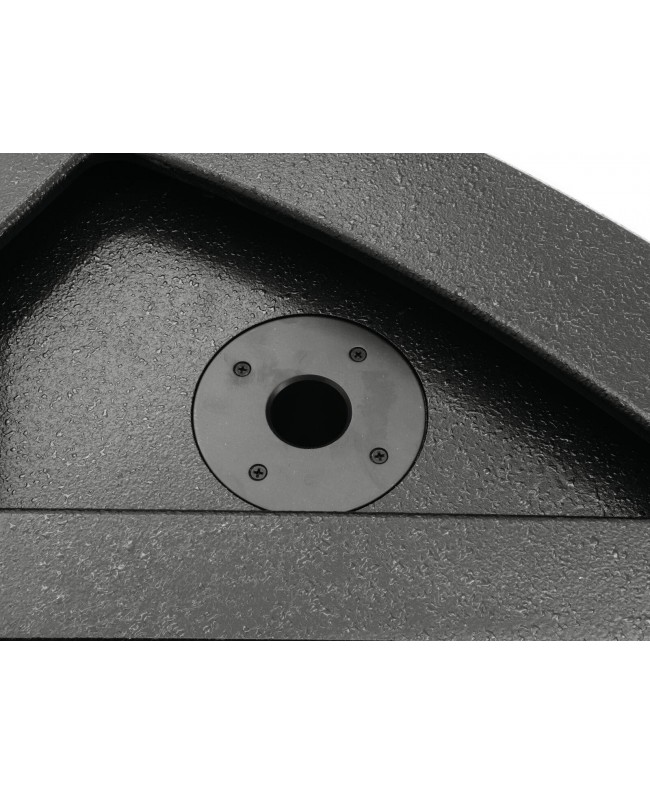

• Attachment system: Flange:
• Control elements: Level control, groundlift selector, tone control, power switch
• Controls: Limiter; overload
• Status LED: Power, limit

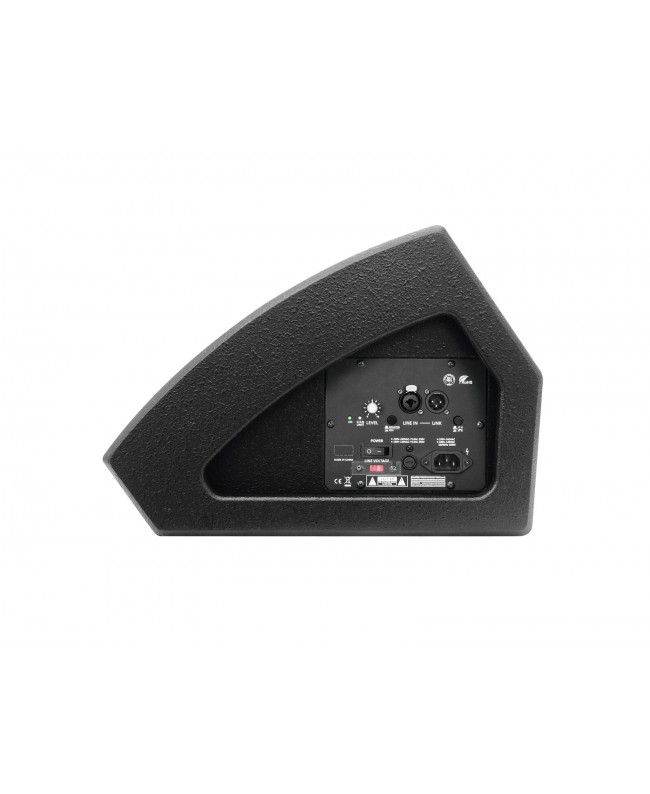

• Connections: Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR
• Input channels: 1 x mono via XLR or jack, channel control via rotary dial
• Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, 1 x voice coil compression tweeter highs 1.35
• Type of speaker: Compact cabinet speaker; coaxial speaker; stage monitor
• Type of construction: Vented
• Recessed carrying handle: 2 pc/pcs
• Material: MDF (medium density fiberboard)
• Color: Black, textured coating, painted
• Dimensions: Width: 50 cm, Depth: 34 cm, Height: 46 cm
• Weight: 16.70 kg
