DAP Splash 10A Active Speakers

DAP Splash 10A

€206.00
Tax included

10" full range active loudspeaker

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 1 hours and 22 minutes

Free shipping

Compare

wishlist

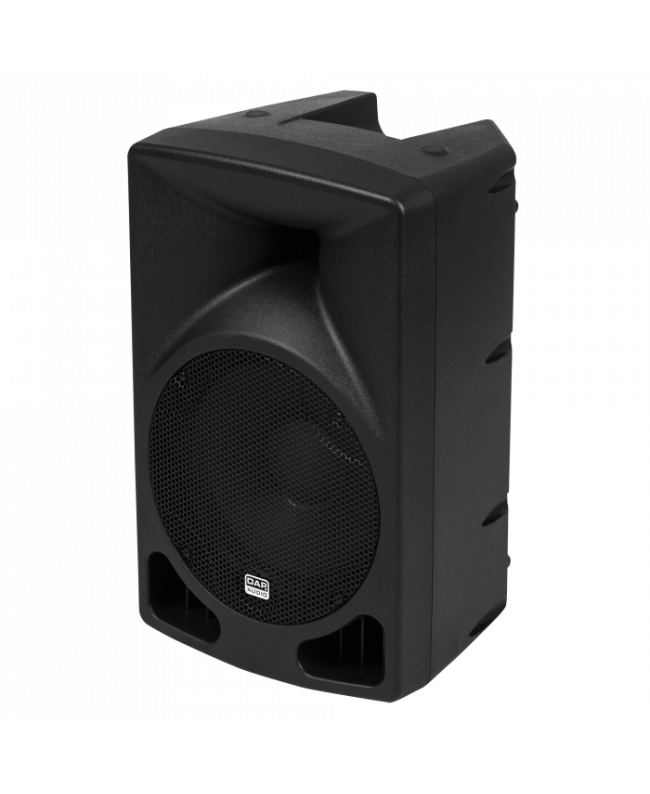

DAP Splash 10A



The DAP Splash 10A is an active 10-inch full-range loudspeaker with a maximum sound pressure level of 116 dB at a distance of 1 metre. With its integrated 240-watt amplifier, it is perfect as a floor monitor or PA speaker for smaller venues. It impresses with its versatile design and clear sound. The Splash 10A is compact and has a narrow dispersion angle to minimise feedback and make the most of its power.

The Splash series is designed for durability and performance. The speaker features a robust ABS enclosure with handles, a universal adapter for pole mounting and rubber feet for quick and secure setup.

  • Suitable as a PA speaker or floor monitor
  • Compact, lightweight and robust ABS enclosure
  • 120 W RMS, max. SPL of 116 dB at 1 m
  • Universally applicable
  • Handles, 35 mm adapter for pole mounting and rubber feet

Output

  • Low-frequency driver power: 90 W
  • High-frequency driver power: 30 W
  • Power amplifier RMS power: 120 W
  • Power amplifier peak power: 240 W

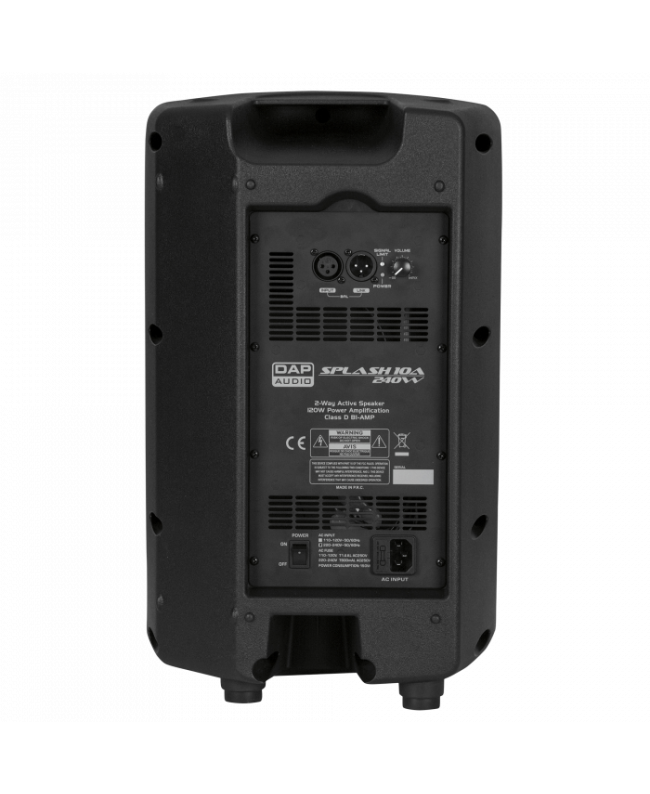

  • Main outputs: 1
  • Main output connection: 3-pin XLR

Input

  • Mono inputs: 1
  • Mono input connection: 3-pin XLR

Audio specifications

  • THD level: < 0.5%
  • Signal-to-noise ratio: > 80 dB
  • Amplifier technology: Class D
  • Damping factor: 200 :1
  • Speaker system: 2-way
  • Speaker sensitivity (1 W/1 m): 95 dB
  • Maximum SPL at 1 m: 116 dB
  • Frequency response minimum (-6 dB): 65 Hz
  • Frequency response maximum (-6 dB): 20000 Hz
  • Crossover frequency (tweeter): 2800 Hz
  • Woofer diameter: 10‘
  • Woofer voice coil diameter: 1.5’
  • Woofer magnet type: Ferrite
  • Compression driver diameter: 1‘
  • Compression driver voice coil: 1’
  • Compression driver magnet type: Ferrite
  • Sound dispersion angle (horizontal): 90°
  • Sound dispersion angle (vertical): 45°

Electrical specifications and connections

  • Power supply: 100-240 V AC 50/60 Hz
  • Power consumption: 75 W
  • Fuse: 0.8 A
  • Power input: IEC

Mechanical specifications

  • Amplifier cooling: Convection
  • Height (mm): 460 mm (18.11″)
  • Width (mm): 285 mm (11.221″)
  • Depth (mm): 265 mm (10.433″)
  • Material: ABS
  • Colour: Black
  • Weight: 6.92 kg (15.256 lb)
  • IP protection class: IP20 (for indoor use only)

Product features

  • Pipe mounting: 35 mm
  • Electronic protection: Clip limiter (fixed), DC voltage, soft start, thermal
  • LED indicators: Clip, power, signal
  • Rotatable horn: No
  • Can be used as monitor/wedge: Yes
  • Speaker grille material: Steel
  • Speaker handle positions: Top

Items included

  • Cables included: IEC cable

D3589

Data sheet

Woofer inch
10"
