DAP NRG-10A

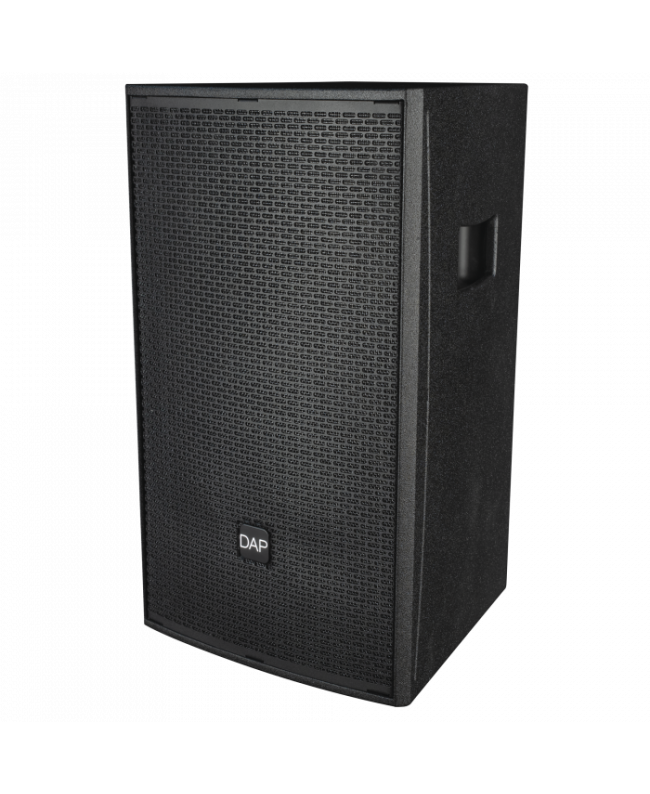

The DAP NRG-10A is a broadband active loudspeaker with a peak power output of 360 watts (180 watts RMS). It features a 10‘ woofer and a 1’ compression driver and has an internal DSP with 4 practical modes: Contour, Flat, Speech and +Sub. You can apply a loudness curve, a flat curve, a high-pass curve or a high-pass filter with frequency and phase curves optimised specifically for the NRG subwoofer range. The compression driver is coupled to a rotatable horn with a dispersion angle of 90° x 60°. The internal Class D amplifier features a switching power supply to keep weight low and efficiency high. The internal DSP includes a crossover for the woofer and compression driver, a 2-band limiter and protection mechanisms against short circuits and overheating.

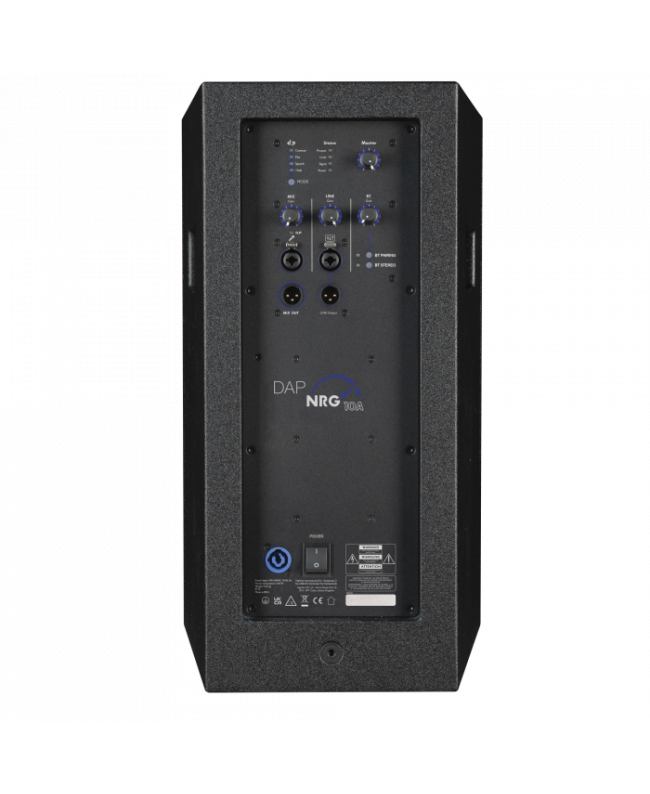

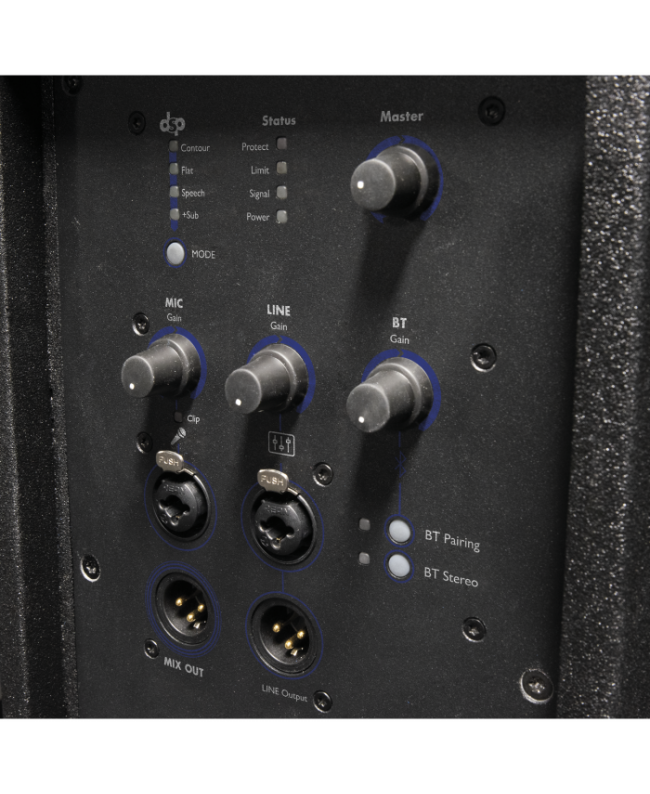

In addition to special combined XLR/jack connectors for microphone and line signals, the NRG-10A also features a built-in Bluetooth 5.0 receiver that allows you to play music from a smartphone, laptop or other Bluetooth media players. The Bluetooth receiver is equipped with True Wireless Stereo (TWS) and can be configured to play stereo sound when using two NRG broadband speakers. The line output is loop-through and there is an additional “Mix-Out” output for all available signals, which can be used to connect a second device or a subwoofer, preferably from the NRG series. Individual gain controls allow you to easily adjust the level of the different input signals, while a master control adjusts the overall volume.

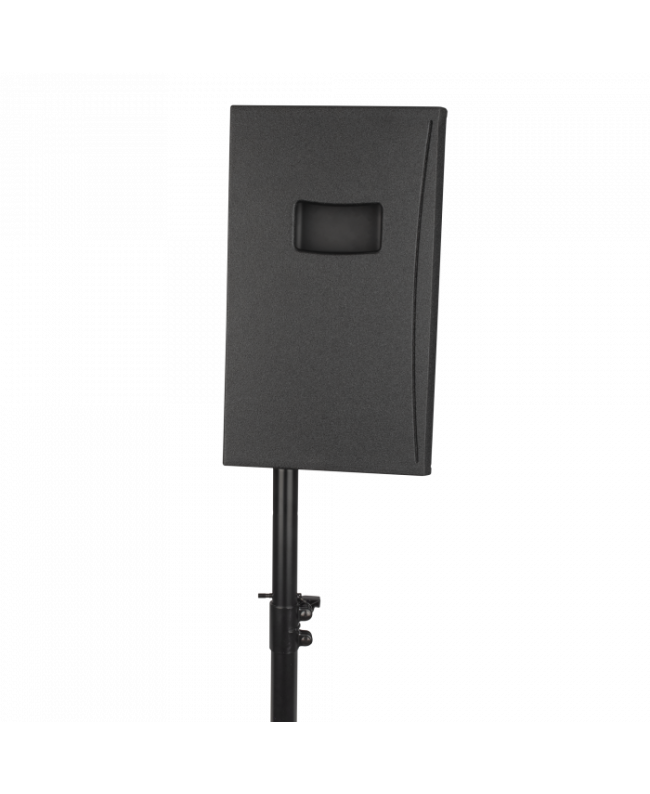

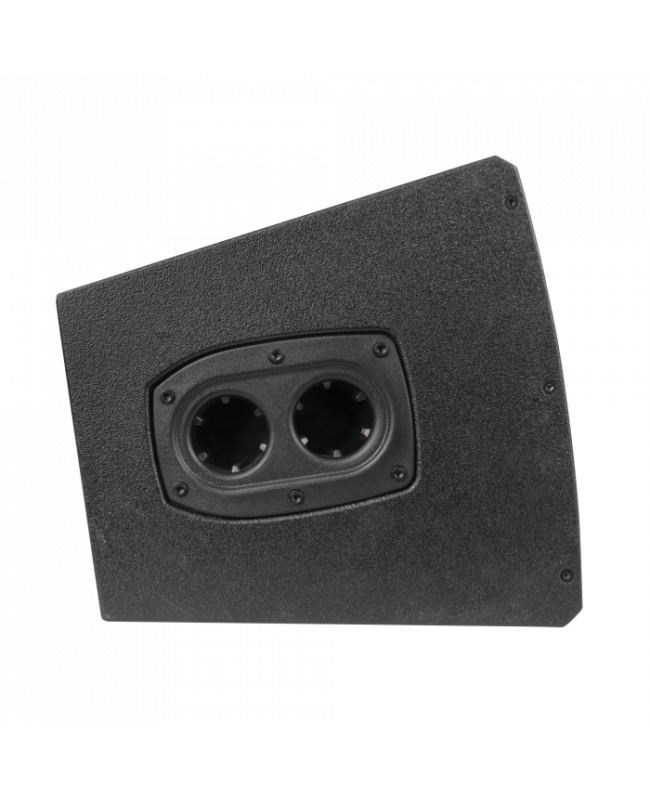

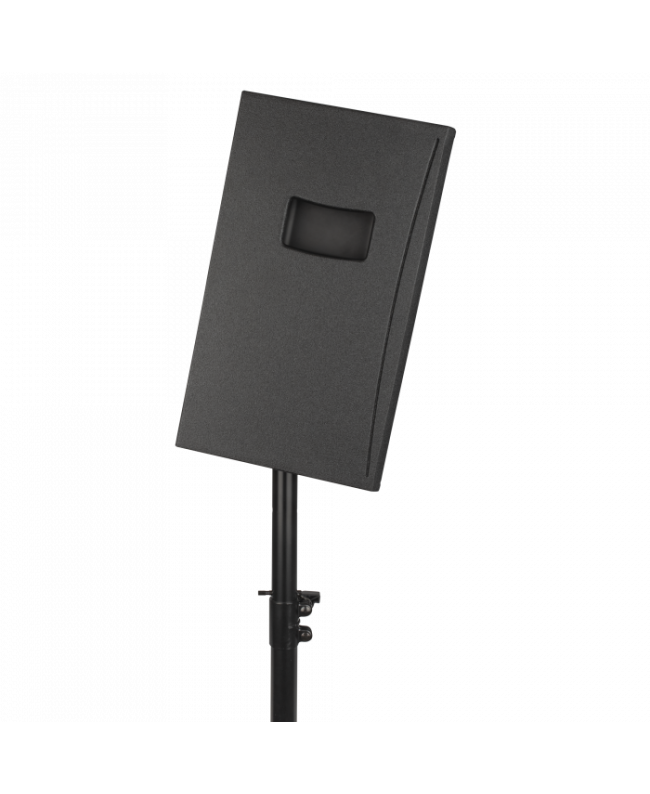

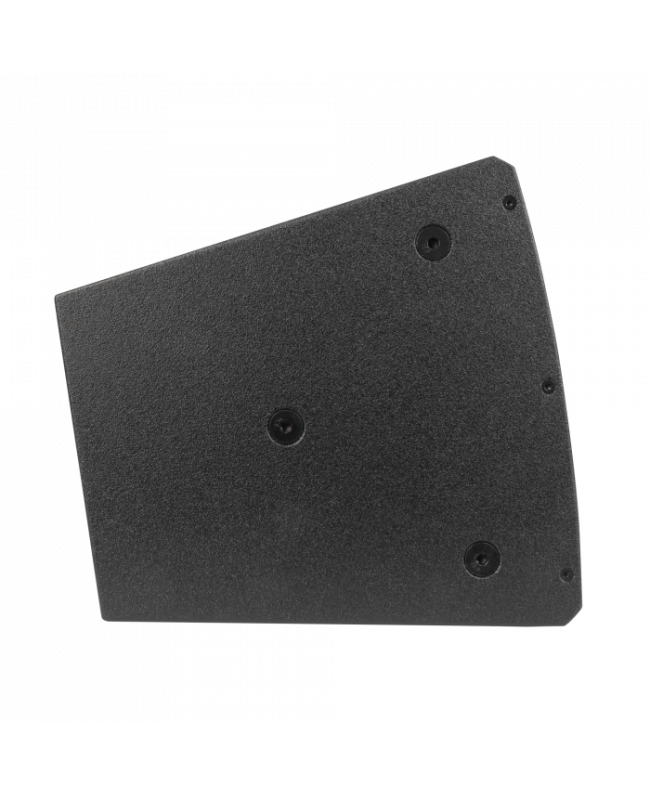

The lightweight plywood enclosure features a dual-angle hat (0° and 5°) that allows the speaker to be angled downwards when mounted on a pole. For best results, we recommend using the NRG-10A in conjunction with a subwoofer from the NRG series.

• 180 W RMS, 360 W peak, maximum SPL of 115 dB at 1 m
• Frequency response 70-20,000 Hz
• Bluetooth 5.0 with True Wireless Stereo (TWS)
• Dedicated microphone and line inputs
• Internal DSP with 4 modes
