Omnitronic PAS-210A MK4 2-way Top, active, DSP, BT

• Active PA speaker system for touring applications and permanent installations
• Optimized for combination with PAS subwoofers
• DSP-controlled biamp amplifier (class D)
• Trapezoidal, multi-functional multiplex cabinet with monitor shape
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
• Digital signal processor
• DSP presets: MUSIC; LIVE; CLUB; VOICE
• The device is cooled by passive convection cooling
• Control via Bluetooth
• Bluetooth: operating range up to 10m in buildings
• Dual flange
• With rigging points

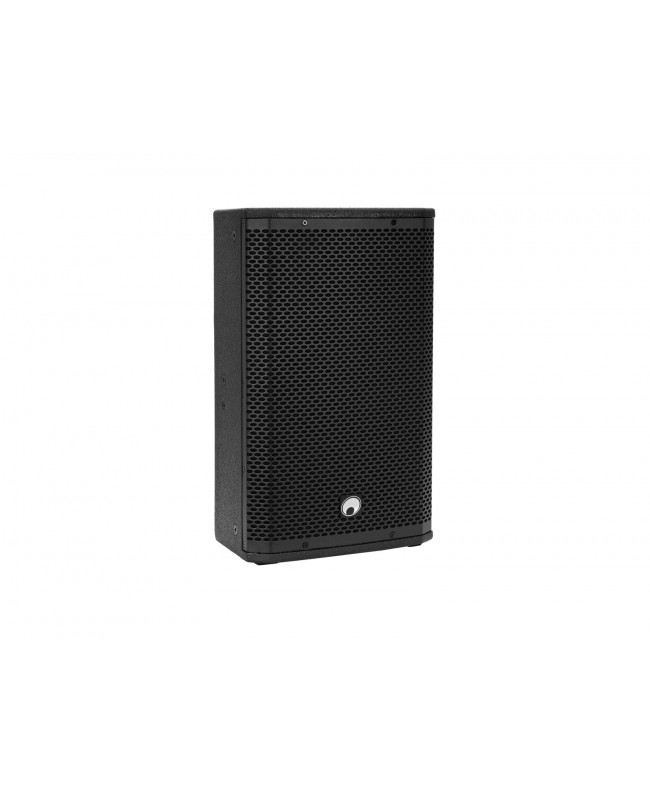

• Black metal grille with acoustic foam
• Rugged carrying handle

Scope of delivery

• 1 x compact cabinet speaker
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 230 V AC, 50 Hz
• Power consumption: 350 W
• Power connection: Mains input via IEC (M) power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 2 A fuse replaceable
• Power: Program: 400W LF, Rated: 200W RMS LF, Program: 80W HF, Rated: 40W RMS HF
• Frequency range: 70 - 20000 Hz
• Max. SPL: 119 dB
• DSP: Digital signal processor
• DSP presets: MUSIC; LIVE; CLUB; VOICE
• Dispersion angle: 90° x 60°
• Cooling: Passive convection cooling
• Low cut: 100Hz, switchable
• Control: Bluetooth
• Bluetooth: With stereo link (TWS)
• Bluetooth device name: OMNITRONIC PAS-210A MK4
• Range: Bluetooth: range up to 10m in buildings
• Attachment system: Dual flange:
• Flying points: 12 x M8 thread; 4 x M10 thread
• Circuitry: Class D Biamp

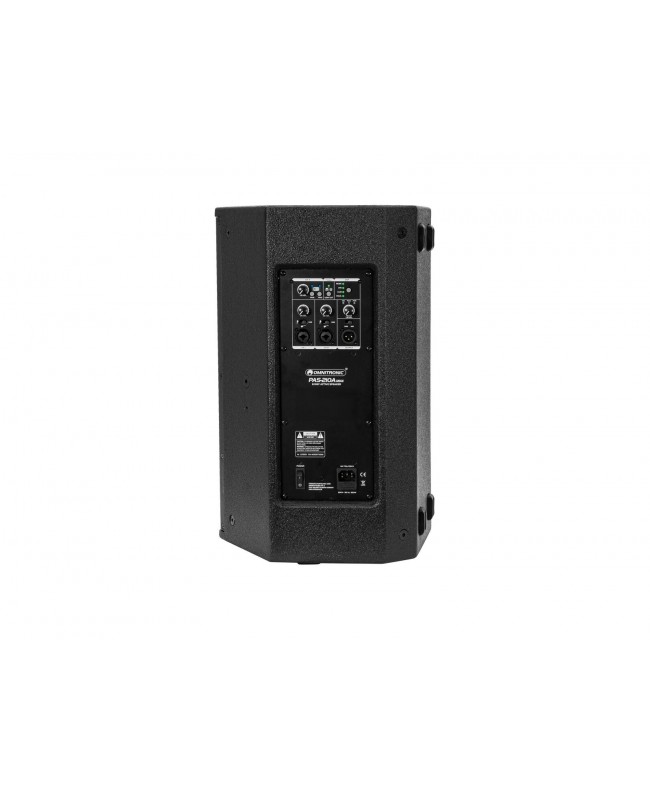

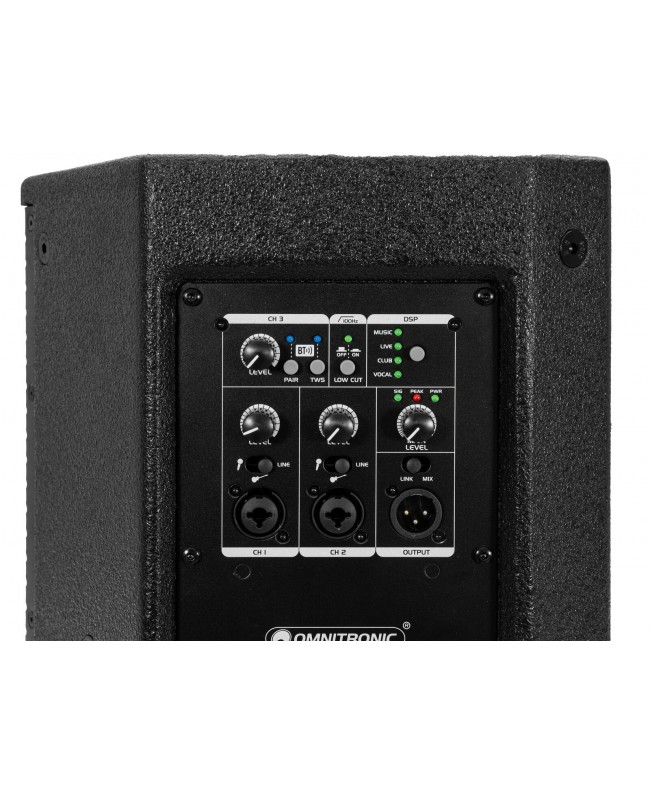

• Control elements: Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch
• Controls: Limiter; power on/off transients
• Status LED: Power, signal, peak, low cut, pairing; stereo, DSP presets
• Connections: Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR (M) mounting version

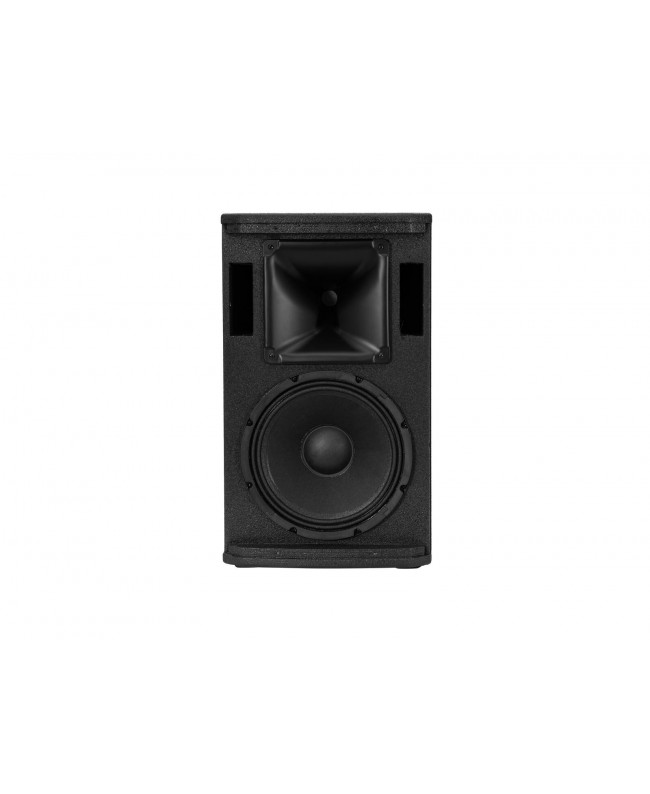

• Speaker: 1 x woofer 10 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2, 1 x tweeter 1 with ferrit magnet, Voice coil compression tweeter highs 1.35
• Type of speaker: Compact cabinet speaker
• Type of construction: Vented
• Carrying handle: 1 pc/pcs
• Material: Plywood multi-layer glued, 12 mm
• Color: Black
• Dimensions: Width: 31 cm, Depth: 52 cm, Height: 28 cm
• Weight: 13.15 kg
