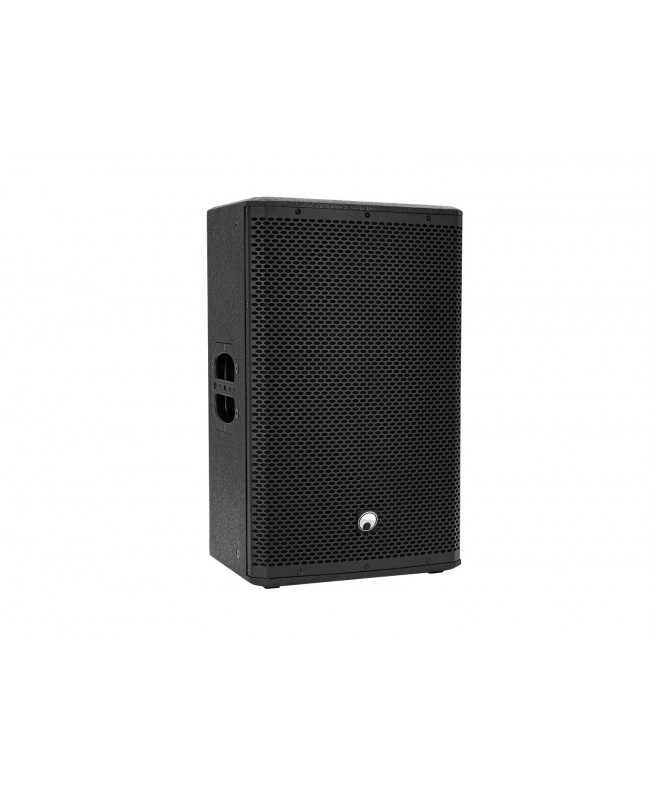

Omnitronic PAS-212A MK4 2-way Top, active, DSP, BT

• Active PA speaker system for touring applications and permanent installations
• Optimized for combination with PAS subwoofers
• DSP-controlled biamp amplifier (class D)

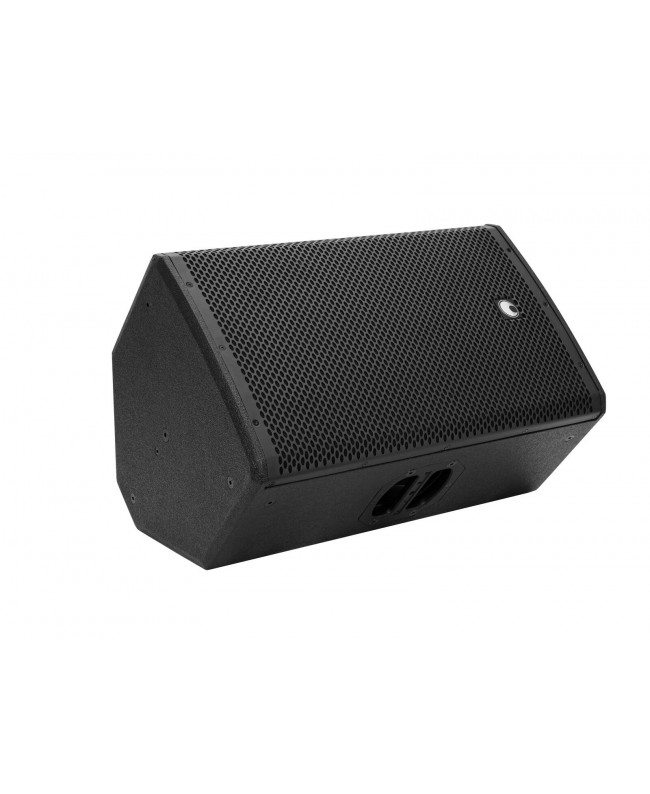

• Trapezoidal, multi-functional multiplex cabinet with monitor shape
• Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
• Digital signal processor
• DSP presets: MUSIC; LIVE; CLUB; VOICE
• The device is cooled by cooling fan
• Control via Bluetooth
• Bluetooth: operating range up to 10m
• Dual flange
• With rigging points

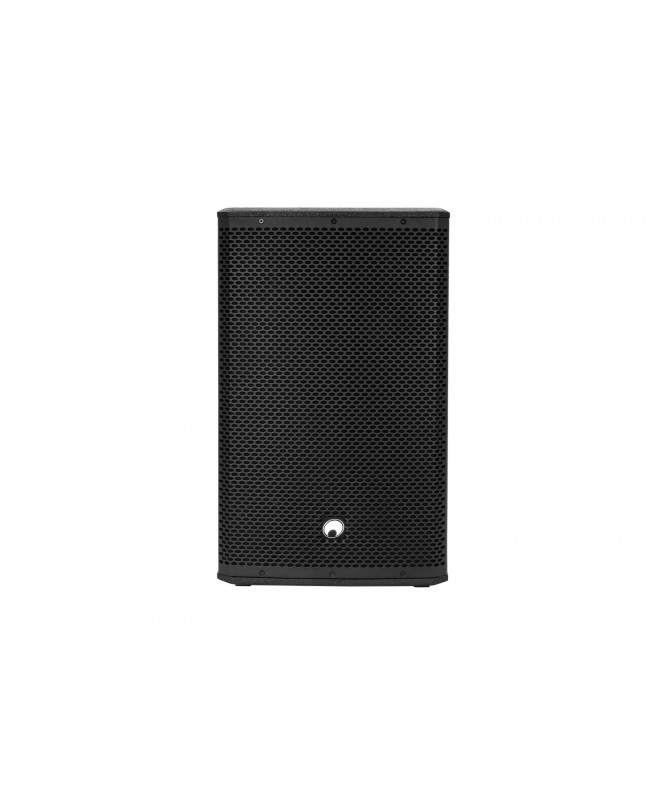

• Black metal grille with acoustic foam
• 2 Rugged carrying handles

Scope of delivery

• 1 x compact cabinet speaker
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 230 V AC, 50 Hz
• Power consumption: 650 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 4 A fuse replaceable
• Power: Program: 500W LF, Rated: 250W RMS LF, Program: 100W HF, Rated: 50W RMS HF
• Frequency range: 60 - 20000 Hz
• Max. SPL: 123 dB
• DSP: Digital signal processor
• DSP presets: MUSIC; LIVE; CLUB; VOICE
• Dispersion angle: 90° x 60°
• Cooling: 1 x cooling fan
• Low cut: 100Hz, switchable
• Control: Bluetooth
• Bluetooth: With stereo link (TWS)
• Bluetooth device name: OMNITRONIC PAS-212A MK4
• Range: Bluetooth: range up to 10m
• Attachment system: Dual flange:
• Flying points: 12 x M8 thread; 4 x M10 thread
• Circuitry: Class D Biamp

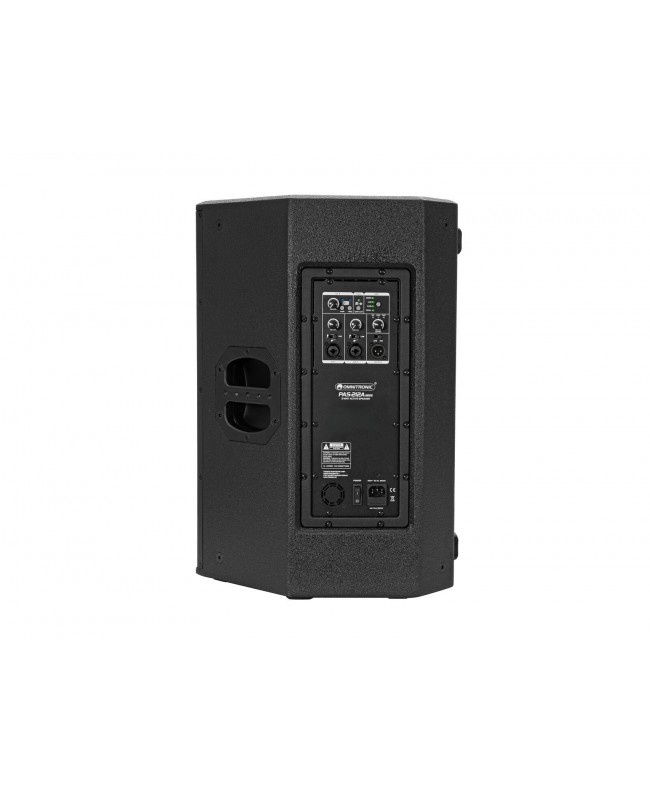

• Control elements: Power switch, Master control, level control per channel, Input sensitivity switch, source selector; connect, low cut switch
• Controls: Limiter; power on/off transients
• Status LED: Power, signal, peak, low cut, pairing; stereo, DSP presets
• Connections: Input: Mic-Line-Hi.Z via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 1 x 3-pin XLR (M) mounting version

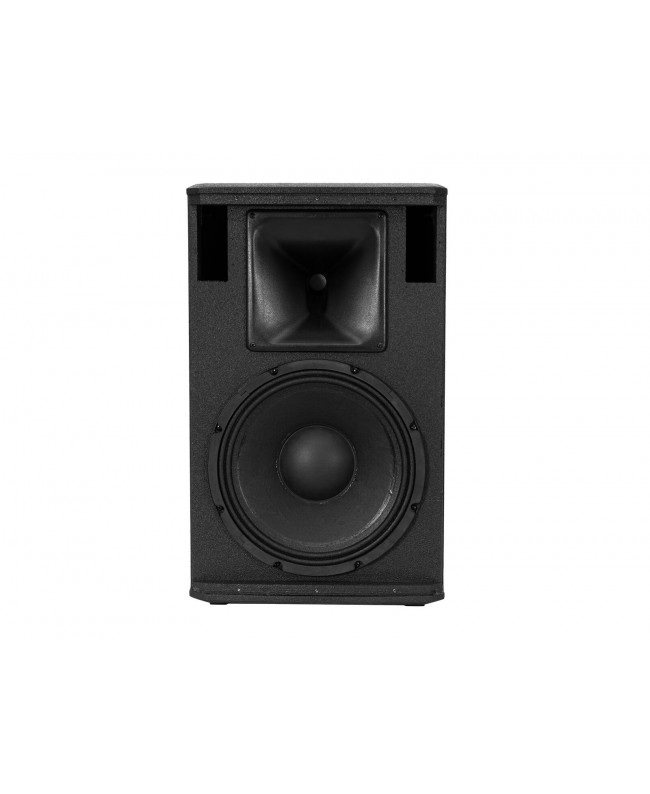

• Speaker: 1 x woofer 12 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 3, 1 x tweeter 1 with ferrit magnet, Voice coil compression tweeter highs 1.75
• Type of speaker: Compact cabinet speaker
• Type of construction: Vented
• Carrying handle: 2 pc/pcs
• Material: Plywood multi-layer glued, 15 mm, painted
• Color: Black
• Dimensions: Width: 36.5 cm, Depth: 59 cm, Height: 38 cm
• Weight: 20.55 kg
