Elokance e12A


€666.00
Tax included

800 W high-end professional active 2- way PA loudspeaker with 12 woofer, DSP


Out of Stock

Free shipping


wishlist

Elokance e12A

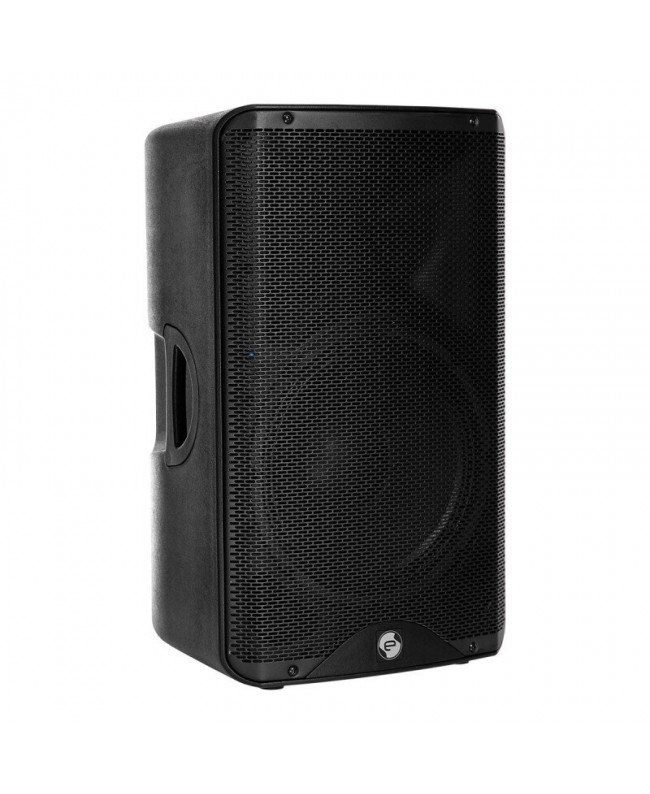

Professional high-end 2-way bass-reflex active loudspeaker with 12 and #34; woofer and 1 and #34; tweeter, equipped with a Class-D amplifier with DSP for a power of 800 W, as well as a Bluetooth receiver for streaming music from smartphones or tablets.

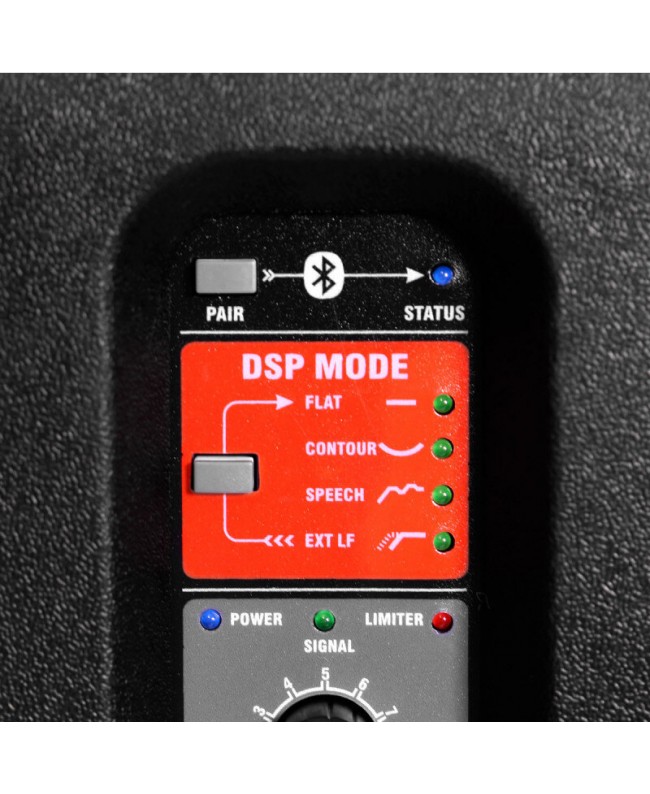

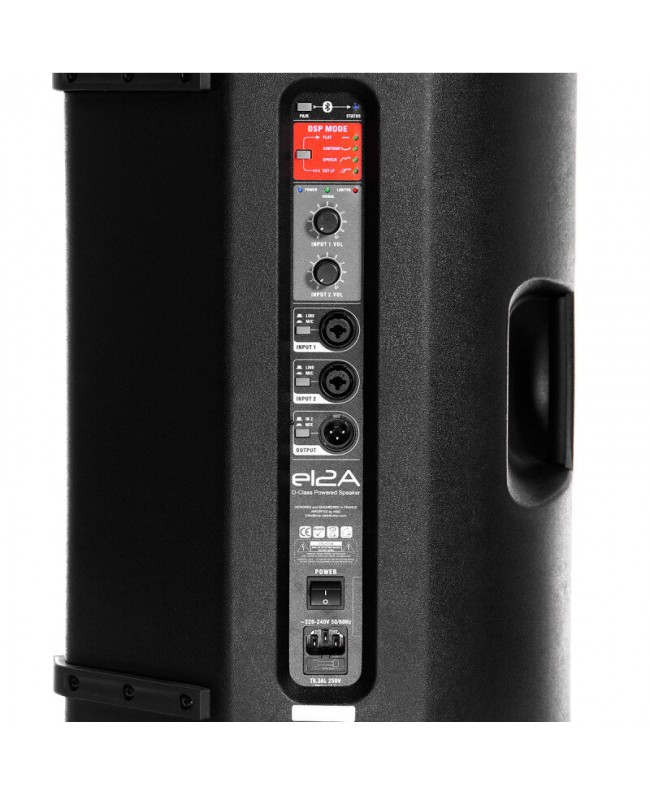

Very versatile, it offers different types of connectors: 2 MIC / line inputs on Combo jacks with independent level settings and a male XLR output. DSP mode allows you to switch between the four presets: Flat, Contour, Speech or Ext LF.

Benefiting from a robust, yet relatively lightweight construction, the e12A loudspeaker is perfectly at home in touring. Can be used both horizontally and vertically.

Technical characteristics

  • Woofer: 12 / 304 mm
  • Woofer magnetic element: ferrite
  • Woofer brand: custom made
  • Woofer voice coil: 3 / 76.2 mm
  • Tweeter: 1 / 25.4 mm
  • Tweeter magnetic element: ferrite and titanium
  • Tweeter brand: custom made
  • Tweeter voice coil: 2 / 50.8 mm
  • Dispersion (H x V): 90° x 75°
  • HF RMS power: 150 W
  • BF RMS power: 650 W
  • Bandwidth: 50 Hz - 20 kHz -10 dB
  • DSP settings: 4 presets
  • Max. SPL: 126 dB / 136 dB peak
  • Input impedance: 20 kohm

Class-D amplifier

  • Input connection system: Combo
  • Output connection system: XLR male
  • Body structure: plastic / ABS
  • Finish: black / black
  • Speaker type: bass-reflex
  • Dimensions (W x H x D): 36.5 x 36 x 61 cm
  • Weight: 21.5 kg
