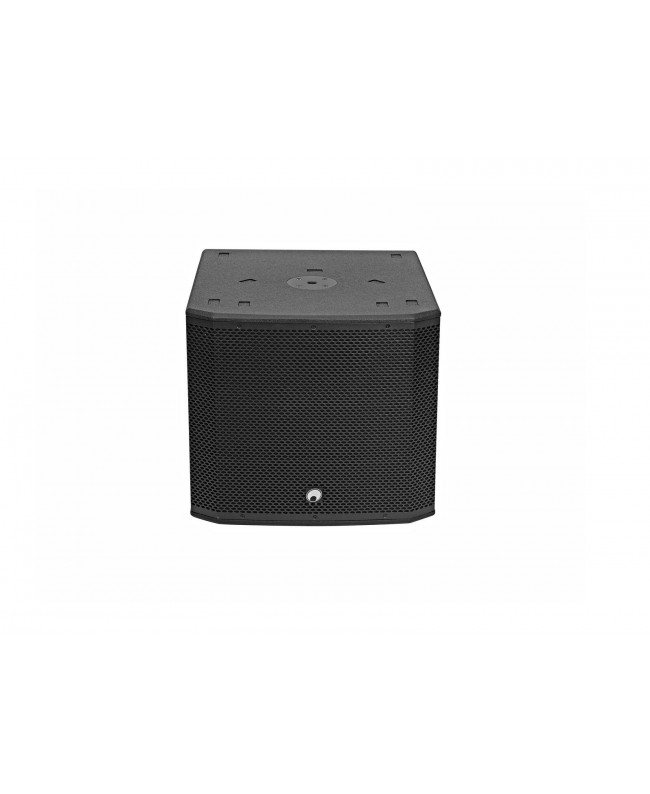

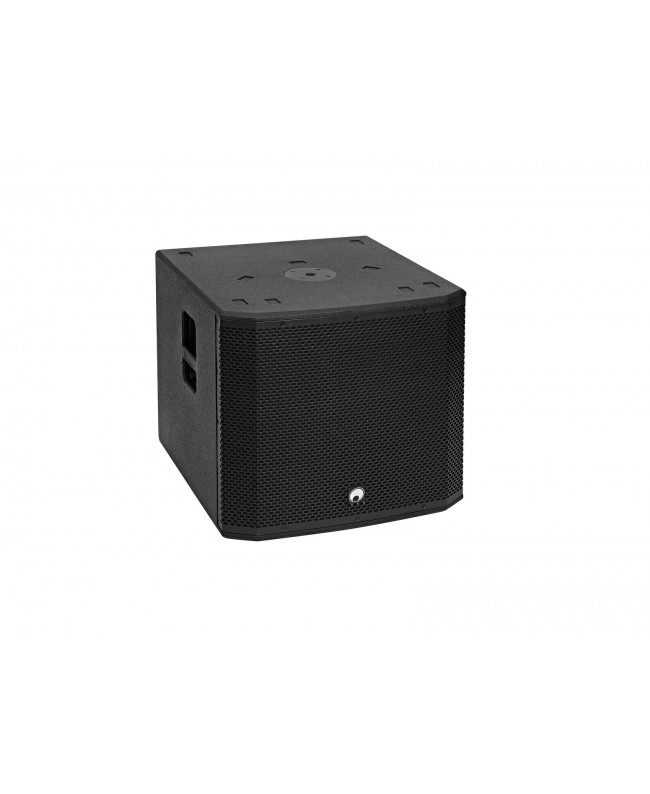

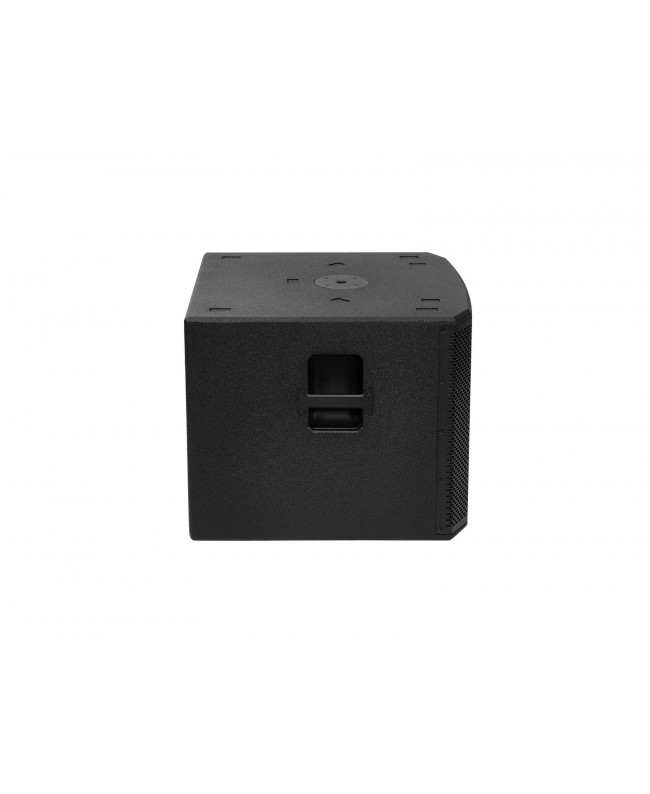

Omnitronic PAS-151A MK4 Subwoofer, active, DSP

• Active PA subwoofer for touring applications and permanent installations
• XLR outputs with switchable high-pass filter, 120 Hz
• Digital signal processor
• DSP presets: FLAT; KICK; DEEP
• The device is cooled by cooling fan
• Black metal grille with acoustic foam
• 2 Rugged carrying handles
• 4 x wheels optional

Scope of delivery

• 1 x bass
• 1 x power cord
• 1 x user manual

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1100 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 8 A fuse replaceable
• Power: Program: 1400W, Rated: 700W RMS
• Frequency range: 38 - 200 Hz
• Max. SPL: 128 dB
• DSP: Digital signal processor
• DSP presets: FLAT; KICK; DEEP
• Cooling: 1 x cooling fan
• Filter: Hi cut: 120 Hz; hi cut: 100 Hz

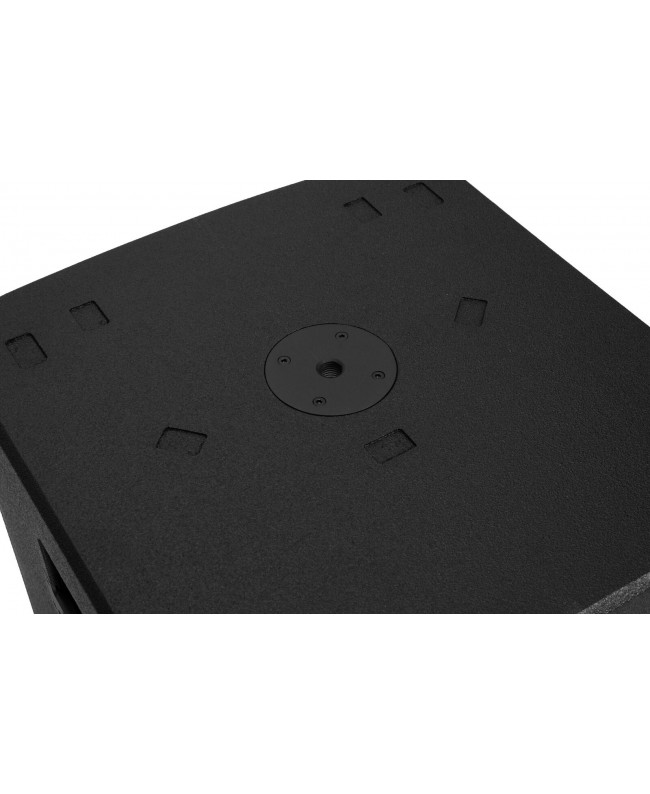

• Attachment system: 1x M20 thread
• Circuitry: Class D

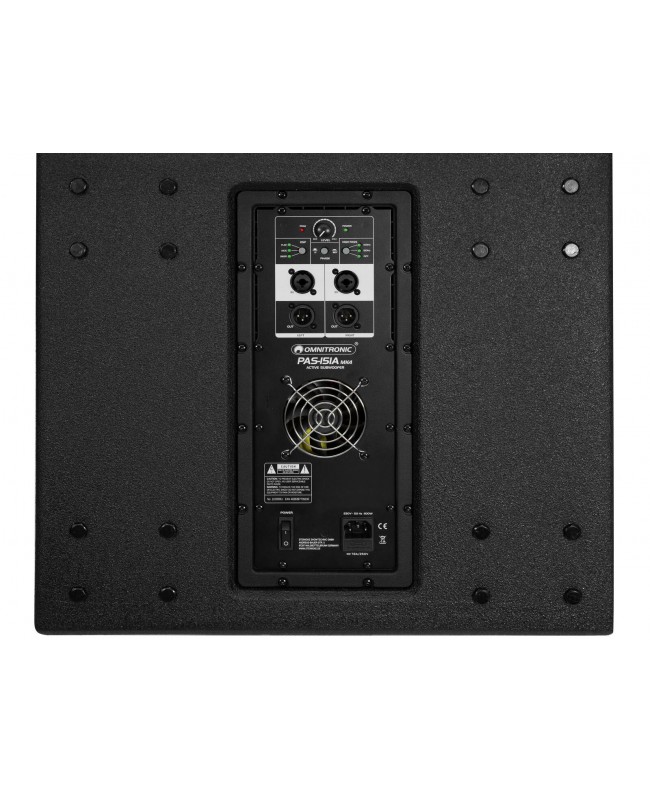

• Control elements: Power switch, Master control, Phase reversal switch, tone control, crossover frequency
• Controls: Limiter; power on/off transients
• Status LED: Power, peak, DSP presets
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 3-pin XLR (M) mounting version
• Speaker: 1 x woofer 15 with ferrit magnet, Basket material: aluminum, Conematerial: cardboard/paper, Voice coil lows 4
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 2 pc/pcs
• Transport aid: 4 x wheels optional
• Material: Plywood multi-layer glued, 15 mm
• Color: Black
• Dimensions: Width: 55 cm, Depth: 46.5 cm, Height: 52 cm
• Weight: 30.45 kg
