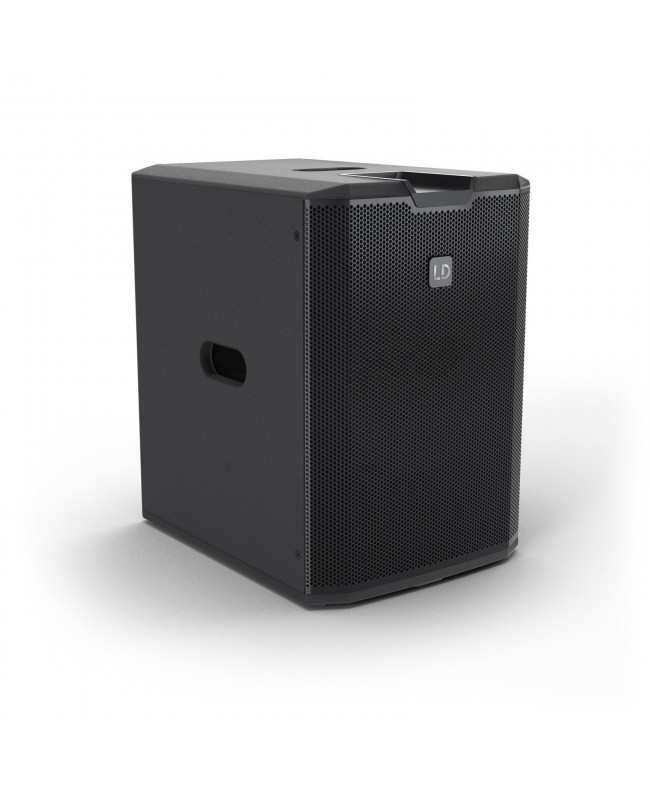

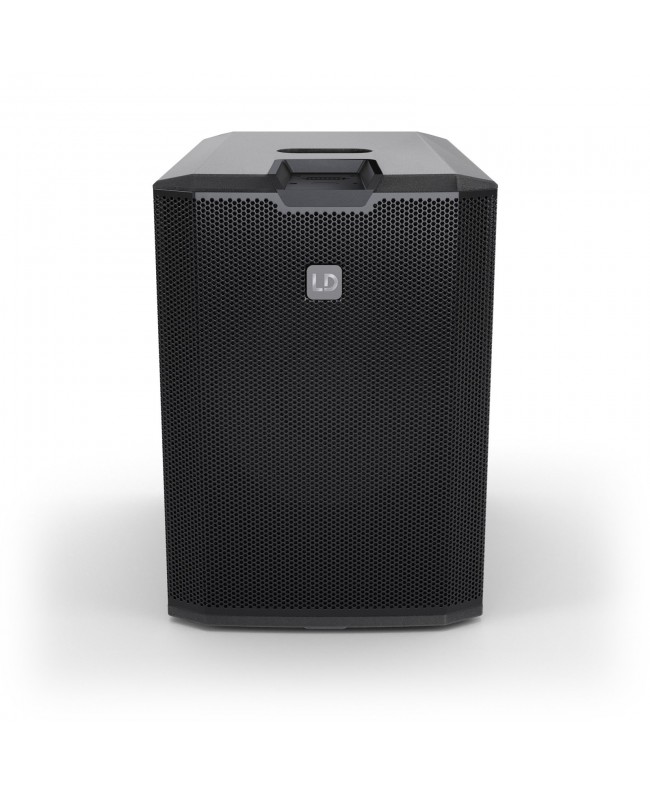

LD Systems MAUI 28 G3 SUB Active Subwoofers
  • -26%
  • New

LD Systems MAUI 28 G3 SUB


€1,287.00
€958.00 -26%
Tax included
Lowest price within the last 30 days: €958.00

Powered 12 Subwoofer for MAUI 28 G3


Qty

In Stock

Delivery

Do You want Your order by Friday, 17/07/2026? Order within 0 hours and 47 minutes

Free shipping


wishlist

LD Systems MAUI 28 G3 SUB



Crisper and more powerful bass with additional LD MAUI 28 G3 SUB subwoofer.

With the MAUI 28 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.

What does this mean?

Simply position the SUB next to your MAUI 28 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI 28 G3 and switch off the Cardioid preset.

Setting up the SUB with your MAUI 28 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.

Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.

The MAUI 28 G3 SUB Wfeatures the same design construction as the MAUI 28 G3 W subwoofer and will be the perfect addition to get your Low-End in control.

  • Powered 12 subwoofer with flow-optimised bass-reflex ports
  • 12 custom-designed woofer with deep bass down to 37 Hz
  • Preset for cardioid subwoofer configuration
  • DynX DSP (Gen.2) technology for distortion-free sound at maximum volume
  • Automatic set-up detection (MAIN / FOLLOWER)
  • Rugged subwoofer housing made out of polyurea-coated birch plywood
  • Shockproof front grille for ultimate speaker protection
  • Four ergonomic handles for easy handling
  • Directivity: Cardioid
  • Peak output power: 2060 W
  • RMS output power: 1030 W
  • Amp class: Class D
  • Max. SPL peak: 127 dB
  • Frequency response (-10 dB, rel. Avg): 37 - 20,000 Hz

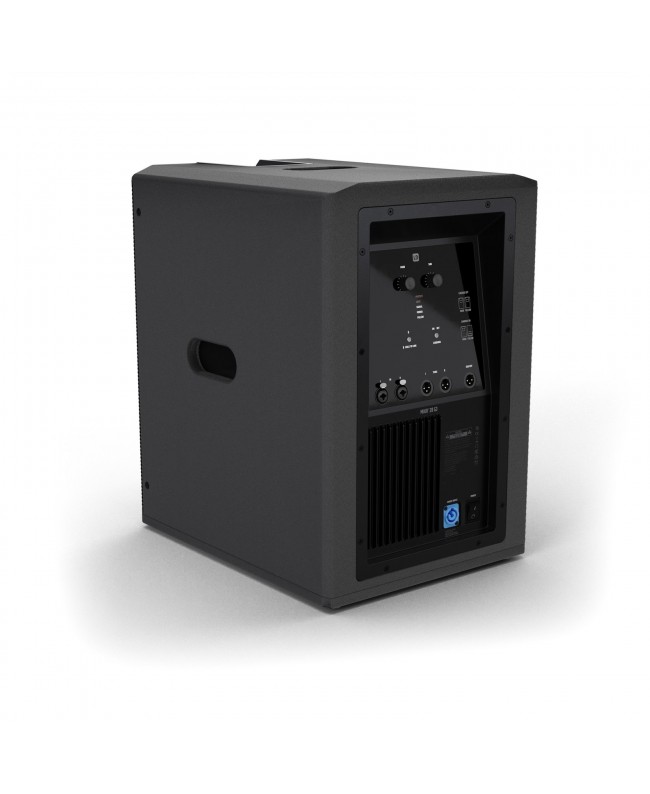

  • Number of inputs: 2
  • Input connector types: XLR combo socket
  • Number of outputs: 3
  • Output connector types: XLR combo socket
  • Protection features: Direct current
  • Protection features: Multiband Limiter
  • Protection features: Overheating
  • Protection features: Short circuit
  • Colour: Black
  • Bluetooth version: Bluetooth 4.2
  • Features: Audio Streaming (A2DP)
  • Features: True Wireless Stereo
  • Supported audio codecs: AAC
  • Supported audio codecs: SBC
  • Number of speaker outputs: 1
  • Speaker output connection type: XLR 3-pole male
  • Number of line outputs: 2
  • Line outputs connector type: XLR 3-pole female
  • Mixer: Yes
  • Mixer channels: 3
  • Audio processing: 3 band EQ (High, Mid, Low)
  • Audio processing: Presets
  • AD/DA converter bit depth: 24 Bit
  • AD/DA converter sampling rate: 48 kHz
  • Size: 12
  • Magnet: Ferrite
  • Voice coil: 3
  • Operation voltage: 100 V AC - 120 V AC / 50 - 60 Hz
  • Operation voltage: 220 V AC - 240 V AC / 50 - 60 Hz
  • Rated power: 400 W
  • Mains connector: Mains socket indoor power in male and powerCON
  • Mains fuse: T5AL/250 V
  • Design: Bass reflex
  • Number of handles: 4
  • Cabinet material: Birch multiplex
  • Material thickness: 15 mm
  • Front grille material: Aluminium
  • Cooling system: Convection cooling
  • Ambient temperature: 0 - 40 °C
  • Maximum air humidity (non-condensing): 80 %
  • Width: 370 mm
  • Height: 527 mm
  • Depth: 472 mm
  • Weight: 22.8 kg
  • Included accessories: Mains cable

LDM28G3SUB

Data sheet

Inputs onboard
2 inputs
Channels
3 channels
Color
Black
