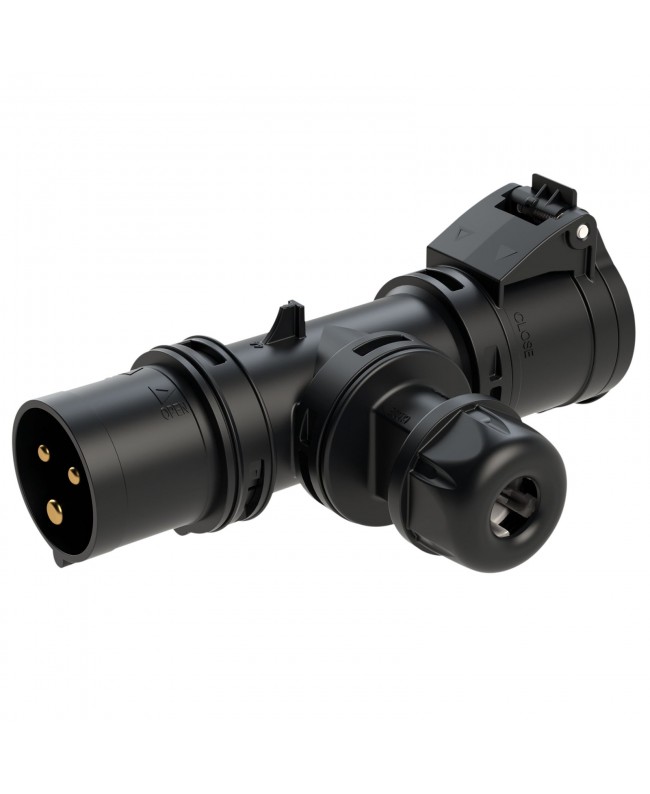

PCE CEE T-Connect 16 A / 240 V - 3P Male/Female 1x 3P CEE in - 1x 3P CEE out - 1x 3P terminal out with cable gland - IP44
  • New

PCE CEE T-Connect 16 A / 240 V - 3P Male/Female 1x 3P CEE in - 1x 3P CEE out - 1x 3P terminal out with cable gland - IP44


€42.50
Tax included

1X 3P CEE in - 1x 3P CEE out - 1x 3P terminal out with cable gland - IP44


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 12 hours and 9 minutes



wishlist

PCE CEE T-Connect 16 A / 240 V - 3P Male/Female 1x 3P CEE in - 1x 3P CEE out - 1x 3P terminal out with cable gland - IP44



The CEE T-Connect allows you to tap into a CEE power line and connect a 3P, 3x 2.5 mm² wire to a screw terminal. The CEE T-Connect acts as a pass through for the CEE power line and is very convenient for creating power distribution points for fixtures and lights in a power line distribution network, for example. A cable gland for the terminal output prevents the cable from being pulled out unintentionally and creating potentially dangerous situations. The IP44 rating makes it splashproof.

  • 3P CEE in and output and 3P terminal output
  • Up to 250 V AC and 16 A
  • IP44
  • Rated Current (A): 16 A
  • Power Connector In: CEE3P 16 A
  • Power Connector Out: CEE3P 16 A / Open End
  • Brand Connector 1: PCE
  • Pins: 3
  • Maximum Wire Size: 2.5 mm²
  • Height (mm): 74 mm
  • Length (mm): 182 mm
  • Width (mm): 106 mm
  • Weight: 0.271 kg
  • IP Rating: IP44
  • Material: Plastic
  • Colour: Black

91224

Data sheet

Color
Black
