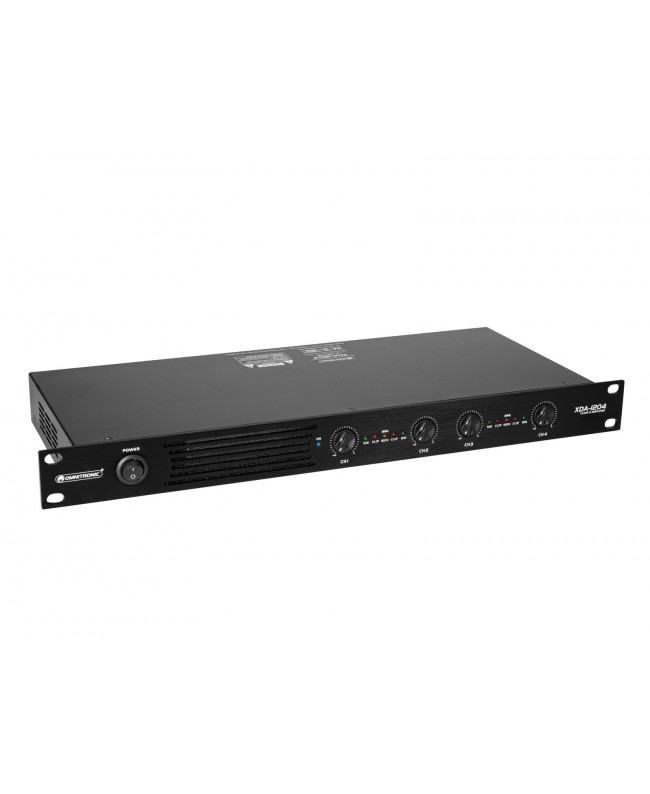

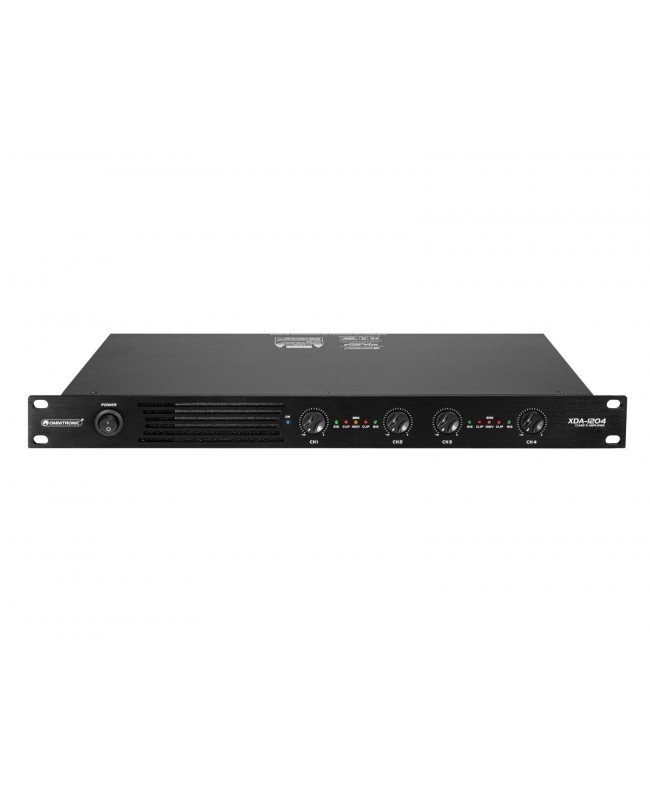

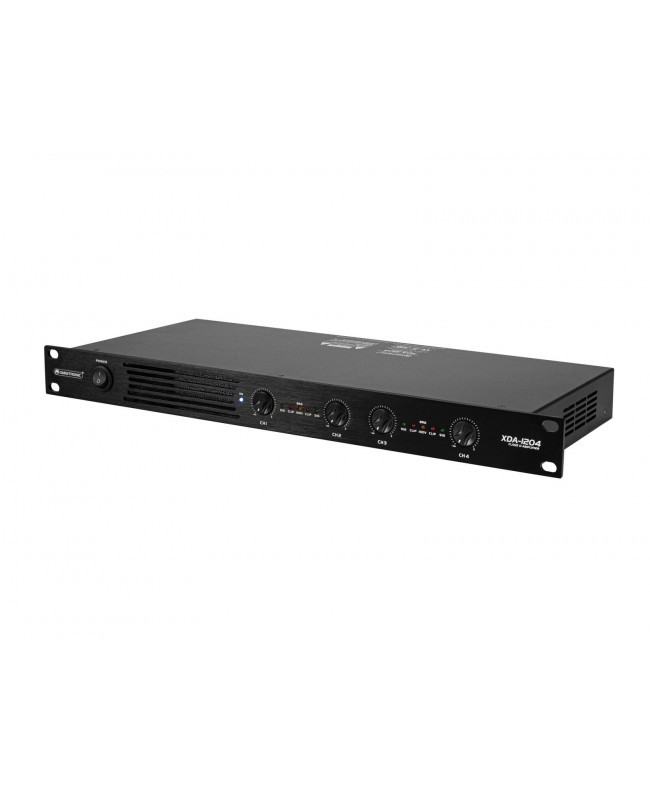

Omnitronic XDA-1204 4-channel Class D Amplifier

Scope of delivery

• 1 x amplifier
• 1 x user manual
• 1 x power cord
• 6 x screw plug-in terminal
• 4 x foot

• Power supply: 230 V AC, 50 Hz
• Power consumption: 1440 W
• Protection class: Protection class I
• Output power: 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms), 2 x 600 W RMS bridged (8 ohms), 2 x 600 W RMS bridged (100 V)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 8 A fuse replaceable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.05 % at 1 kHz
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Housing color: Black matte
• Circuitry: Class D

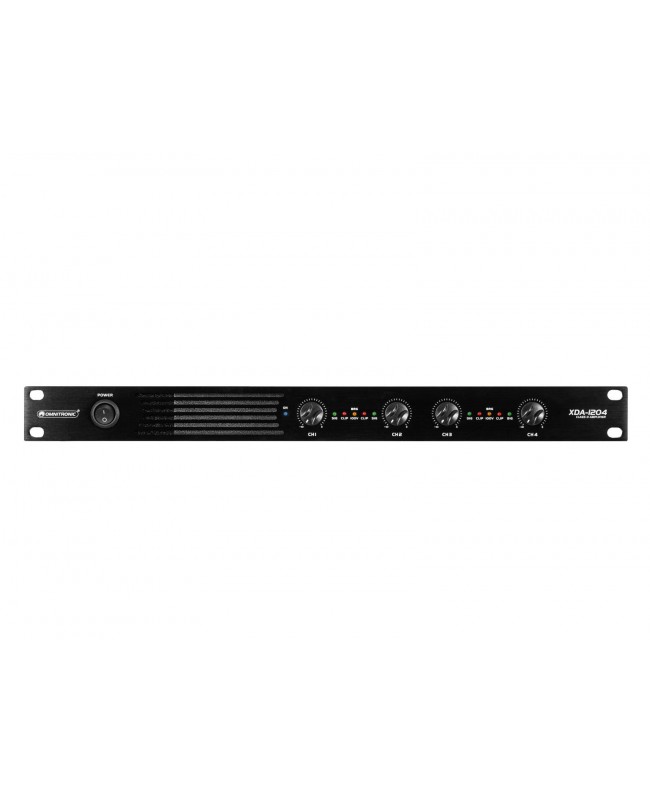

• Control elements: Power switch, mode switch (stereo/parallel/bridged), level control per channel
• Controls: Softstart; overheat; overload; short-circuit; DC voltage
• Status LED: Power, signal, clip, bridged

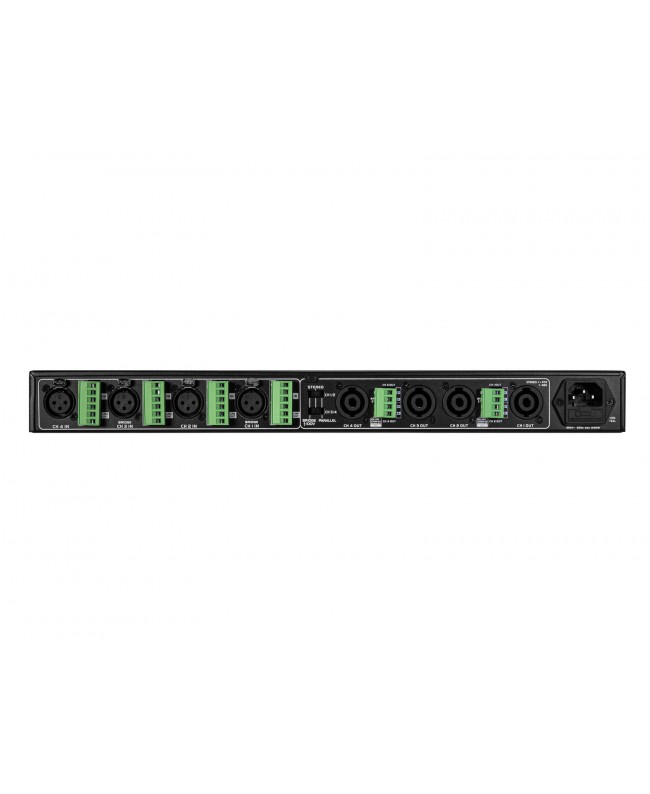

• Connections: Input: line via 4 x 3-pin XLR, Output: line via 4 x 3-pin XLR, Output: speaker via 4 x speaker built-in socket (F), Output: speaker via 4 x screw plug-in terminal, Input: line via 4 x screw plug-in terminal
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 20.5 cm, Height: 4.4 cm
• Weight: 3.33 kg
