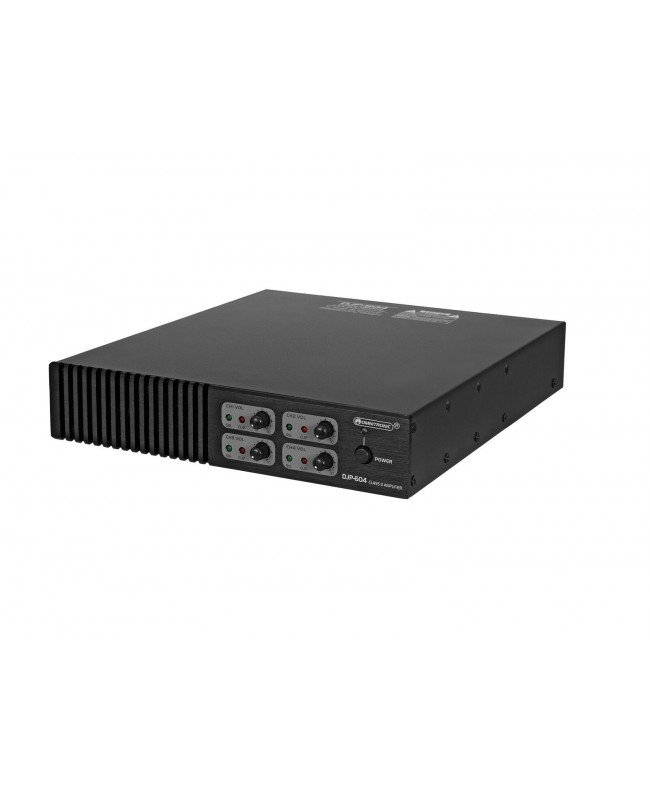

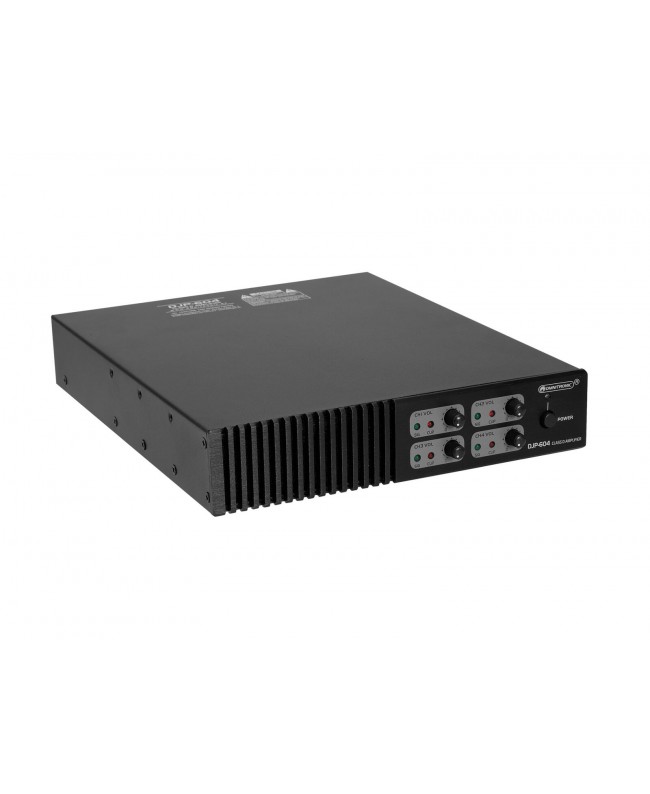

Omnitronic DJP-604 4-channel Class D Amplifier

Scope of delivery

• 1 x user manual
• 1 x amplifier
• 4 x foot
• 6 x angle
• 8 x screw
• 1 x power cord

• Power supply: 230 V AC, 50 Hz
• Power consumption: 185 W 1/8 power
• Output power: 4 x 150 W RMS (4 ohms), 4 x 80 W RMS (8 ohms)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20.000 Hz
• S/N ratio: 105 dB
• Impedance: Input: 20 kOhm , bal., Input: 10 kOhm , unbal.
• Housing color: Black
• Circuitry: Class D
• Slew rate: 20 V/µs
• Damping factor: 300

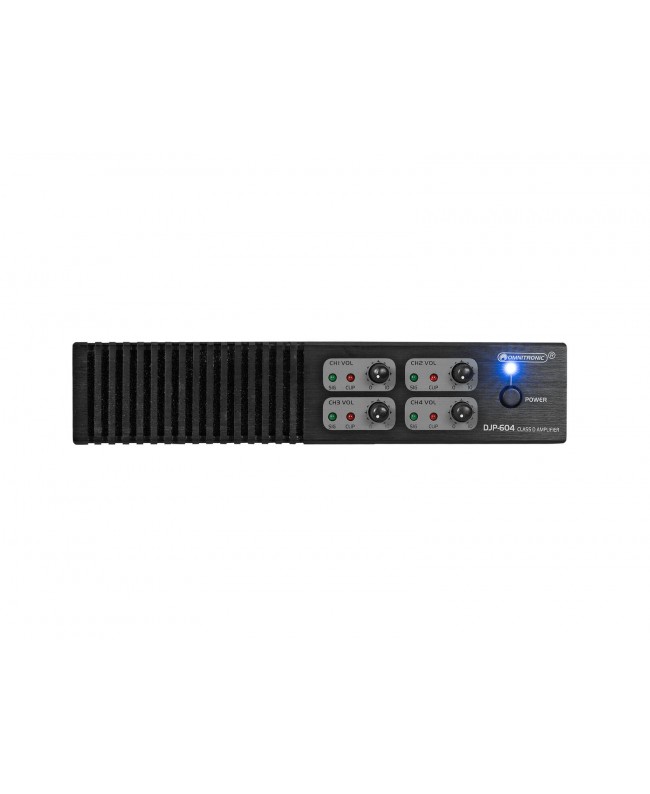

• Control elements: Power switch, level control per channel
• Controls: Softstart; short-circuit; overheat; overload; VHF; DC voltage
• Status LED: Power, signal, clip

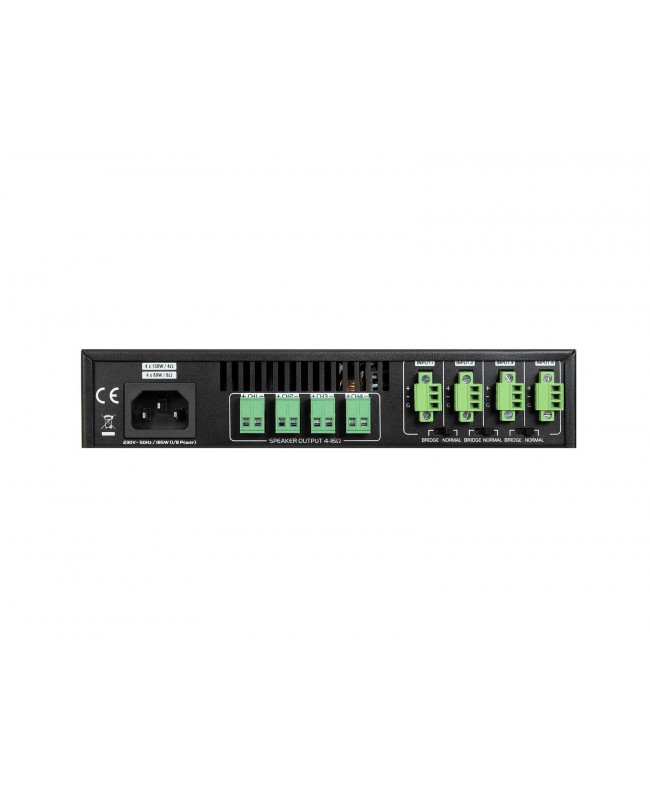

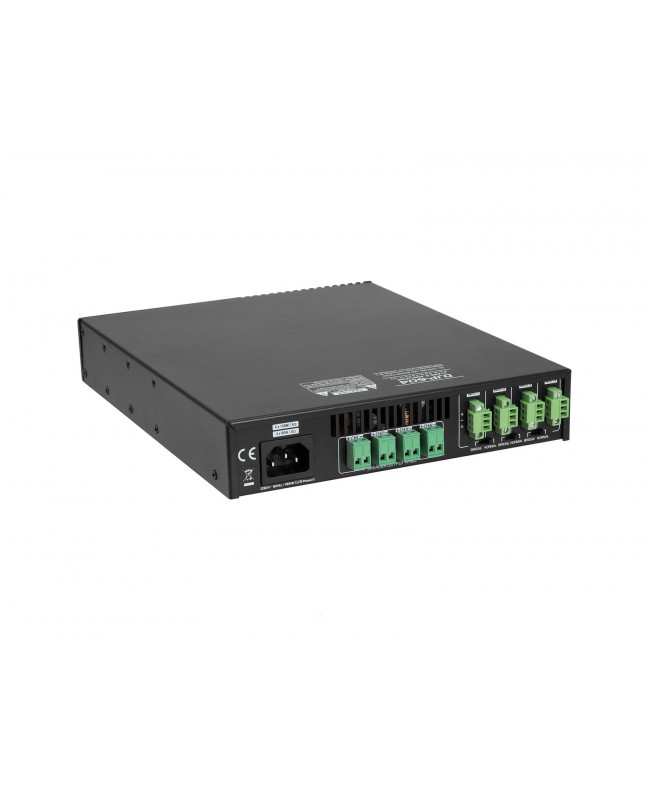

• Connections: Input: line via 4 x screw plug-in terminal, Output: speaker via 4 x screw plug-in terminal
• Material: Metal
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible
• Dimensions: Width: 21.4 cm, Depth: 26.5 cm, Height: 4.4 cm
• Weight: 2.46 kg
