Omnitronic EPA-100BT Mixing Amplifier


€123.00
Tax included

19 Mixing amplifier with audio player, Bluetooth and 2 x 50 W power


Qty

Available upon request

Free shipping


wishlist

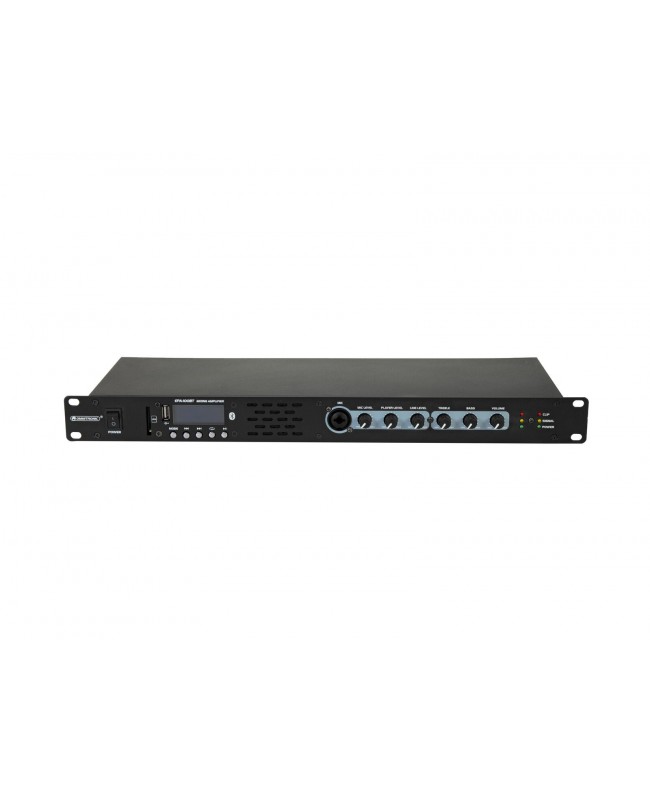

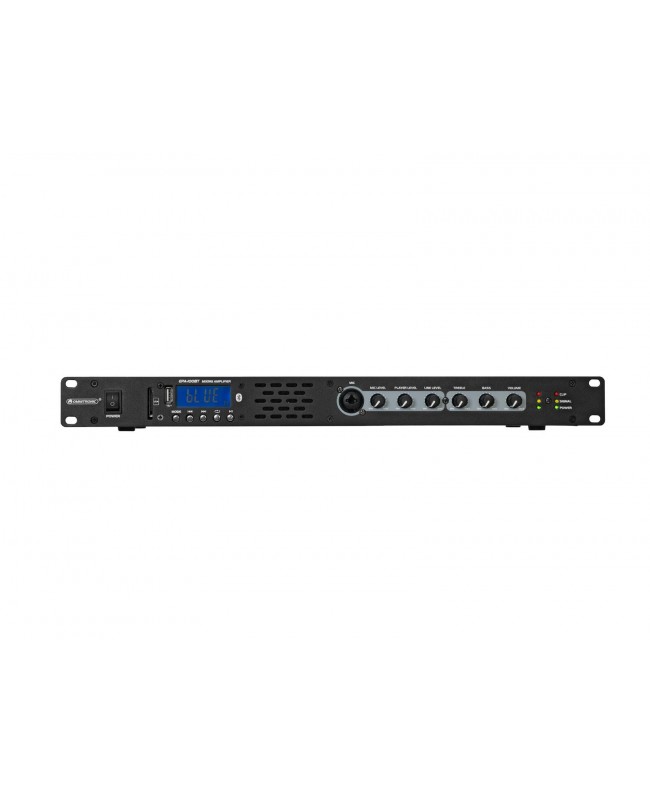

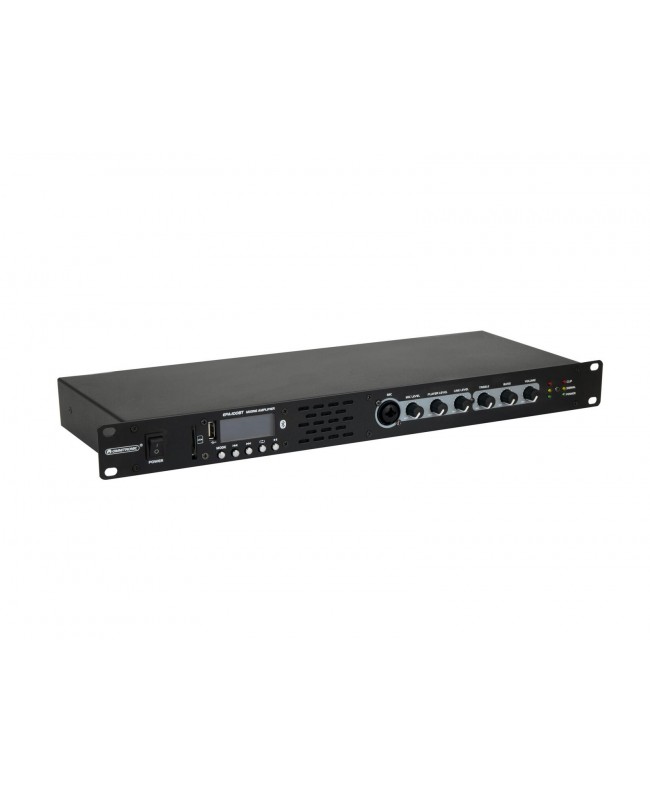

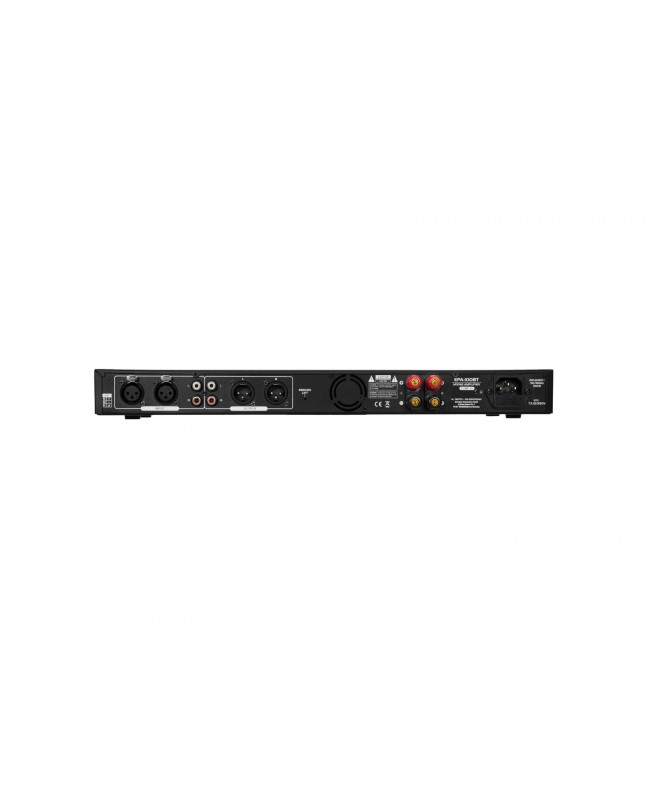

Omnitronic EPA-100BT Mixing Amplifier



The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.

  • Built-in audio player with USB port and SD card slot
  • Adjustable stereo line input via XLR and RCA jacks
  • Adjustable microphone input on the front panel
  • Controls for volume, bass and treble
  • Stereo line output via XLR and RCA jacks
  • Screw terminals for low-impedance speakers
  • Efficient Class D technology
  • Extremely low weight and height due to integrated switch mode power supply
  • (19) 48.3 cm rack installation possible 1 U
  • The device is cooled by cooling fan
  • Monochrome LCD display
  • For application areas such as: Trade fair and shop fitting; sports centres/gyms; restaurants, bars and hotels

audio player

  • Control via Bluetooth
  • Bluetooth: operating range up to 10m

Scope of delivery

  • 1 x amplifier
  • 1 x power cord
  • 1 x user manual
  • 1 x declaration of conformity
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 100 W
  • Output power: 30 W RMS (8 ohms), 50 W RMS (4 ohms)
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Frequency range: 20 - 20000 Hz
  • Cooling: Cooling fan
  • Circuitry: Class D
  • Display type: Monochrome LCD display
  • Control elements: Groundlift selector
  • Controls: Limiter
  • Status LED: Power, signal, clip
  • Connections: Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 2 x 3-pin XLR, Input: line via 1 x stereo RCA, Output: line via 2 x 3-pin XLR, Output: line via 1 x stereo RCA, Output: speaker via screw terminal
  • Equalizer: Master: 1 x 2-band tone control stereo
  • Housing design: (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 48.3 cm, Depth: 21 cm, Height: 4.45 cm
  • Weight: 2.59 kg
  • Control: Bluetooth
  • Audio player: USB + SD + Bluetooth
  • Range: Bluetooth: range up to 10m
  • Carrier frequency: 2.4 GHz
  • Music format: WMA; MP3, WAV
  • Available storage media: USB devices/SD cards max. 32GB

10007078
