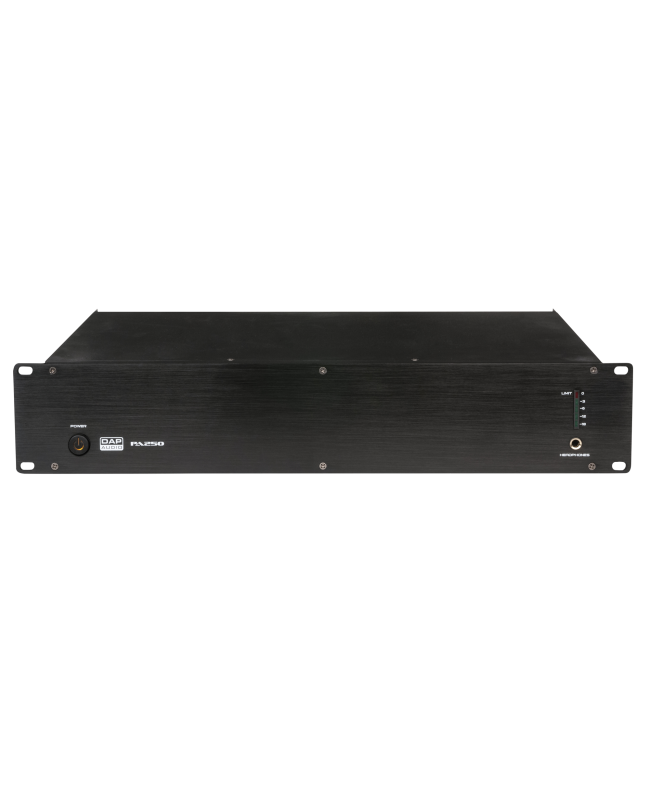

DAP PA-250

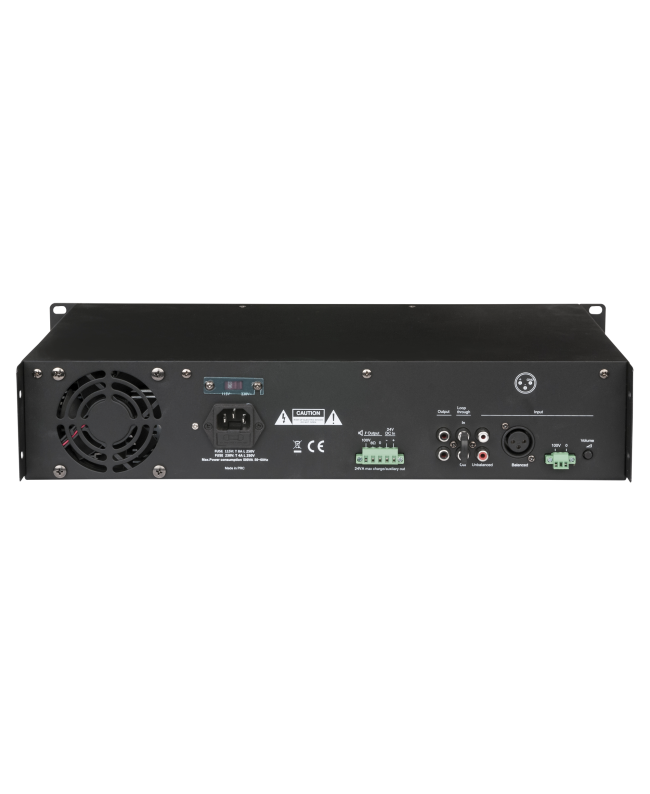

The DAP PA-250 is a 250-watt 100 V/8Ω mono amplifier. It is a reliable work horse for powering your passive PA speaker system. An external audio source can be connected through balanced XLR, RCA or terminal input connector. Besides, a loop through connector is available to connect external audio processing such as equalizer or feedback destroyer.

The PA-250 is designed to support a PA system that is intended for intercommunication and background music in public areas such as convention-halls, shopping centre, dining rooms, auditoriums and recreation areas. It has an integrated protective circuit to protect against overload and short circuit of the output. This results in very high reliability and easy installations without additional audio processors.

• Attention: do not connect 100 V and 8 Ohm speakers at the same time!
• Suitable for low/high impedance speakers (100 V/1x 8Ω)
• Loop through connection
• 24 V back up power input
• 19 2U rack design
• Power cable and green terminal connector included
