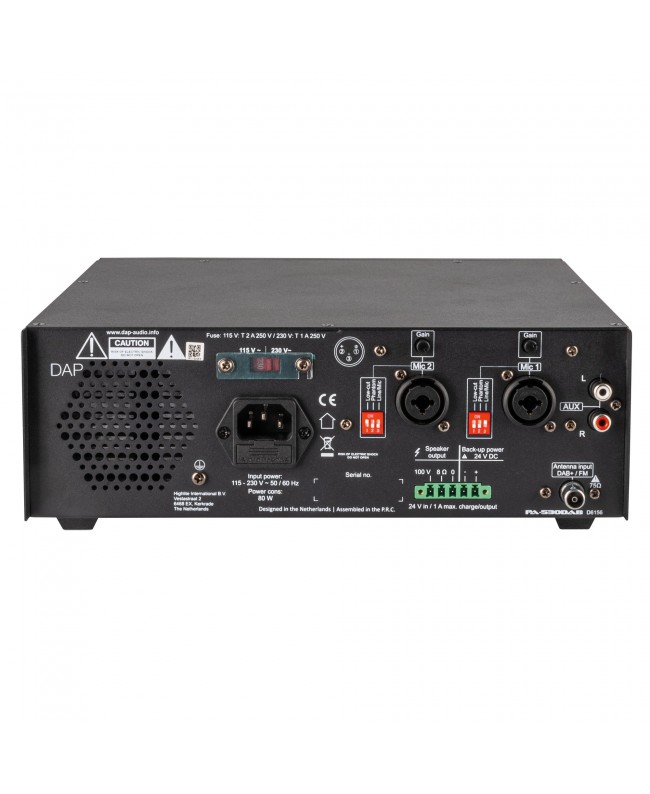

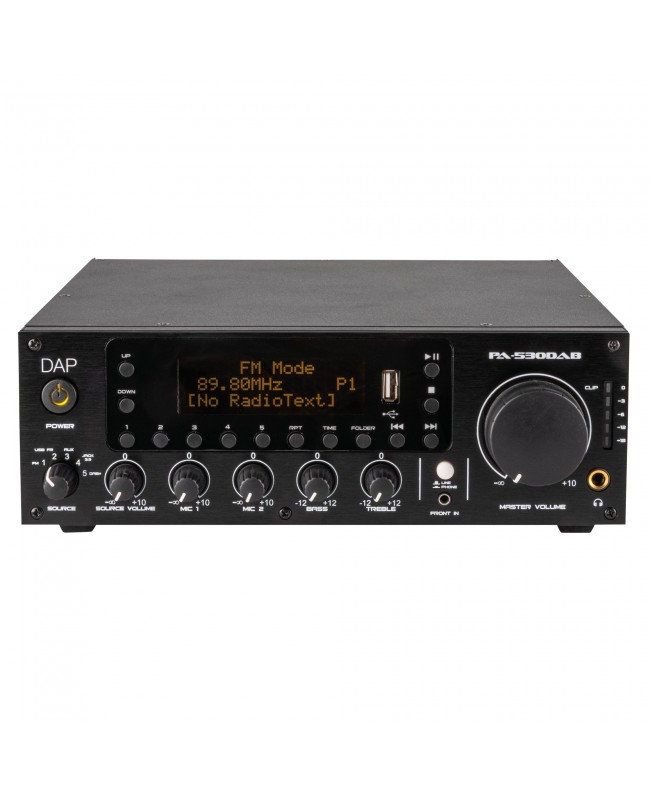

DAP PA-530DAB



The DAP PA-530DAB is a compact 30-watt 100 V/8Ω mono mixing amplifier with 5 selectable sources and 2 microphone inputs. Both microphone inputs feature phantom power and can also be used as line inputs. An integrated speech filter can be used to improve intelligibility.

The PA-530DAB has a line input on the rear and an easy accessible Mini-Jack input on the front for connecting MP3 players or mobile devices. It also has a built-in USB audio player and FM/DAB+ tuner with a large LCD screen that displays the active source, tuner information and ID3 tags. The built-in FM/DAB+ tuner can store up to 10 preset stations.

This 100 V mixer amplifier is suitable for small installations up to 30 W. It is designed to support a PA system that is intended for intercommunication or background music in public areas such as convention halls, shopping malls, dining halls, auditoriums and recreational areas. These amplifiers have an integrated protection to protect against overload and short circuit of the output. This results in very high reliability and easy installations without additional audio processors.

  • 30 W/100 V mono amplifier and multi media player
  • Play music via USB, FM/DAB+ tuner or external device
  • Two microphone inputs with phantom power and speech filter
  • LCD display for tuner information and ID3 tags
  • FM/DAB+ antenna and green terminal connector included
  • Power Amplifier RMS Output: 30 W
  • Output per Channel at 70/100 V at 1 kHz: 30 W
  • Output Channels: 1
  • Output Mode: Parallel
  • Output Connector: Terminal
  • Headphone Output: 1
  • Headphone Output Connector: TS unbalanced 6.3 mm
  • Mono Inputs: 2
  • Mono Input Connector: 3-pin XLR / TS unbalanced 6.3 mm
  • Stereo Inputs: 1
  • Stereo Input Connector: TRS balanced 3.5 mm
  • Auxiliary Inputs: 1
  • Auxiliary Input Connector: RCA
  • Transformer: 100 V
  • Supported Audio Files: MP3 / WAV
  • Supported Format: FAT16 / FAT32
  • Maximum Storage Size: 32 GB
  • Media Input/Output: USB-A
  • Playback Functions: Up (Skip) / Down (Skip) / Play / Pause / Stop / Time / Folder
  • Phantom Power: 18 V
  • Parametric Main Equalizer: 2 Bands
  • Main Output Equalizer Gain Range: 12 dB
  • Main Output Fixed Frequencies: 100, 12.000 Hz
  • Speech Filter Attenuation: 6 dB
  • Speech Filter Frequency: 300 Hz
  • BT: No
  • Tuner: FM / DAB+
  • FM Frequency Start: 87.5 MHz
  • FM Frequency End: 108 MHz
  • FM Antenna Impedance: 75 Ω
  • DAB+ Frequency Start: 174 MHz
  • DAB+ Frequency End: 230 MHz
  • User Presets: Yes
  • User Presets Capacity: 10
  • Display: 14-segment
  • Power Supply: 115-230 V AC 50/60 Hz
  • Backup Power Supply: 24 V DC
  • Power Consumption: 69 W
  • Fuse: 1 A
  • Power Connector In: IEC
  • Data Connector In: USB
  • Height (mm): 95 mm
  • Width (mm): 270 mm
  • Depth (mm): 262 mm
  • Installation Depth (Excl. Connector): 262 mm
  • Housing: Steel
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 6 kg
  • IP Rating: IP20 (indoor use only)
  • Amplifier Cooling: Axial fan
  • Chime: No
  • Electronic Protection: Overload / Short circuit
  • LED Indicators: Output level / Power
  • Included Cables: IEC cable
  • Included Accessories: FM Antenna / Green terminal connector / Rubber feet
