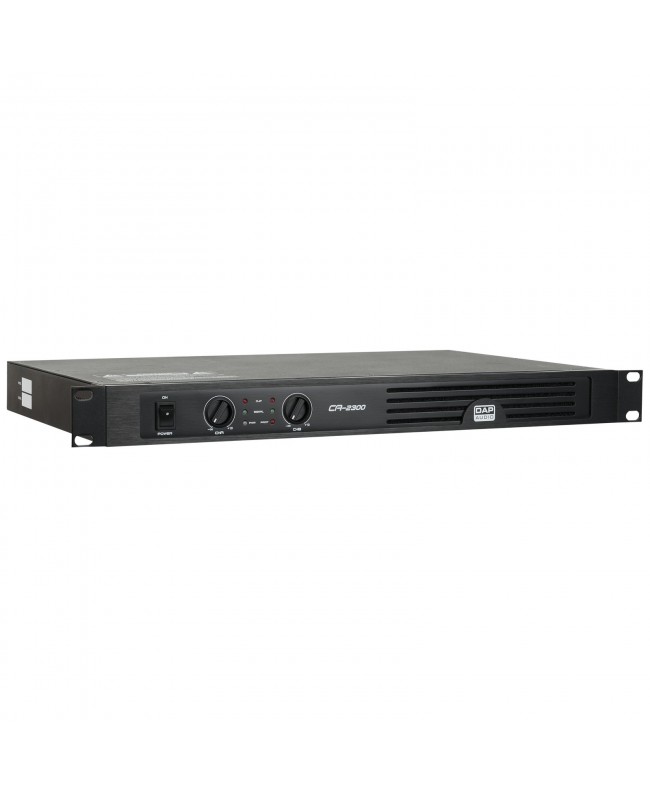

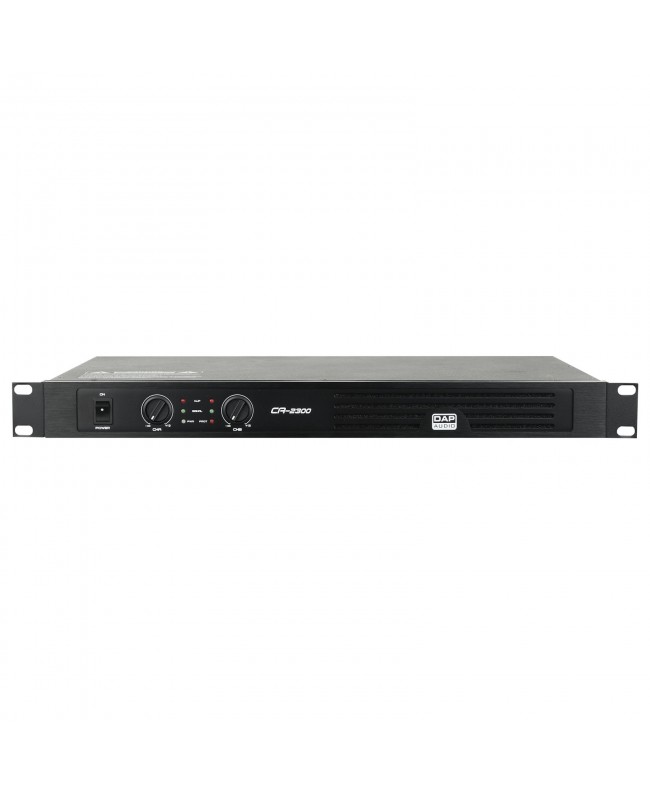

DAP CA-2300



The DAP CA-2300 is a 2x 300 watt amplifier for a compact 19-inch installation with a 1 unit height. Equipped with Class D technology and SMPS, the CA-2300 has all the necessary functionalities for today's user.

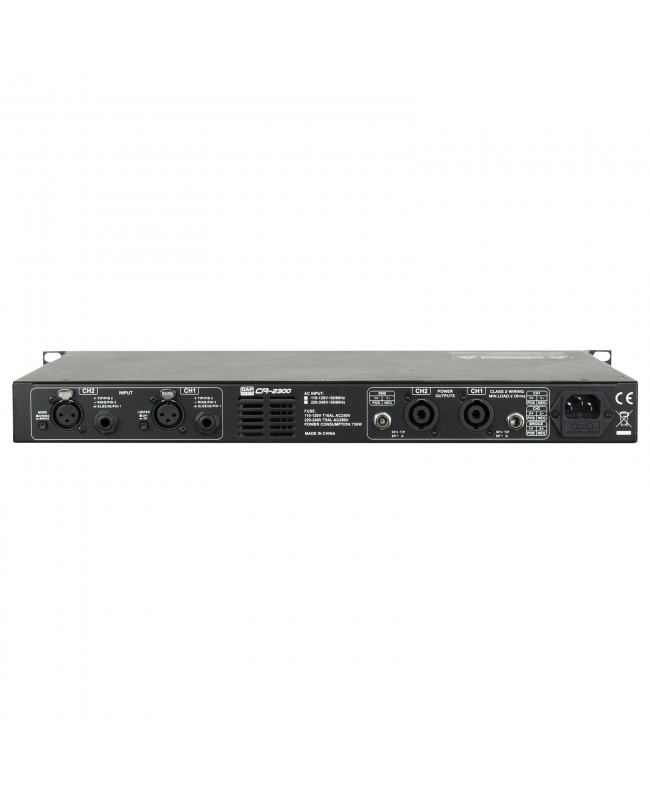

This 2-channel model has XLR and Jack inputs. Available outputs are speakON and 6.3 mm Jack with the option to switch between stereo and bridge mode. In addition, the gain is adjustable per channel.

When a channel signal is causing distortion, a LED signal is indicating you to decrease the source signal level. It is not only protected from clipping, but also from overloading and overheating due to soft start technology.

  • Class D amp, SMPT and Soft Start technology
  • Advanced protection circuits and indicator LEDs
  • Stereo and bridge mode
  • 1U suitable for 19 rack
  • 2 Ohms Stable: Yes
  • Output per Channel into 8 ohms at 1 kHz: 180 W
  • Output per Channel into 4 ohms at 1 kHz: 300 W
  • Bridge Output into 8 ohms at 1 kHz: 525 W
  • Bridge Output into 4 ohms at 1 kHz: 600 W
  • Output per Channel into 8 ohms from 20 Hz - 20 kHz: 180 W
  • Output per Channel into 4 ohms from 20 Hz - 20 kHz: 300 W
  • Bridge Output 8 ohms from 20 Hz - 20 kHz: 525 W
  • Bridge Output 4 ohms from 20 Hz - 20 kHz: 600 W
  • Output Channels: 2
  • Output Gain: 30 dB
  • Output Mode: Bridge / Stereo
  • Output Connector: Speaker Connector 4 pole / TS unbalanced 6.3 mm
  • Mono Inputs: 2
  • Mono Input Connector: 3-pin XLR / TRS balanced 6.3 mm
  • Mono Input Impedance: 20000 Ω
  • Unbalanced Mono Input Sensitivity: 11 dBv
  • THD Level %: 0.1%
  • Signal-to-noise Ratio: 98 dB
  • Slew Rate: 20 V/μs
  • Amp Technology: Class D
  • Damping Factor: 180 :1
  • Crosstalk: 70 dBu
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • DSP: No
  • Dynamics Processing: Limiter
  • Power Supply: 220-240 V AC 50 Hz
  • SMPS: Yes
  • Power Consumption: 595 W
  • Fuse: 5 A
  • Power Connector In: IEC
  • Amplifier Airflow: Front to back
  • Amplifier Cooling: Radial Fan
  • Height (mm): 44 mm
  • Width (mm): 484 mm
  • Length (mm): 281 mm
  • Installation Depth (Excl. Connector): 281 mm
  • Flightcase Size: 19
  • Rack Units: 1 U
  • Housing: Metal
  • Colour: Black
  • Finish: Powder Coating
  • Weight: 4.2 kg
  • IP Rating: IP20 (indoor use only)
  • Handles: No
  • Electronic Protection: Clip limiter (fixed) / DC voltage / Overheat / Overload / Short circuit / Softstart / Thermal
  • LED Indicators: Clip / Power / Protect / Signal
  • Included Cables: IEC cable

D4513

Data sheet
