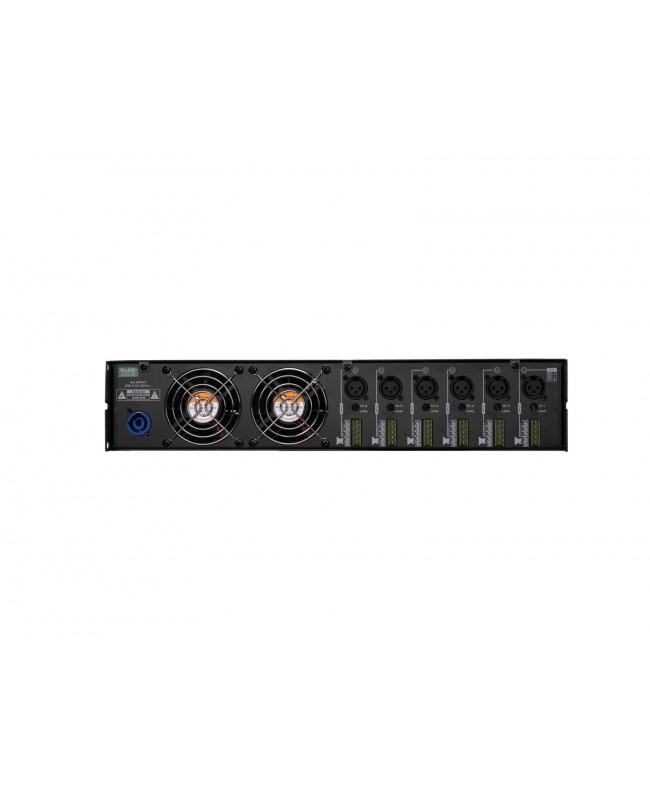

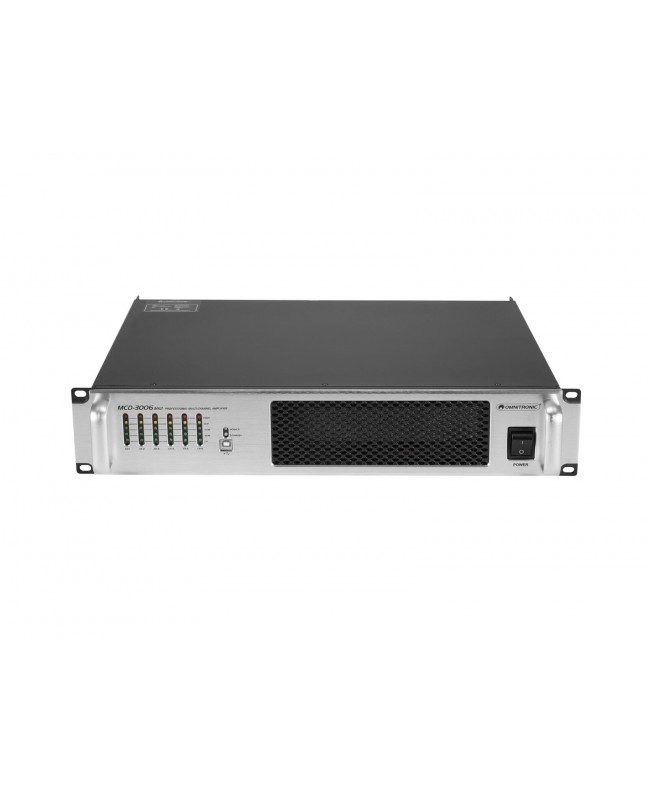

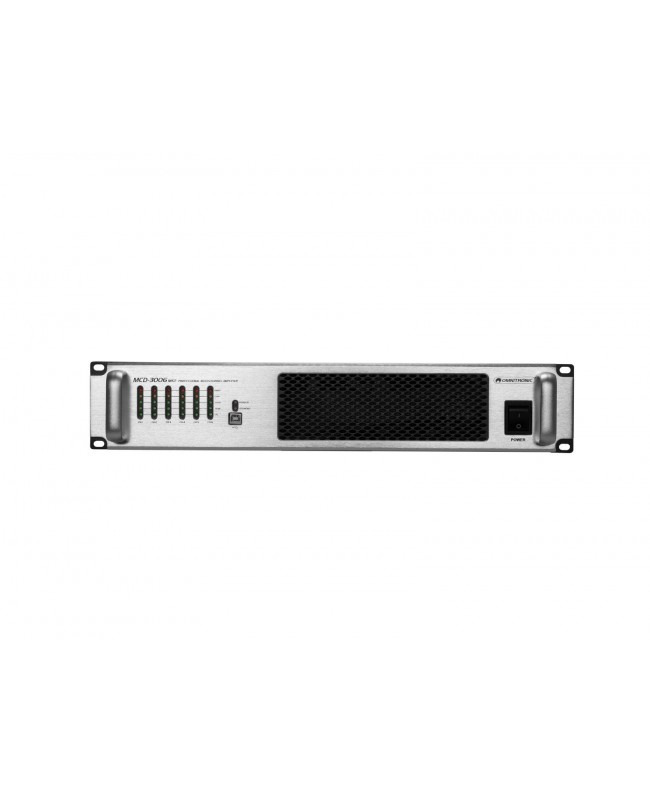

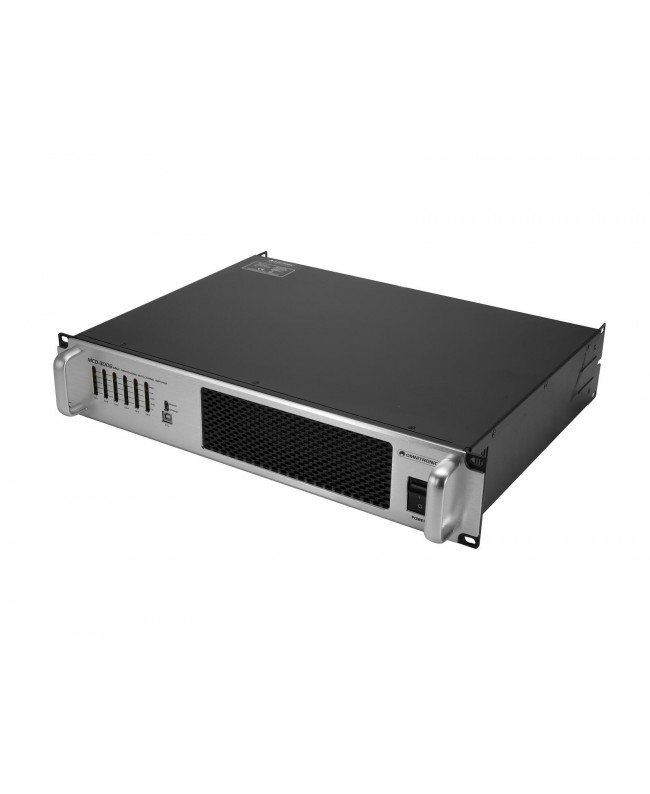

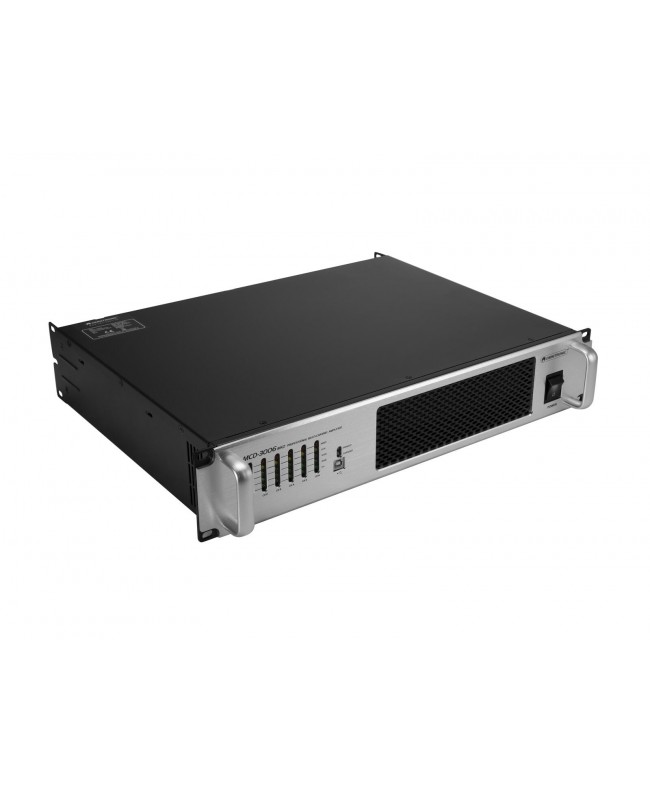

Omnitronic MCD-3006 MK2 6-Channel Installation Amplifier

• Power supply: 230 V AC, 50 Hz
• Power consumption: 525 W 1/8 power
• Output power: 6 x 500 W RMS (4 ohms), 6 x 250 W RMS (8 ohms)
• Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
• Frequency range: 22 - 25000 Hz
• S/N ratio: 120 dB
• THD: 0.003 % at 1 kHz
• Cooling: 2 x cooling fan , air flow from front to rear
• Impedance: Input: 22 kOhm , bal., Input: 12 kOhm , unbal.
• Gain: 26 dB
• Circuitry: Class D
• Slew rate: 10 V/µs
• Damping factor: 500
• Control elements: Power switch, level control per channel
• Controls: Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient
• Status LED: Power, level meter, clip, protect, standby
• Connections: Input: line via 6 x 3-pin XLR, Input: line via 6 x screw plug-in terminal, Link: speaker via 6 x screw plug-in terminal
• Max. level: Input: +2 V
• Housing design: (19) 48.3 cm rack installation 2 U
• Dimensions: Width: 48.3 cm, Depth: 38.8 cm, Height: 8.9 cm
• Weight: 9.05 kg

Scope of delivery

• 1 x amplifier
• 1 x power cord
• 6 x screw plug-in terminal
• 4 x foot
• 4 x screw
• 1 x user manual
