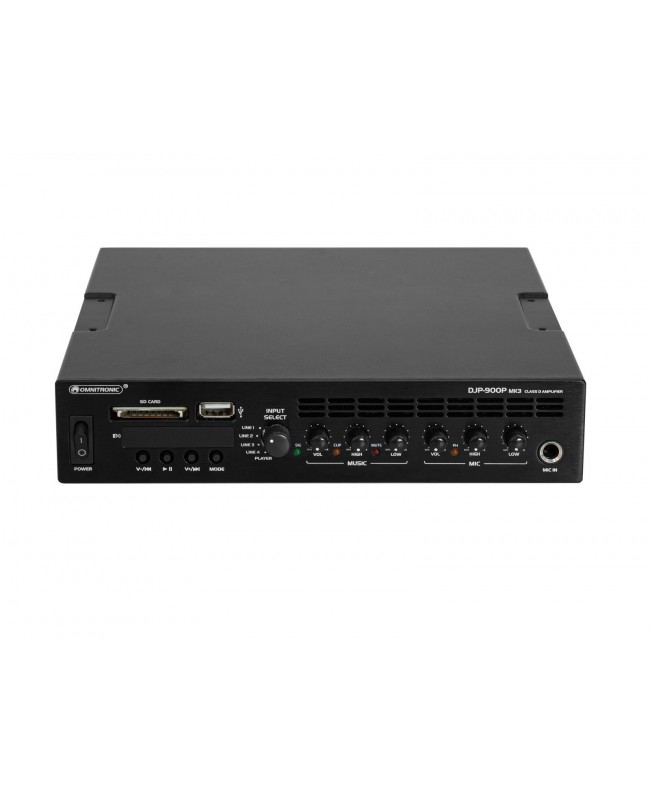

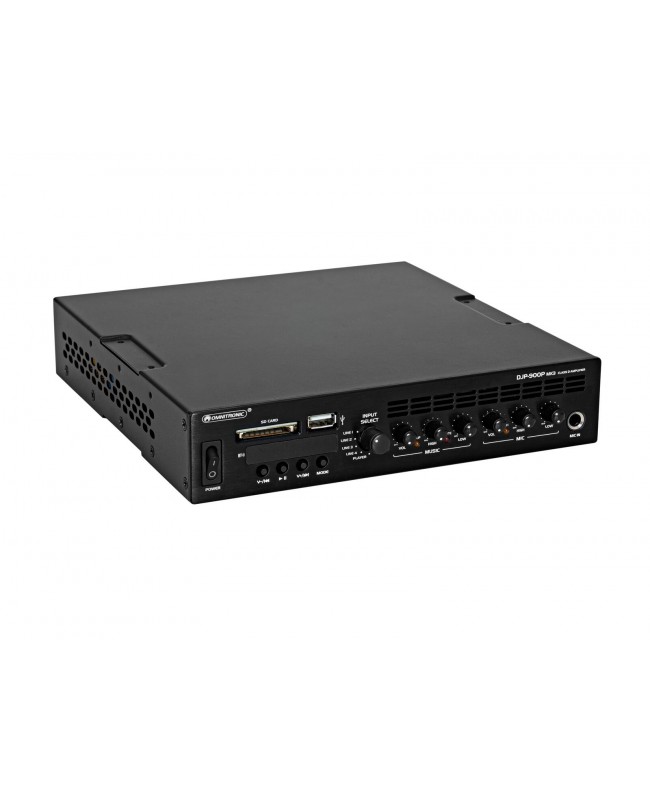

Omnitronic DJP-900P MK3 Class D Amplifier

• Power supply: 230 V AC, 50 Hz
• Power consumption: 140 W 1/8 power
• Protection class: Protection class I
• Output power: 2 x 450 W RMS (4 ohms), 2 x 260 W RMS (8 ohms), 1 x max. 900 W bridged (8 ohms), Max. 250 W bridged (100 V)
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Fuse: F 6.3 A fuse fix on board
• Frequency range: 20 - 20000 Hz
• S/N ratio: 91 dB
• THD: 0.05 % at 1 kHz
• Phantom power: 42 V DC
• Cooling: 1 x cooling fan , air flow from front to rear
• Bluetooth device name: DJP-900MK3
• Audio player: USB + SD + Bluetooth
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Housing color: Black matte
• Circuitry: Class D
• Slew rate: 14 V/µs
• Damping factor: 300
• Display type: 4 digit 7-segment LED display
• Display reading: Play time elapsed

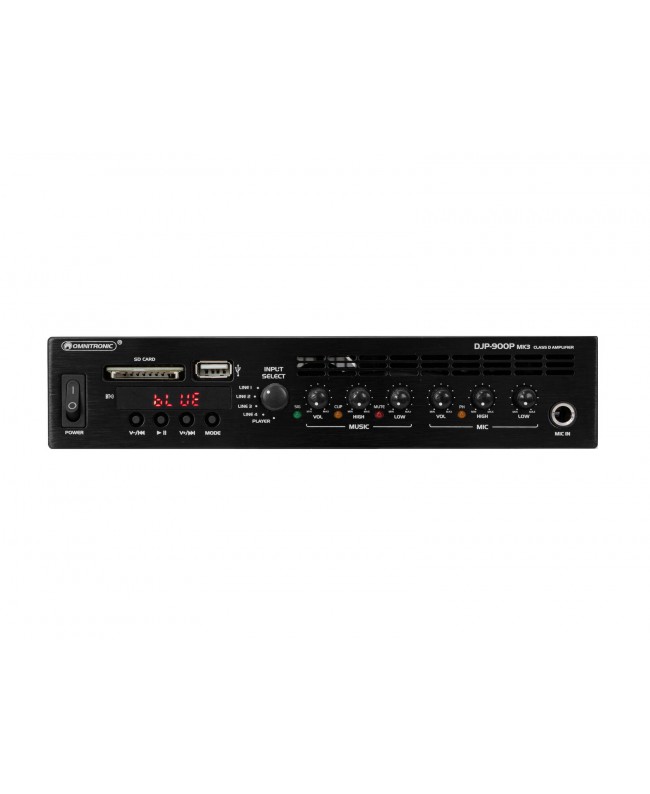

• Control elements: Power switch, audio player, source selector, level control, tone control; mode switch (stereo / bridged/100V), talkover, phantom power switch
• Controls: Softstart; DC voltage; short-circuit; limiter; overheat; power on/off transient
• Status LED: Signal, clip, Mute, phantom power

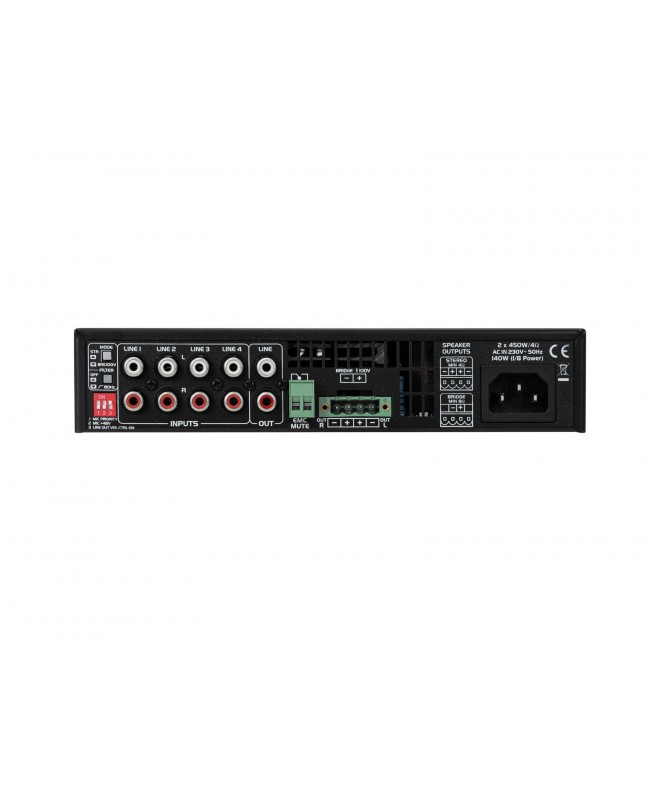

• Connections: Input: microphone via 1 x 6.3 mm plug (unbal.), Input: line via 4 x stereo RCA, Output: line via 1 x stereo RCA, Output: speaker via 1 x screw plug-in terminal
• Channels: Input channel: 5 x stereo with line-player switch via RCA, channel control via rotary dial, 2-band tone control EQ, Microphone channel: 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ
• Input sensitivity: 0.775 V
• Available storage media: USB devices/SD cards
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
• Mounting depth: 22.5 cm
• Dimensions: Width: 21.4 cm, Depth: 23.3 cm, Height: 4.4 cm
• Weight: 2.00 kg

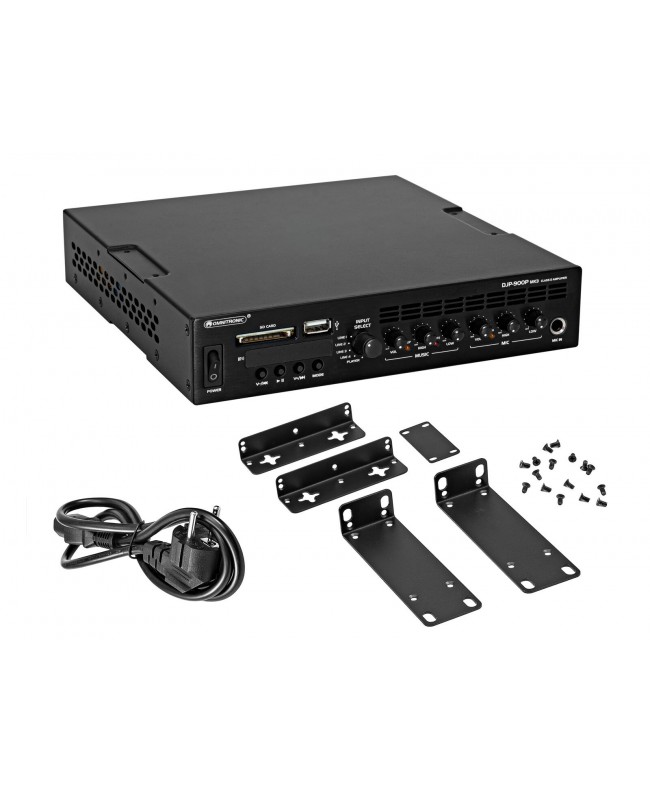

Scope of delivery

• 1 x device
• 1 x power cord
• 1 x user manual
• 1 x declaration of conformity
• 2 x mounting bracket
