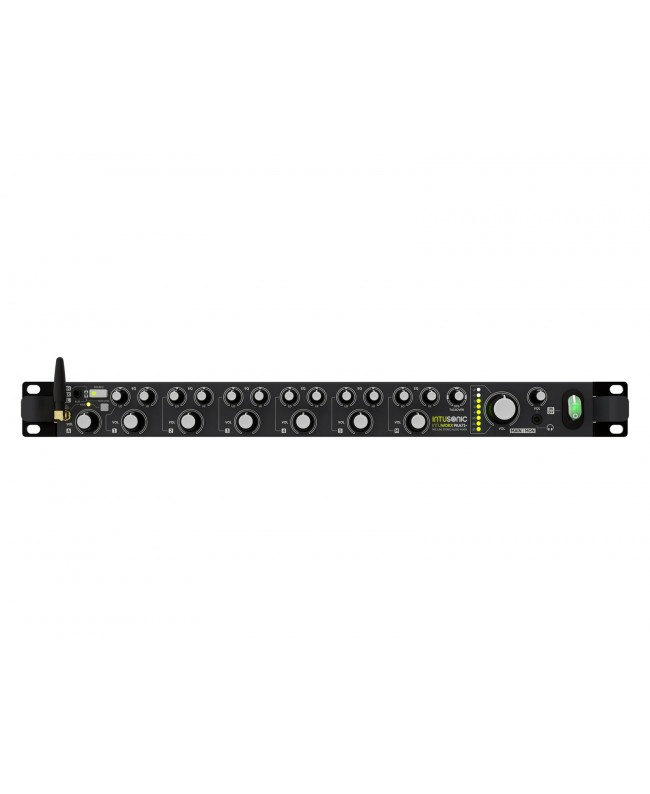

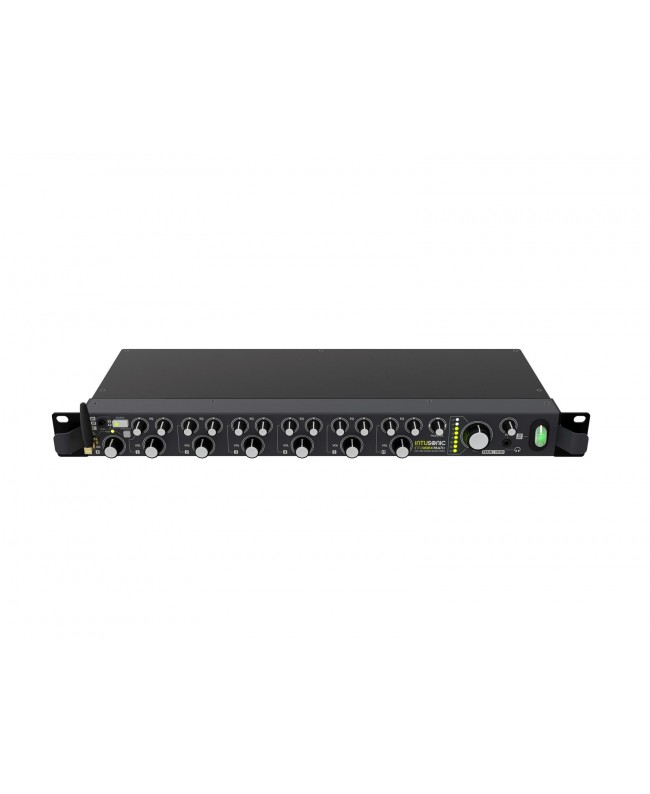

Intusonic PAA71+ Microphone Line Mixer

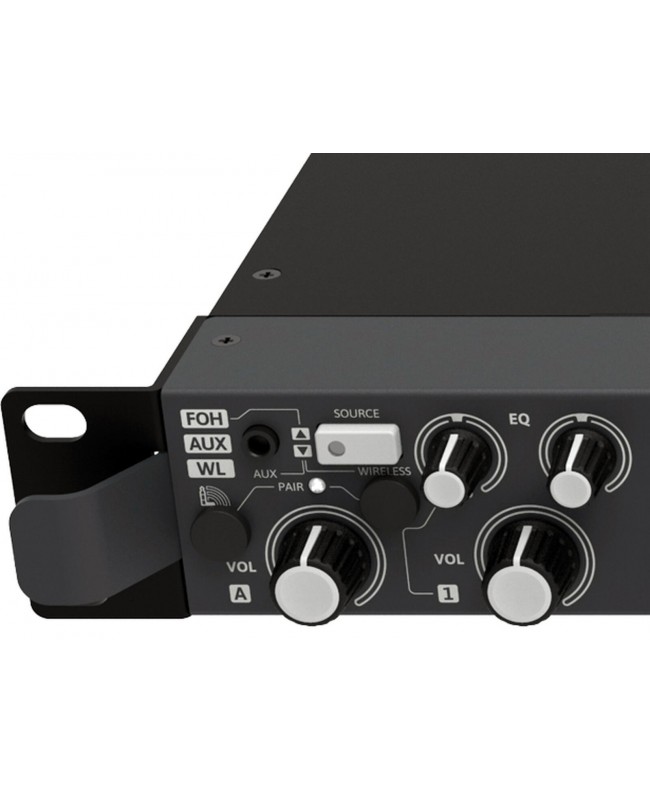

The INTUWORX PAA71+ is a 7-channel mic/line mixer with an improved design. As the perfect center of any installed sound system, it offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal. One further balanced stereo line level input is specifically useful for sources at larger distance; the same input can be switched to receive its input signal from the 3.5mm TRS jack on the front, or the built-in LINKOUSTIC 5.2 wireless audio link. An additional dedicated microphone input with adjustable talkover (priority) provides control over announcements. Every input -- with the exception of the balanced stereo input -- is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems where required. The adjustable monitor output can either feed a stereo headphone or a balanced mono output.

• 5 stereo inputs mic/line, switchable
• 1 stereo input AUX/Wireless Audio Link, switchable
• 1 additional microphone input on rear-side with adjustable talkover function
• Adjustable monitor output
• External shutdown and emergency signal connections
• Each microphone input with optional 12 V phantom power
• Control via LINKOUSTIC 4.2 Wireless Audio Link
• (19) 48.3 cm rack installation
• For further information about this product, please refer to the Data Sheet under Downloads

Scope of delivery

• 1 x mixer
• 1 x power cord
• 11 x screw plug-in terminal
• 1 x plug (male)
• 4 x foot
• 1 x antenna
• 1 x user manual
