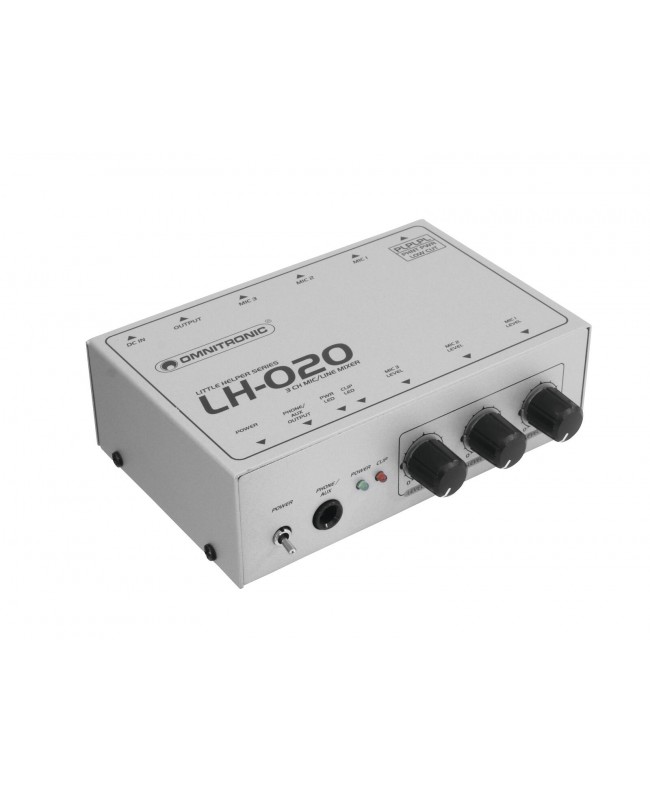

Omnitronic LH-020 3-channel Mic Mixer

• Compact mixer to mix 3 microphones to 1 line output, with individual level control
• 3 microphone input channels with separate level controls, switchable phantom power and low cut
• 1 master output with line level, clip LED
• 1 headphones output (6.3 mm jack)
• Inputs and output via balanced XLR connectors
• Desktop console housing

Scope of delivery

• 1 x user manual
• 1 x external mains adapter
• 4 x foot
• 1 x mixer

• Power supply: 12V DC 150 mA, Or, 18V DC
• Pin configuration: Inside - / outside +
• Protection class: Protection class III
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided), Battery/battery pack

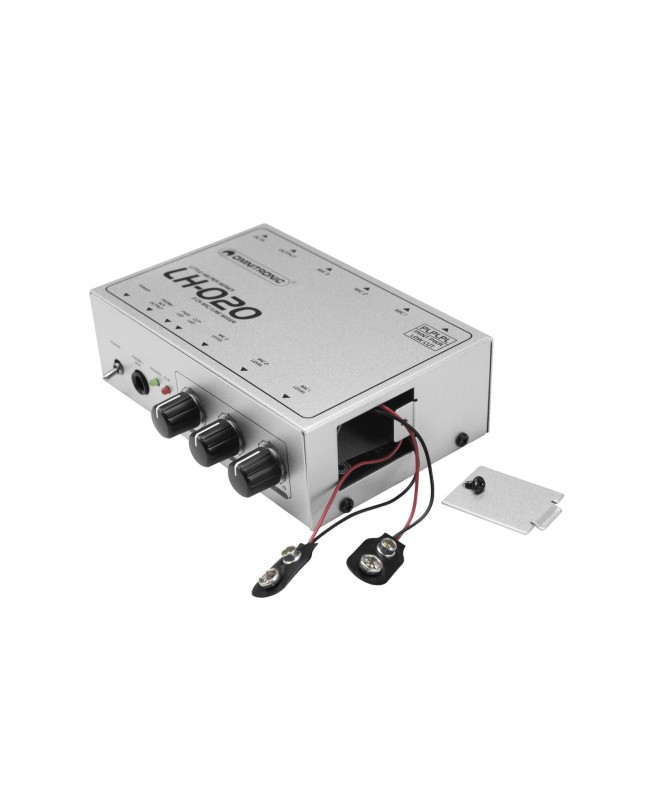

• Battery: 2 x 9.0 V E block (not included)
• Frequency range: 25 - 16000 Hz
• S/N ratio: 75 dB
• THD: 0.02 % at 1 kHz
• Phantom power: Or 18 V DC
• Impedance: Input: 600 Ohm, 600 Ohm
• Gain: 60 dB
• Housing color: Silver
• Control elements: Power switch, low cut switch, phantom power switch, level control per channel
• Status LED: Power, clip

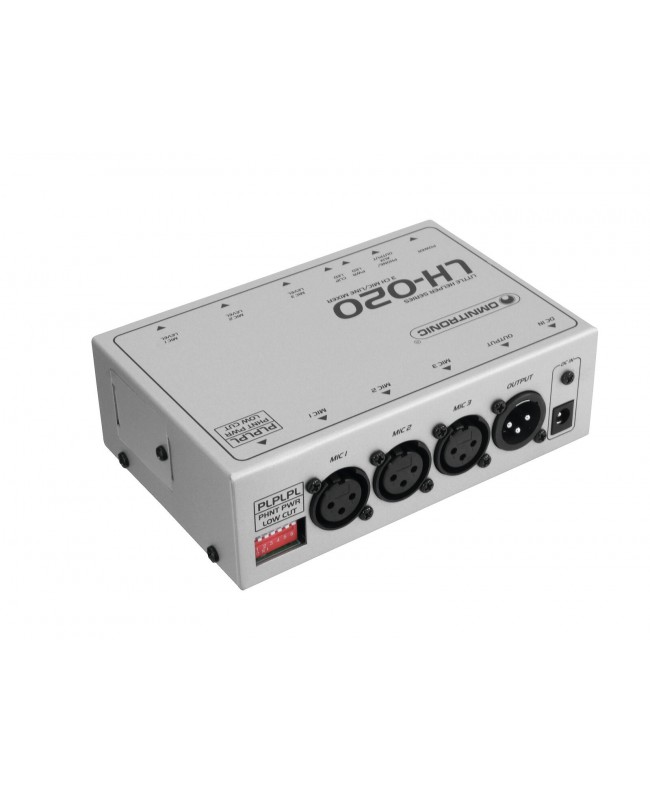

• Connections: Input: microphone via 3 x 3-pin XLR, Output: microphone via 1 x 3-pin XLR, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
• Input channels: 3 x mono via XLR, channel control via rotary dial
• Max. level: Input: -14 dB, Output: +14 dB
• Housing design: Desktop console housing
• Dimensions: Width: 14.3 cm, Depth: 9.3 cm, Height: 4.5 cm
• Weight: 0.76 kg
