Audiophony MPX16
  • New

Audiophony MPX16

€722.00
Tax included

16 CH analog mixer, compressor on MIC channels, DSP, effects, USB / SD / BT player

Out of Stock

Free shipping

Compare

wishlist

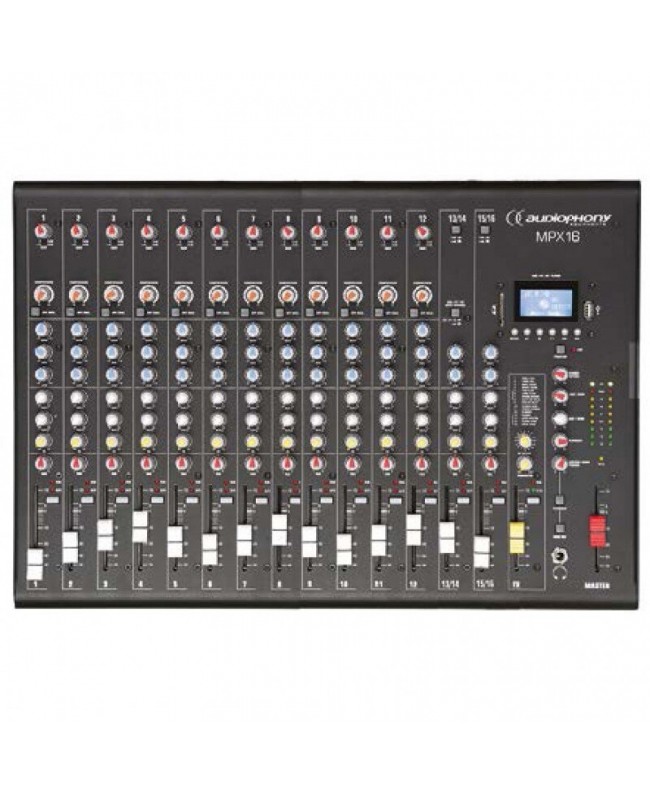

Audiophony MPX16



16-Input analog mixer with DSP for effects and compressor on the MIC channels. The built-in USB/SD/BT device provides additional versatility, eliminating the need for additional peripherals.

Mono channels

  • MIC inputs: balanced
  • Frequency response: 10 Hz - 30 KHz, +-3 dB
  • THD (THD and N): 0.03% at +4 dBu, 22 Hz - 20 kHz A-weighted
  • Compression: gain 0 - 9 dB, threshold 20 dB 5 dB
  • SNR: 115 dB
  • Line inputs: balanced
  • Frequency response: 10 Hz - 30 kHz +-3 dB
  • THD (THD and N): 0.005% at +4 dBu, 22 Hz - 20 kHz A-weighted
  • Max. gain: 75 dBu microphone input master output

Stereo channels

  • Line inputs: balanced / asymmetrical
  • Frequency response: 10 Hz - 55 kHz +-3 dB
  • THD (THD and N): 0.005% at +4 dBu, 22 Hz - 20 kHz A-weighted

Impedances

  • MIC inputs: 1.4 kohm
  • Line inputs: 10 kohm
  • Other inputs: 10 kohm or more
  • Recording output: 1 kohm
  • Other outputs: 120 ohms

Mono channel equalization

  • High: +-15 dB at 12 kHz
  • Mid: +-15 dB at 2.5 kHzLow: +-15 dB at 45 Hz

Stereo channel equalization

  • High: +-15 dB at 12 kHzLow: +-15 dB at 60 kHz
  • Multi-effect: 24-bit analog-to-digital converter, 16 programs
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Dimensions: (L x W x E): 36.5 x 53 x 10 cm
  • Weight: 6.9 kg

HIT-H10908
