Audiophony Mi3
  • New

Audiophony Mi3


€106.10
Tax included

3 CH analog mixer, 2 MIC/line + 1 stereo


Out of Stock

Free shipping


wishlist

Audiophony Mi3

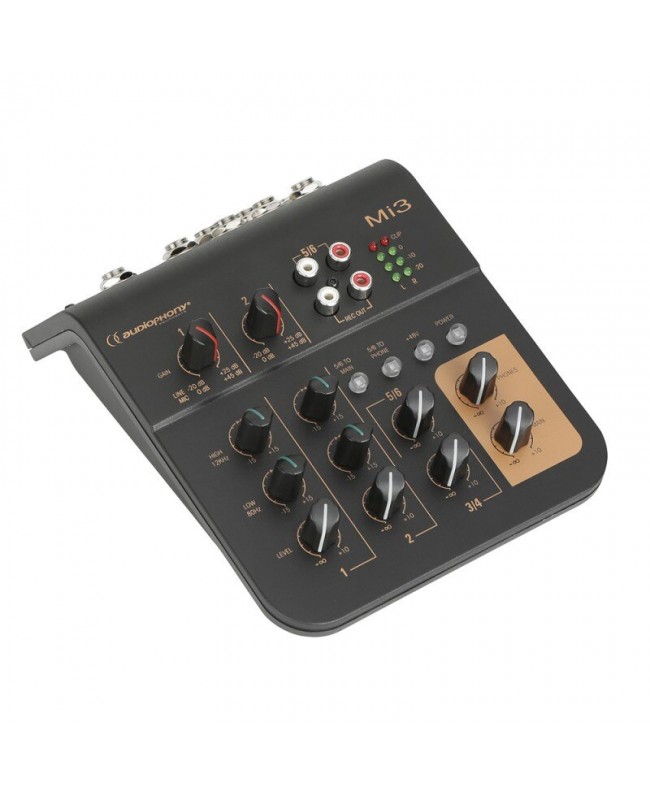

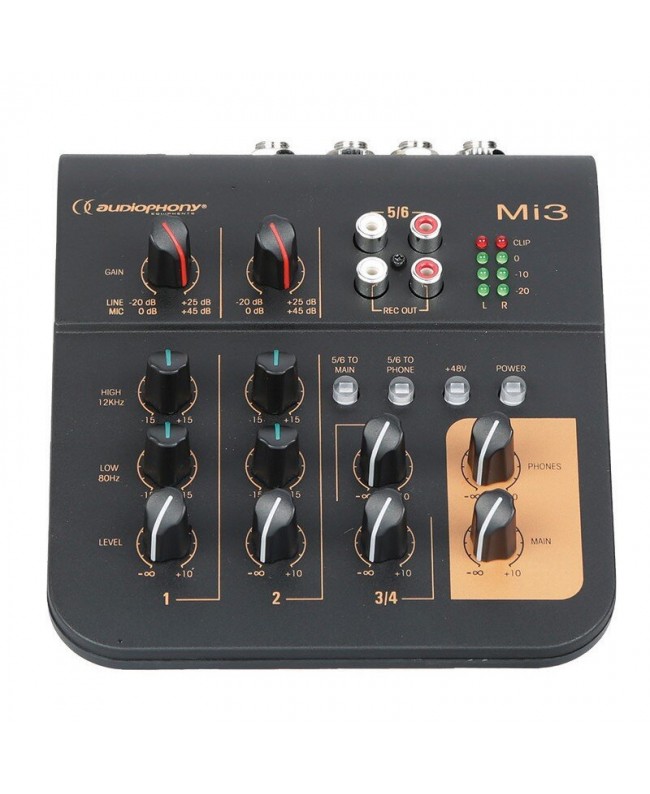

Compact 3-channel mixer with 2 microphone inputs (equipped with 48 V Phantom power) and line, 1 stereo input. The two microphone inputs are equipped with XLR connectors, while the line inputs have balanced 6.35 mm jack connectors. Input 3 and amp; 4, stereo line, are unbalanced on 6.35 mm jack connectors. The 5 and amp; 6 stereo input on RCA connectors can be sent to MAIN or headphones. Bass/treble tone controls on MIC/line channels. Rotary faders for adjusting the level of each channel.

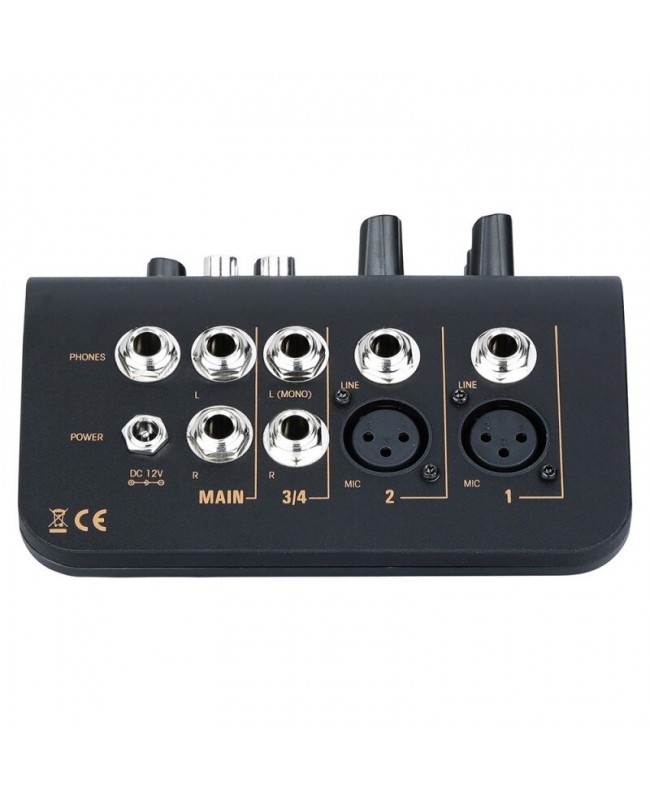

In terms of outputs, we find a balanced MAIN L/R on 6.35 mm jack, REC output on a pair of stereo RCAs and headphone monitoring output on 6.35 mm jack.

LED VU meter for MAIN output. External power supply.

  • MIC input: 2
  • Stereo input: 1
  • Aux: -
  • Stereo L/R output: 1
  • USB port full duplex: -
  • Phantom power: +48 VDC
  • Gain: 65 dB (MIC main output)
  • MIC CH. EQ +-15 dB: HI: 12 kHz, LO: 80 Hz
  • LINE CH. EQ +-15 dB: HI: 12 kHz, LO: 80 Hz
  • Frequency response: 20 Hz -20 kHz +-1 dB
  • Maximum output level: +20 dBu
  • Meter: 4 segments (-20 dB to CLIP)
  • Distortion: max. 0.08% (20 Hz -20 kHz)
  • Power supply: 12 VDC external adaptor
  • Weight: 0.54 kg
  • Dimension (W x D x H): 190 x 140 x 68 mm

HIT-H10909

Specific References
