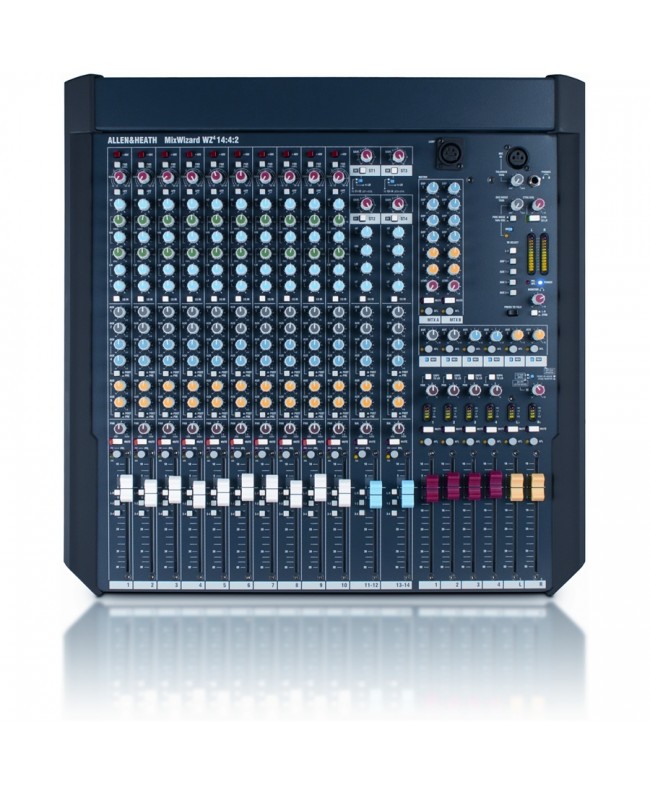

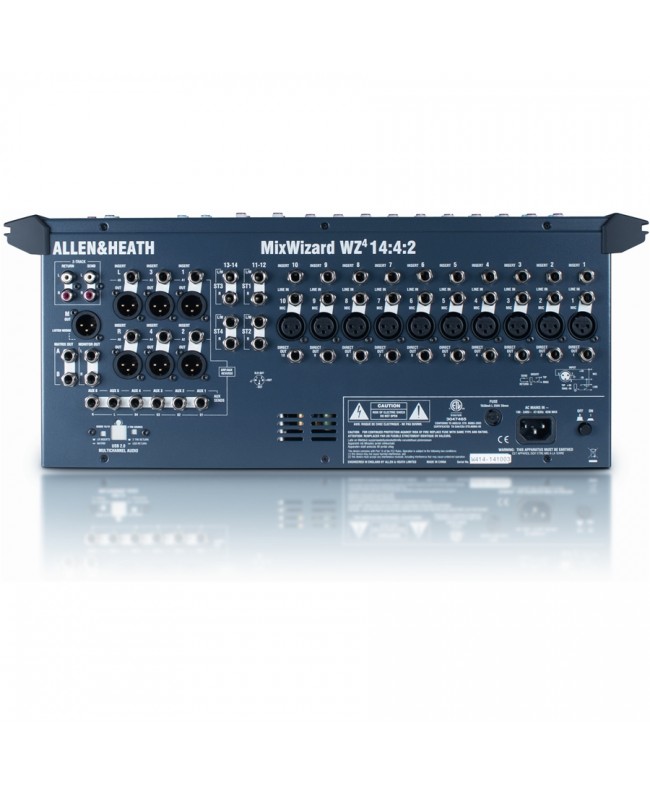

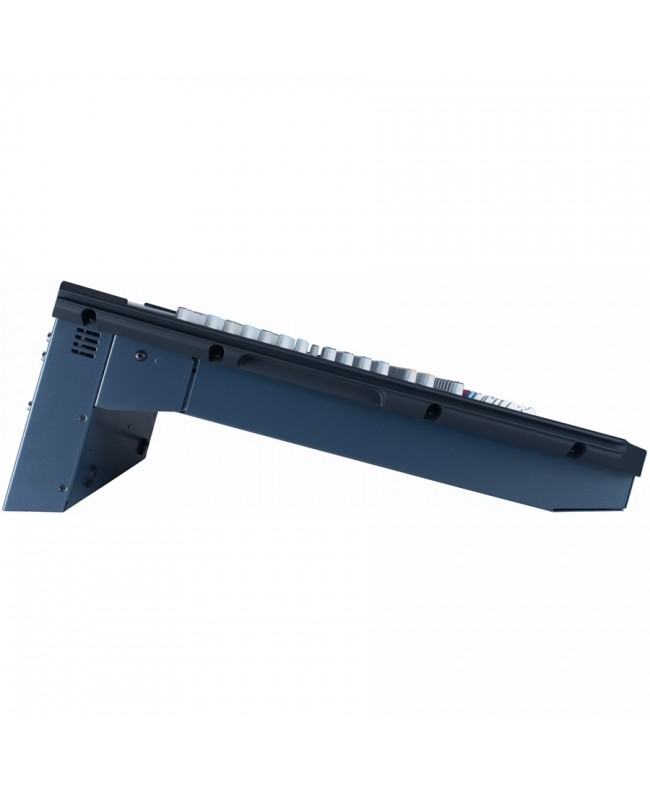

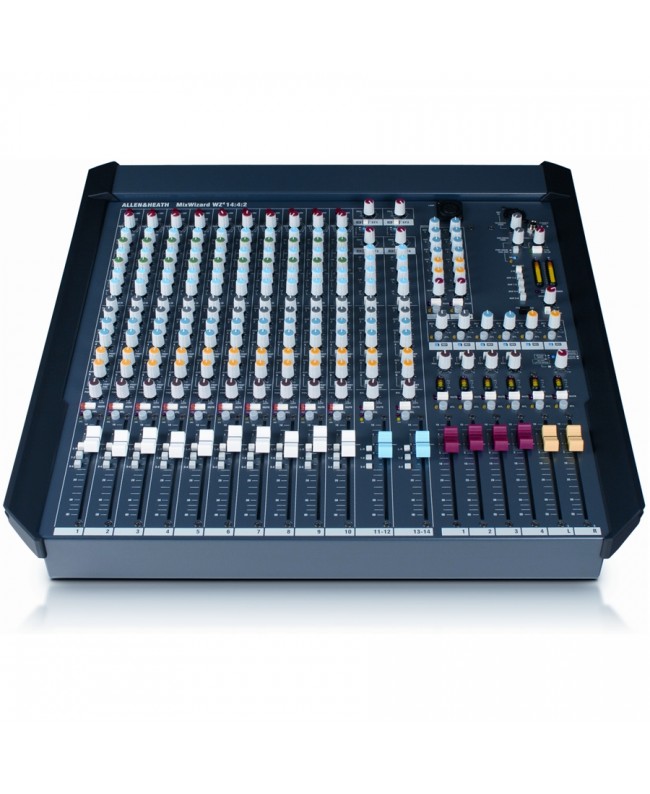

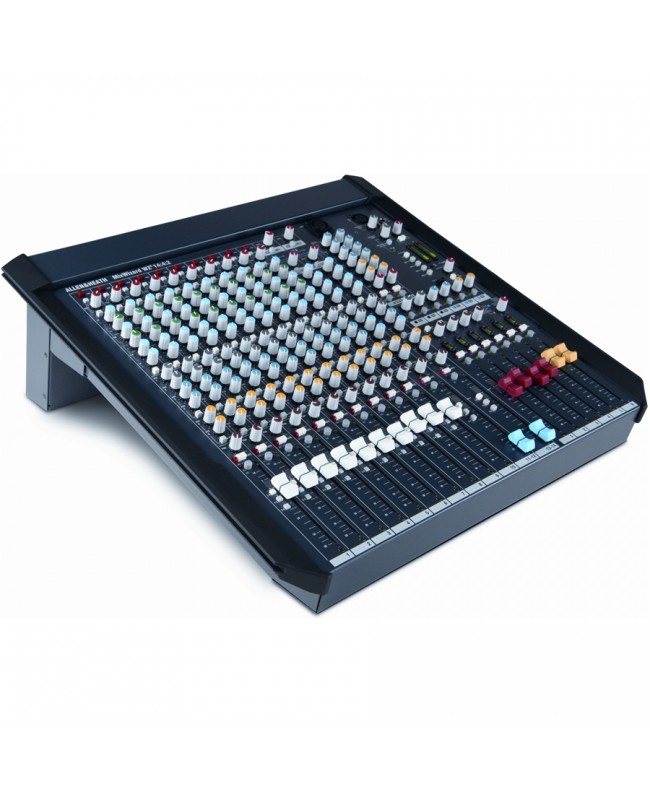

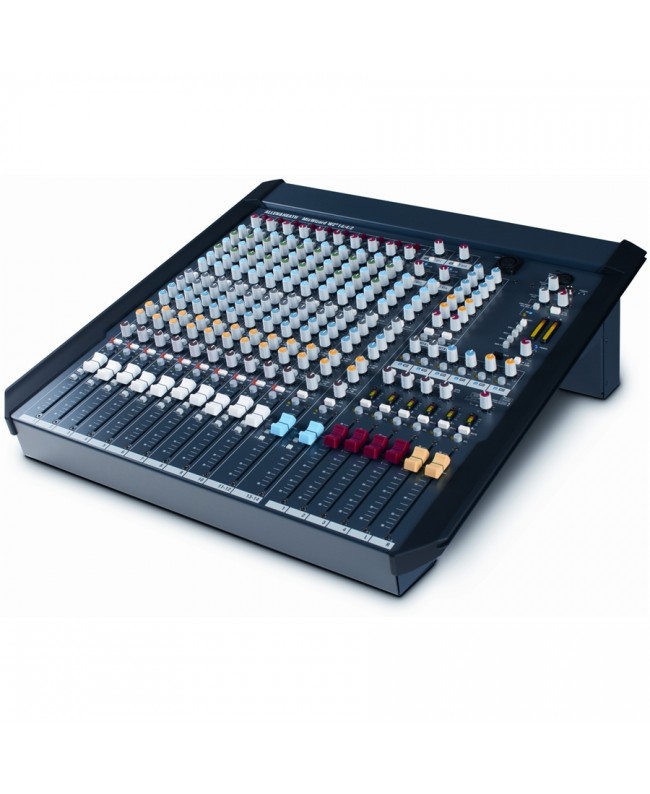

Allen & Heath MixWizard4 14:4:2

The WZ4 14:4:2 is a very versatile mixer in live performance because it can be used in the hall, on stage, or meet both needs simultaneously.

The WZ4 14:4:2 features 4 bands of EQ including 2 parametric for mid frequencies, top quality 100mm faders, 6 aux sends, 12 segments for the meter bar, and the unique QCC connector for using the product in desktop mode or rack or flightcase mounted.

New features in the 4th generation MixWizard include 2 new digital effects engines with 20 studio-quality presets and EQ in/out switch.

For those still looking for a quality analog mixer with compact size and a sturdy chassis, Wizard4 is the solution.

FoH / Monitor / Dual Mode

In FoH mode the 4 groups with inserts, 100mm faders and XLR outputs allow more accurate balance management for mixing on L and R. The L and R master has the ability to put external machines in insert. The left and right faders are separate, and the output connections have the XLR connector. Equalizers or signal processors can easily be put into insert in both the groups and the main.

In Monitor mode, aux sends can be patched to the group and L and R faders, also taking advantage of the insert connections and XLR outputs. Listening to the AFL and PFL is diverted to the Mono output to provide a real wedge for the stage sound engineer. In essence, this is a perfect stage mixer with 6 aux plus the ability to use the groups available on the aux master controls.

In Dual Mode, some auxes can be used to manage the monitors on stage and the sub-groups for the L in this way the sound engineer can manage the FoH sound system and the monitors on stage from the same mixer.

Features
