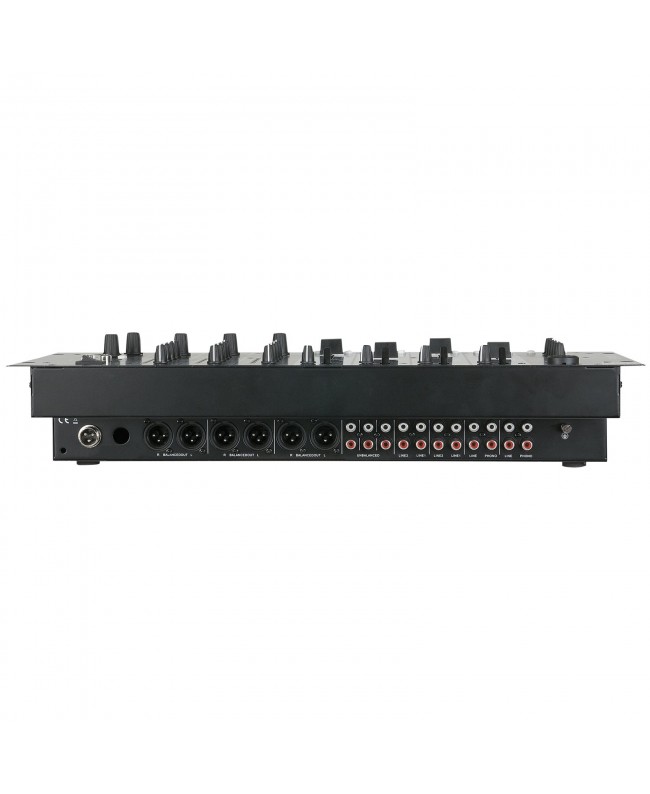

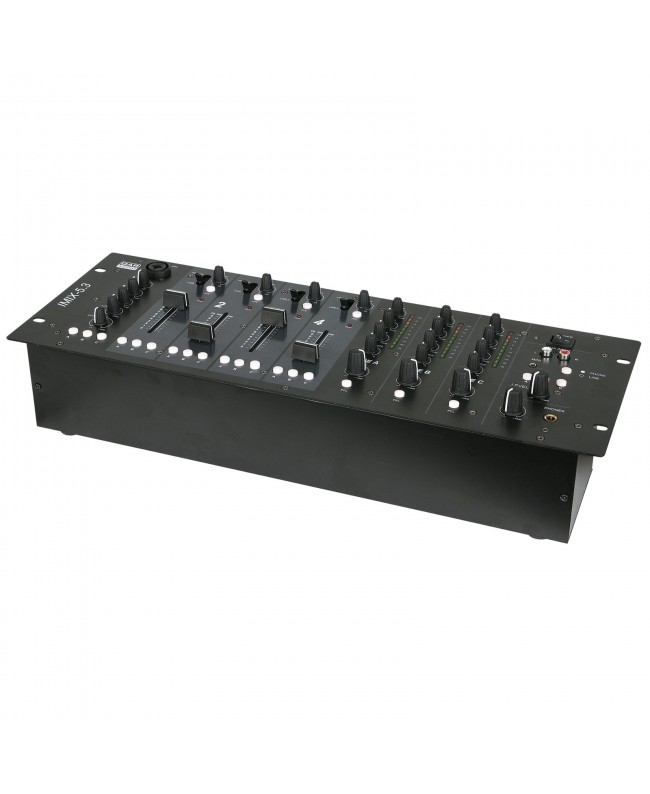

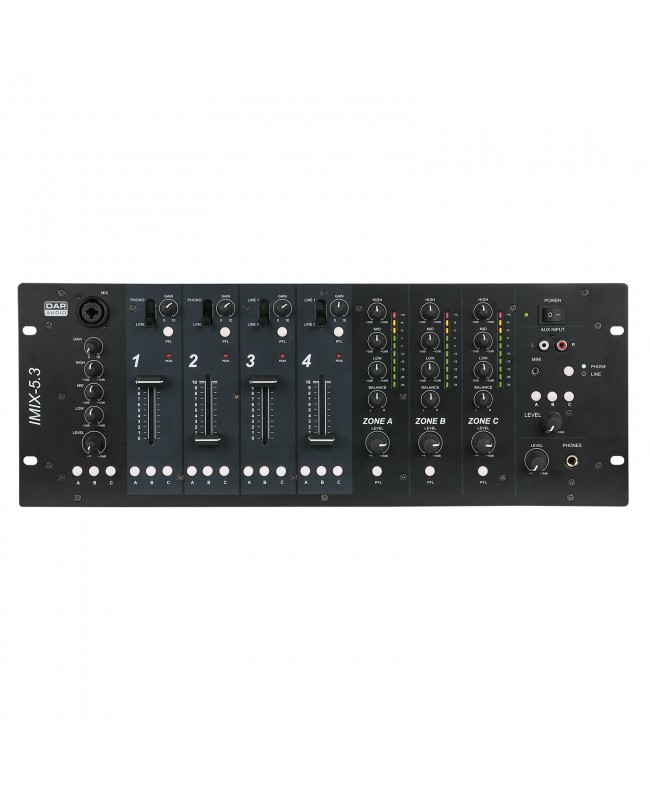

DAP IMIX-5.3 Analog Mixer
  • -20%

DAP IMIX-5.3

€315.00
€252.00 -20%
Tax included
Lowest price within the last 30 days: €252.00

5-Channel 4U install mixer - 3 zones

Qty

In Stock

Delivery

Do You want Your order by Monday, 17/08/2026? Order within 1 hours and 44 minutes

Free shipping

Compare

wishlist

DAP IMIX-5.3



The DAP IMIX-5.3 is a basic 3 zone control mixer. It has a logical design and all functions are very clear and easy to control. Each channel has 3 output buttons to route the channel to your desired area/zone. All outputs have their own EQ settings and with the PFL function you can monitor each area/zone with a pair of headphones. At the front it has direct inputs for microphone, line and a phone/mp3 device.

  • Master outputs with 3-way tone control
  • Special front input for phone/MP3 devices
  • Zone control for 3 balanced outputs
  • 1 Mic, 7 Line, 2 Phono inputs
  • Mono Inputs: 1
  • Mono Input Connector: 3-pin XLR / TRS balanced 6.3 mm
  • Stereo Inputs: 8
  • Stereo Input Connector: RCA / TRS balanced 3.5 mm
  • Phono Audio Inputs: 2
  • Phono Audio Input Connector: RCA
  • Main Outputs: 3
  • Main Output Connector: 3-pin XLR / TRS balanced 6.3 mm
  • Zone Outputs: 3
  • Zone Output Connector: 3-pin XLR / RCA
  • Headphone Output: 1
  • Headphone Output Connector: TS unbalanced 6.3 mm
  • Media Player: No
  • Audio Interface: No
  • THD Level %: 0.05 %
  • Signal-to-noise Ratio: 100 dB
  • Frequency Response Minimum: 20 Hz
  • Frequency Response Maximum: 20000 Hz
  • Microphone Input Equalizer Gain Range: 12 dB
  • Parametric Microphone Equalizer: 3 Bands
  • Microphone Input Fixed Frequencies: 100, 1.000, 10.000 Hz
  • Graphic Main Equalizer: 3 Bands
  • Main Output Equalizer Gain Range: 12 dB
  • Main Output Fixed Frequencies: 100, 1.000, 10.000 Hz
  • Parametric Zone Equalizer: 3 Bands
  • Zone Output Equalizer Gain Range: 12 dB
  • Zone Output Fixed Frequencies: 100, 1.000, 10.000 Hz
  • BT: No
  • LED Indicators: Channel select / Clip / Output level / Signal
  • Power Supply: 220-240 V AC 50 Hz (Power adapter)
  • Power Consumption: 15 W
  • Power Connector In: Euro plug
  • Fader Length: 60 mm
  • Height (mm): 176 mm
  • Width (mm): 483 mm
  • Depth (mm): 89 mm
  • Flightcase Size: 19
  • Rack Units: 4 U
  • Housing: Metal
  • Colour: Black
  • Weight: 3.4 kg
  • IP Rating: IP20 (indoor use only)
  • Included Accessories: Adapter

D2352

Data sheet

Channels
5 Kanäle
