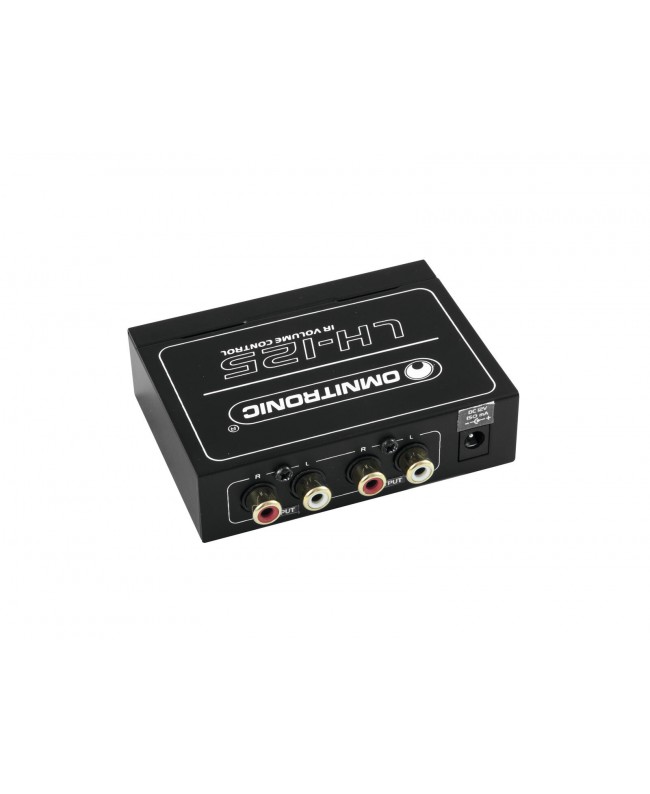

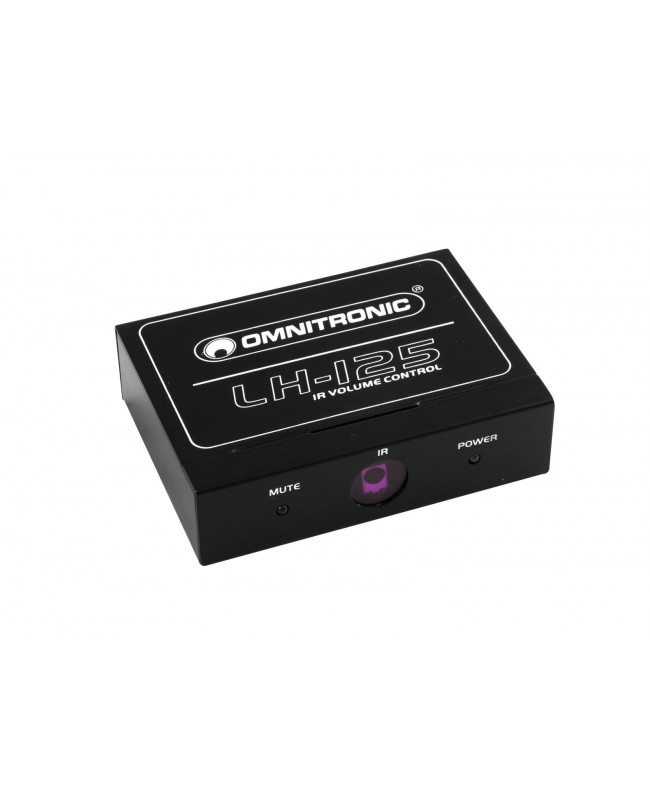

Omnitronic LH-125 IR Volume Controller

• Convenient stereo volume control of analog audio units with line level
• Volume up/down and mute on/off
• Stereo RCA input and output

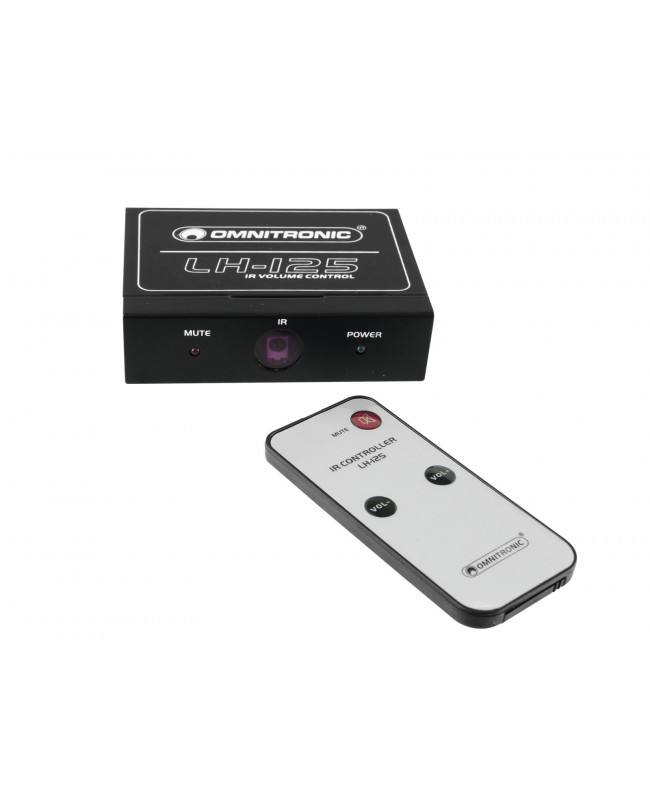

• Control via IR remote control
• Desktop console housing
• For application areas such as: Installation; mobile use; mobile djs / entertainer

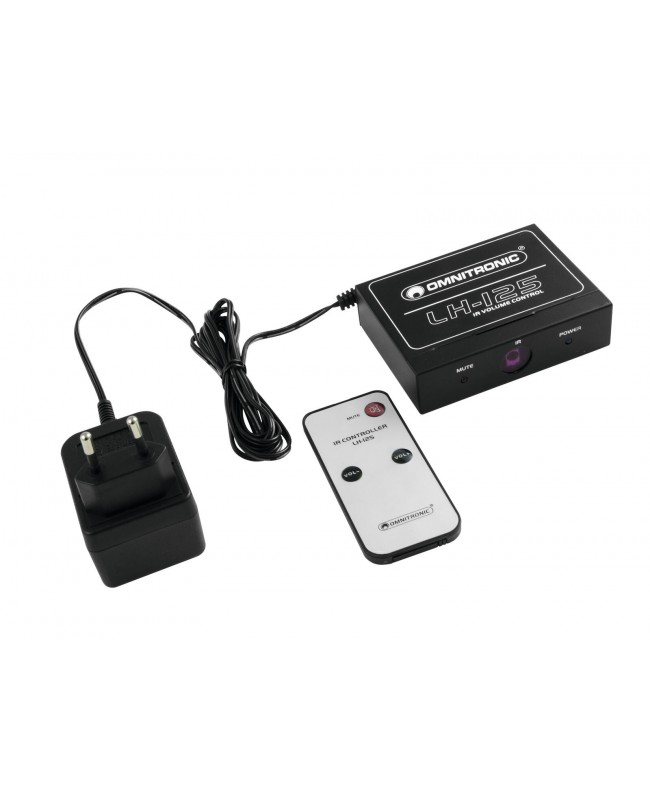

Scope of delivery

• 1 x device
• 1 x external mains adapter
• 1 x remote control
• 4 x foot
• 1 x user manual
• 1 x battery

• Power consumption: 0.75 W
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
• Frequency range: 20 - 20000 Hz
• S/N ratio: 90 dB
• THD: 0.2 % at 1 kHz
• Impedance: Input: 47 kOhm
• Control: IR remote control

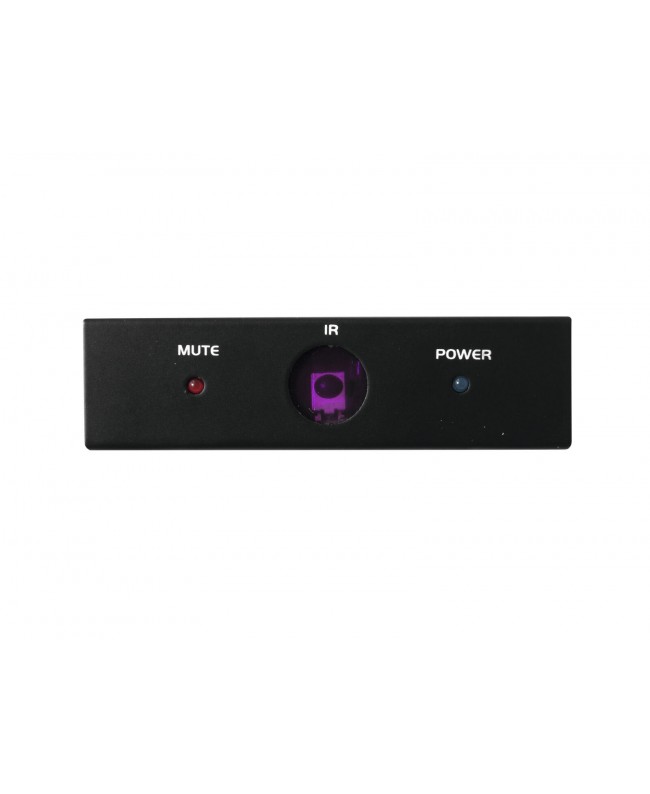

• Status LED: Power, Mute
• Connections: Input: line via 1 x stereo RCA, Output: line via 1 x stereo RCA
• Max. level: Input: +3.40 V, Output: +3.6 V
• Material: Metal
• Color: Black
• Housing design: Desktop console housing
• Dimensions: Width: 9.3 cm, Depth: 7.6 cm, Height: 2.6 cm
• Weight: 0.23 kg
• Power supply: 12V DC
• Protection class: Protection class III
• Weight: 0.151 kg
• Power supply: 100-240 V AC, 50/60 Hz
• Protection class: Protection class II
• Weight: 0.066 kg
• Battery: 1 x button cell 3.0 V CR2025 lithium manganese built-in
