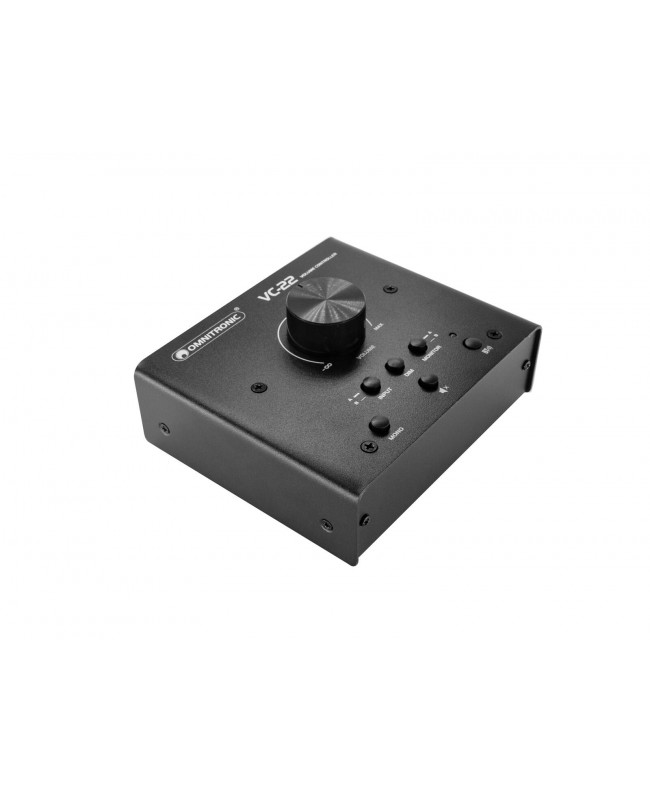

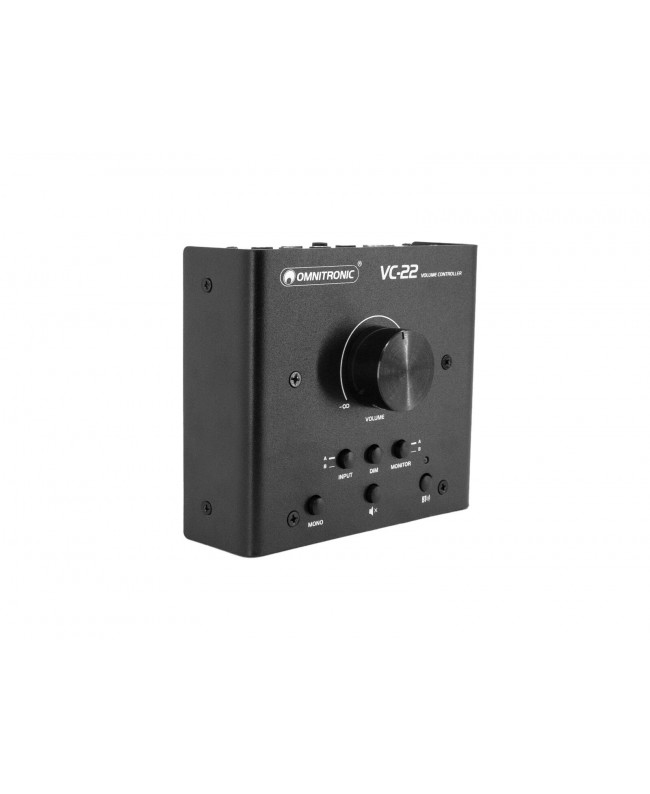

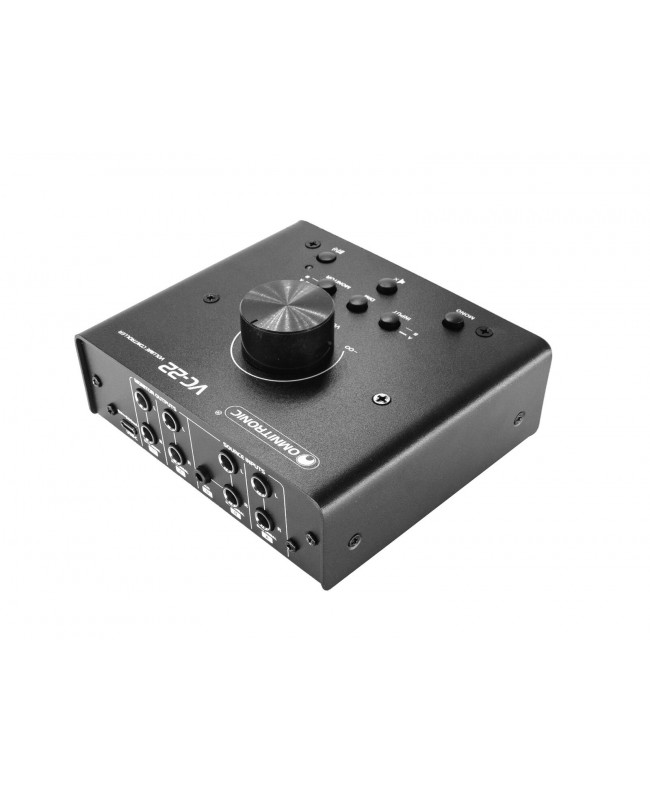

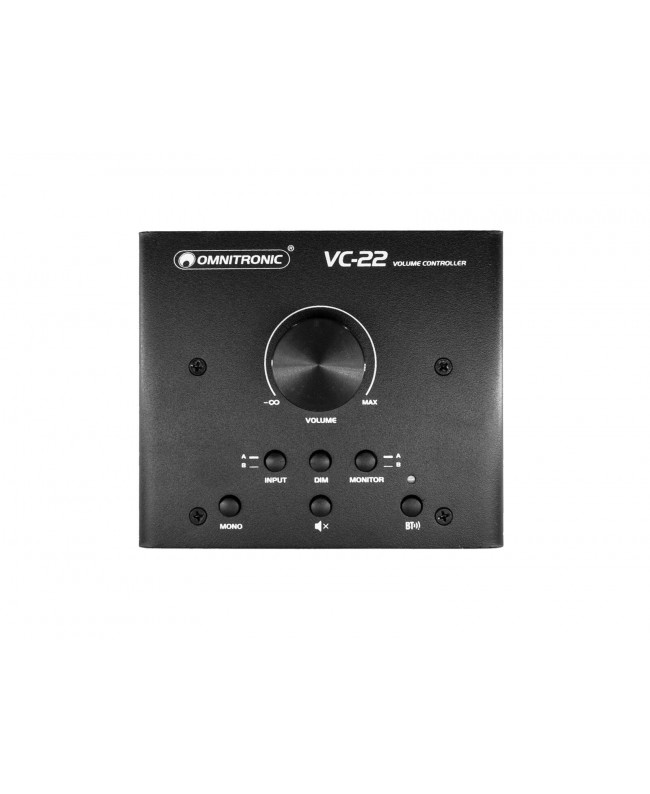

Omnitronic VC-22 Volume Controller, active

• 2 signal sources and 2 monitor pairs selectable
• Suitable e.g. between PC sound card and active speakers or amplifiers
• Large rotary level control
• Control via Bluetooth
• Bluetooth: operating range up to 10m in buildings
• Desktop console housing

Scope of delivery

• 1 x device
• 1 x USB cable
• 1 x user manual
• 1 x declaration of conformity

• Power supply: 5V DC
• Power consumption: 1 W
• IP classification: IP20
• Protection class: Protection class III
• Power connection: Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
• Frequency range: 20 - 20000 Hz
• Control: Bluetooth
• Bluetooth device name: VC-22
• Range: Bluetooth: range up to 10m in buildings
• Housing color: Black matte
• Control elements: Connect
• Status LED: Pairing

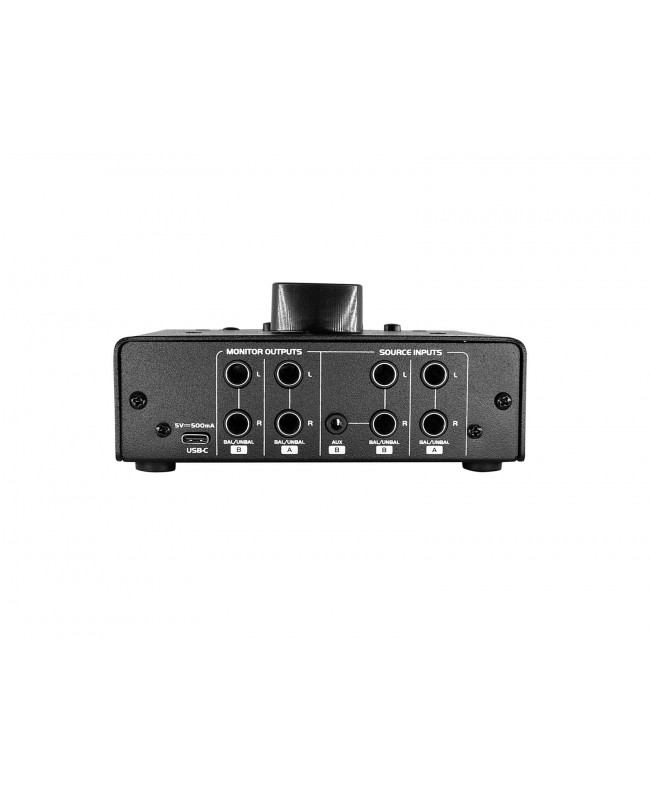

• Connections: Input: line via 4 x 6.3 mm jack socket (mono) mounting version, Input: line via 1 x 3.5 mm jack (stereo) mounting version, Output: line via 4 x 6.3 mm jack socket (mono) mounting version
• Channels: Input chanel: 1 x mono + stereo with line-line switch via jack plug or Bluetooth, Master output: 1 x mono + stereo via jack, channel control via rotary dial, mute control, stereo/mono switch, level attenuator, speaker selector
• USB port: Type C
• Housing design: Desktop console housing
• Dimensions: Width: 13.8 cm, Depth: 12 cm, Height: 6.4 cm
• Weight: 0.570 kg
• Cable length: 1.5 m
• Weight: 0.020 kg
