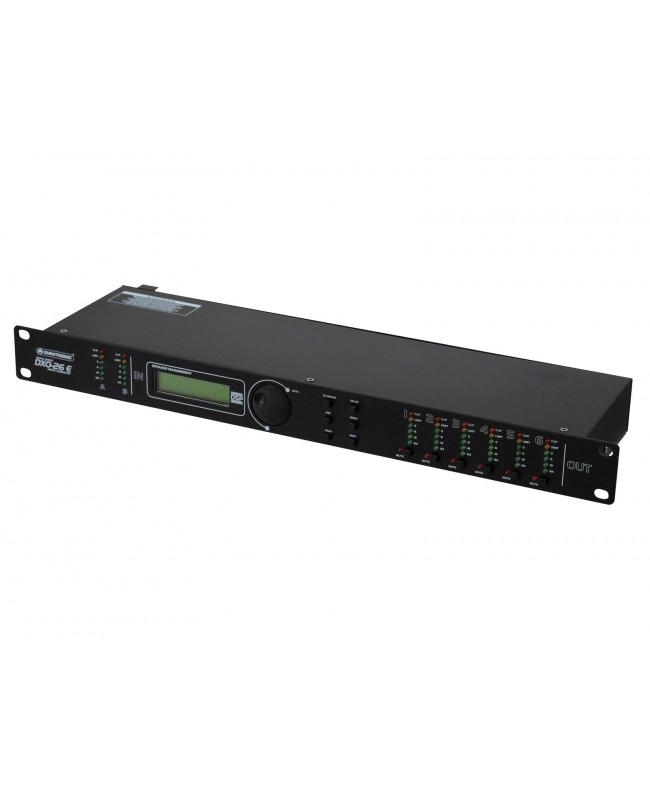

Omnitronic DXO-26E Digital Controller

• Flexible routing configurations for all standard mono and stereo output operating modes
• 2 analog inputs and 6 analog outputs (XLR)
• Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
• Up to 30 user presets storable in the device via software
• Input sensitivity digitally adjustable

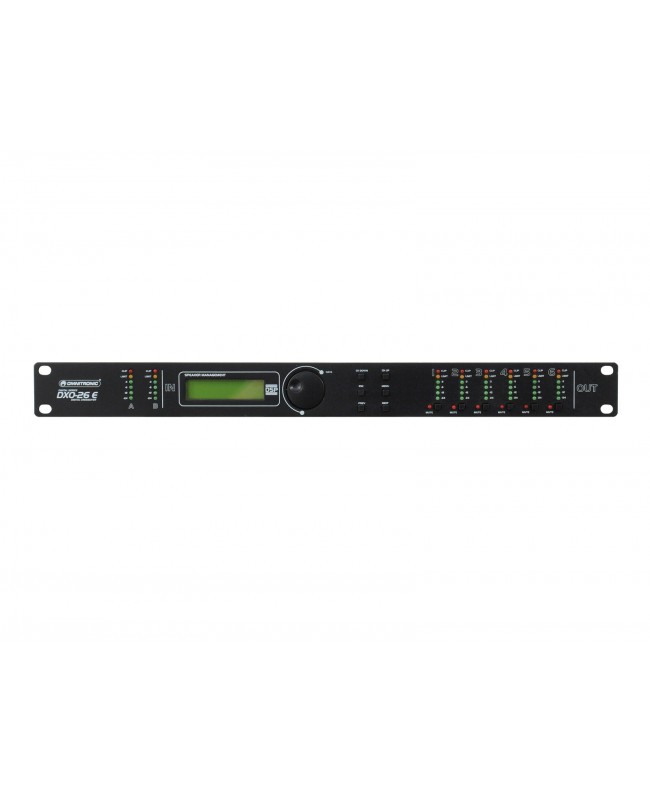

• Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
• Mute switch with LED indicator per output
• 7-band parametric EQ per output
• Up to 7 ms signal delay adjustable for the outputs
• Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
• Switchable phase
• Lock function for prevents undesired changes to settings
• Sample rate: 67 kHz
• (19) 48.3 cm rack installation 1 U
• Digital signal processor
• Monochrome LCD display
• The device can be connected via USB to the PC in connection with DXO Software
  firmware can be updated
• Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
• For application areas such as: Clubs/dancing school; installation; mobile djs / entertainer; restaurants, bars and hotels; rental

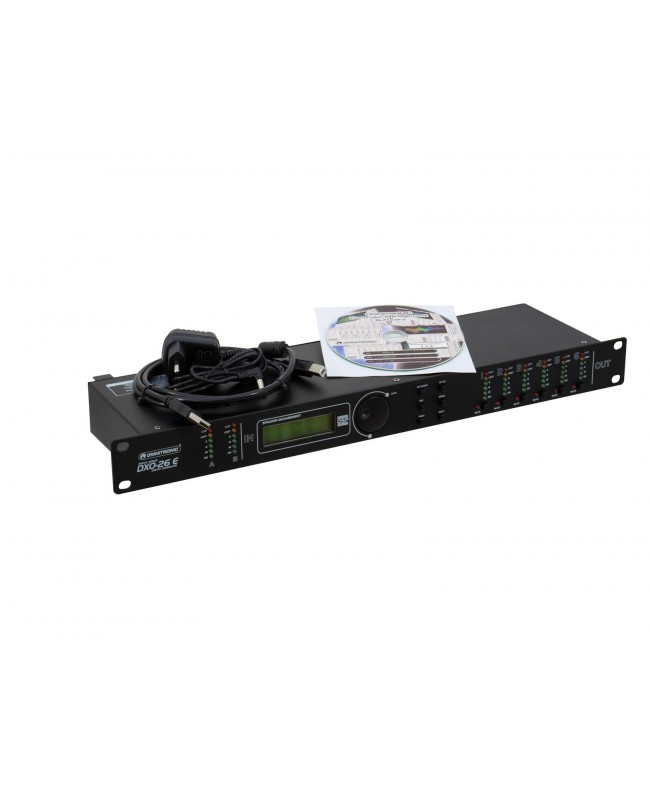

Scope of delivery

• 1 x controller
• 1 x user manual
• 1 x USB cable
• 1 x external mains adapter
• 4 x foot
• 1 x CD

• Power supply: 100-240 V AC, 50/60 Hz, 6V 800 mA
• Protection class: Protection class III
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
• Frequency range: 10 - 30000 Hz
• THD: 0.005 % at 1 kHz
• DSP: Digital signal processor
• Impedance: Input: 10 kOhm, Output: 50 Ohm
• Gain: Output: -50 dB to +12 dB
• Filter: Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
• Delay: 0 - 5 ms
• Dynamic range: Input: 114 dB, Output: 110 dB
• Sample rate: 67 kHz
• Display type: Monochrome LCD display
• Control elements: Mute control, encoder, navigation keys
• Status LED: Limit, clip, level meter, Mute

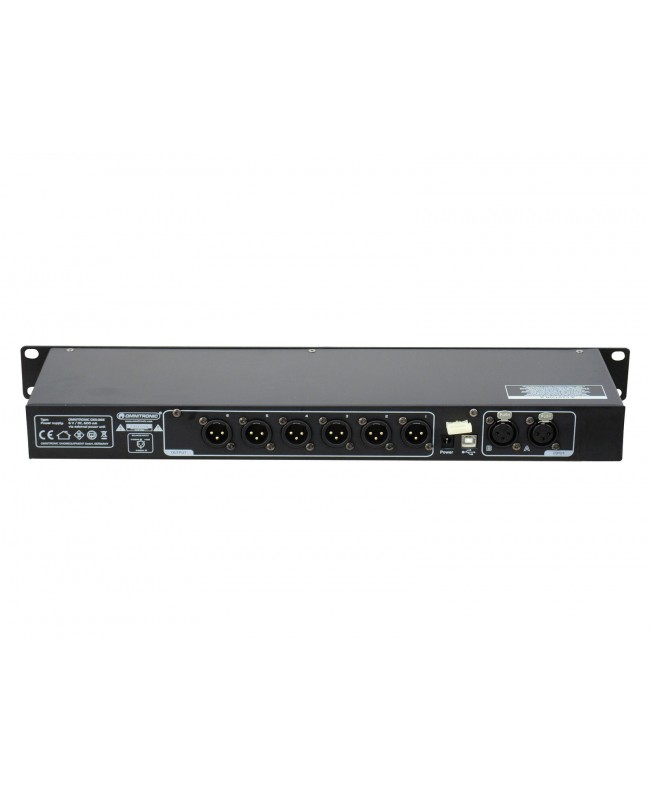

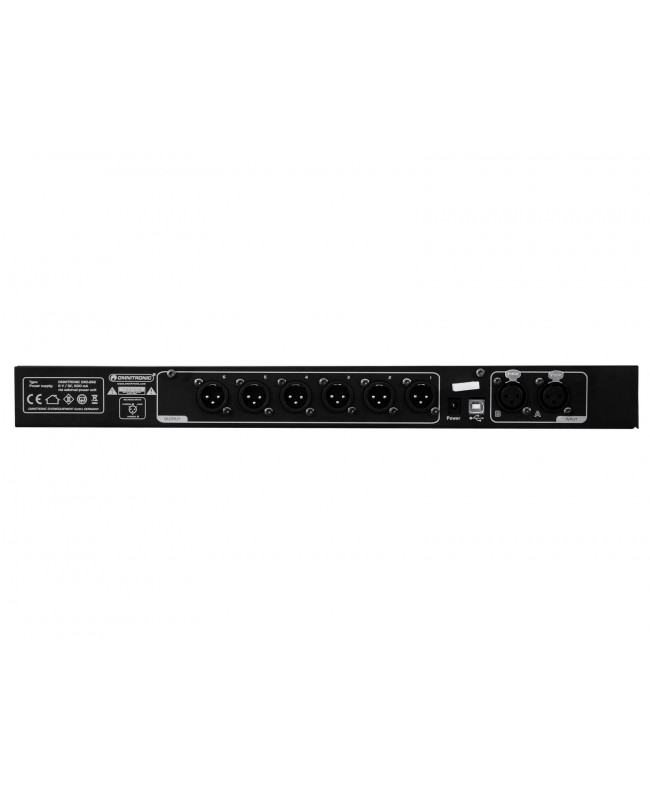

• Connections: Input: line via 2 x 3-pin XLR, Output: line via 6 x 3-pin XLR
• Crossover frequency: 20-20000 Hz
• Max. level: Input: +22 dBu, Output: +9 dBu
• USB port: Type B
• Color: Black
• PC connect: DXO Software via USB, firmware can be updated
• Housing design: (19) 48.3 cm rack installation 1 U
• Dimensions: Width: 48.3 cm, Depth: 12.8 cm, Height: 4.45 cm
• Weight: 1.77 kg
• Operating system: Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
