Agora F2 AV Switch
  • -26%
  • New

Agora F2

€3,597.00
€2,677.00 -26%
Tax included
Lowest price within the last 30 days: €2,677.00

FAST 2 - 12 x 1 Gbit user ports (6 x primary + 6 x secondary) with 2 x 1 Gbit transmit ports (1 x primary + 1 x secondary)

Out of Stock

Free shipping

Compare

wishlist

Agora F2



FAST 2 is a fast Gigabit Ethernet switch that works standalone or as extending module of the GHOST series, a 1U 19 and #34; rack mount Gigabit platform dedicated to multiplexing, transporting and monitoring of true Ethernet broadcast signals. It provides multi-task service platform to easily create and manage the most complex networks without specific skills in IT technologies.

FAST integrates two layers of 2 programmable Ethernet switches, an interface, an interface and control front panel board, and a 100 - 240 VAC 50/60 Hz power supply. IN standalone use, FAST works as a dual ethernet switch for accurate redundancy (motherboard and power supply).

As an extension module, FAST offers a GHOST user port multiplier of up to two groups per frame. The software specially developed for live and tour applications is called GHOST Manager; this software can instantly manage up to 200 network connected devices from a Windows XP to Windows 10 PC, connected on a single device. GHOST networks are completely independent of any protocol and perfectly versatile for each drive data.

Fixed installations: stadiums and sports venues, museums, theme parks and entertainment venues, theatres, music and show venues, corporate boardrooms and buildings

  • The possible applications depend on the contexts:
  • Live and touring: live events and concerts, live broadcasts, PA, radio/television touring projects
  • Broadcast and studio: radio and television Studios, OB Vans, data centers
  • Other: multimedias broadcasting
  • Main features
  • 12 Fully independent and assignable 10/100/1000 Mbps ether. CON ports: 6 from primary switch, 6 from secondary
  • Two 1000 Mbps ether. CON ports for FAST link: 1 from primary switch, 1 from secondary
  • Optical. CON Duo 1000 Mbps for FAST link (optional): 1 from primary switch, 1 from secondary
  • Available in single-mode and multi-mode versions
  • 99 Groups can be managed simultaneously
  • Status and traffic LEDs for remote control of each port
  • ID LEDs on each user port
  • Available network topologies: bus, ring, star and hybrid
  • A redundant power supply (optional) is available

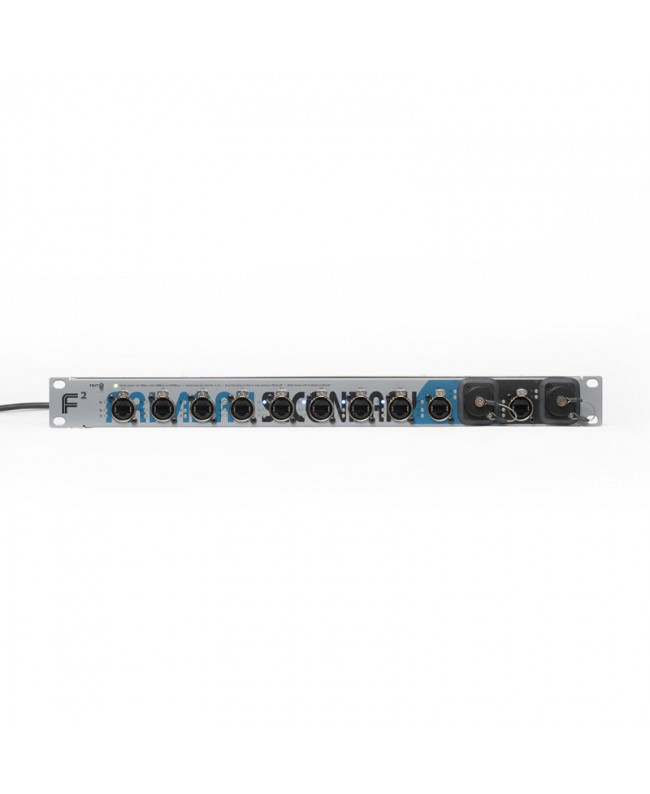

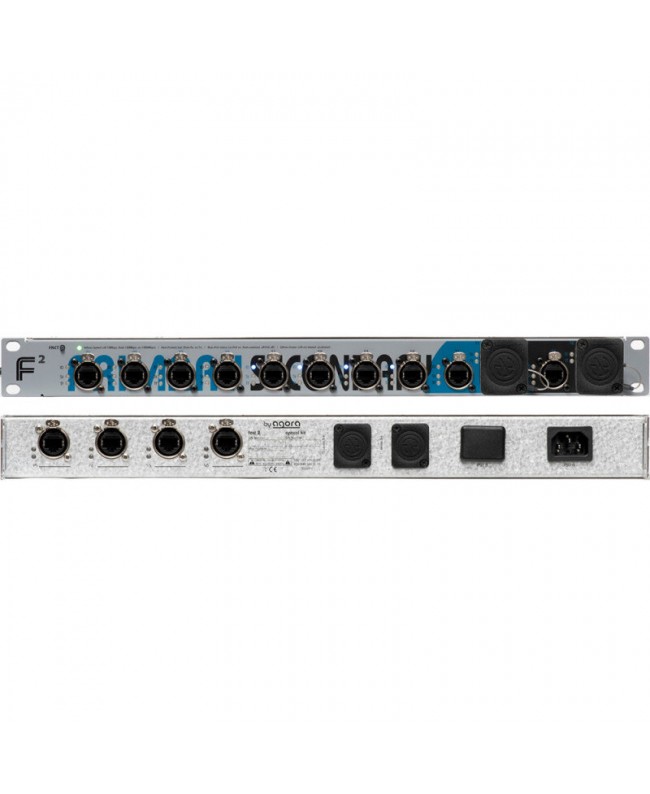

  • Front panel: 8 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (4 primary / 4 secondary)2 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (1 primary / 1 secondary)2 x 10 Base-T /100 Base-TX / 1000 Base-T opticalCON Duo ports (1 primary / 1 secondary)3 LEDs (STATUS, TRAFFIC, ID) on each etherCON port2 LEDs (STATUS and TRAFFIC) on each opticalCON port1 x multipurpose LED1 x configuration and navigation function switch

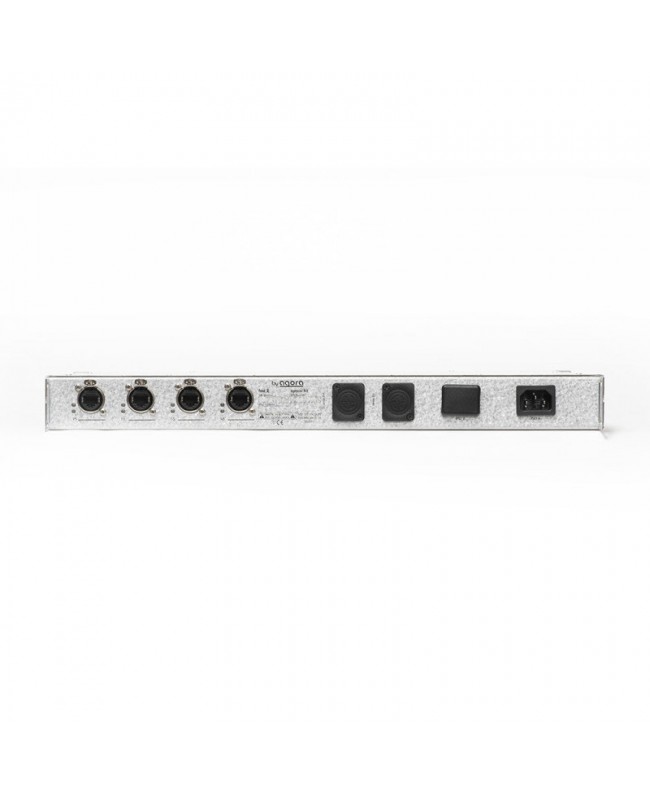

  • Rear panel: 4 x 10 Base-T / 100Base-TX / 1000 Base-T etherCON ports (2 primary / 2 secondary)1 x power cord
  • Software: SNPPv3 and SSH protocolsEmulate editor mode
  • Motherboard: 1 x ARM9E: 800 MHz2 x 64 MB - DDR3 SDRAM 128 MB flash memoryDataflow: up to 2 x 14.9 MbpsSwitching capacity: 2 x 20 Gbps
  • Network: 250 x groups availableCapacity of 2 x 8 K MAC AddressIEEE 802.lp Oos
  • Power consumption: 100 - 127 VAC / 3.2 A, 200 - 240 VAC / 1.6 A
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Idle power1: 8 W
  • Maximum power rating2: 17 W
  • Storage temperature / humidity: -40 to 70 °C / 10 - 90% without condensation
  • Operating temperature / humidity: 0 to 40 °C / 10 - 90% without condensation
  • Acoustic: without fan
  • Altitude: up to 3000 m
  • Size (W x H x D): 48.26 x 4.36 x 40 cm
  • Weight (without options): 3.8 kg

AGO-F2
