Agora GMK2

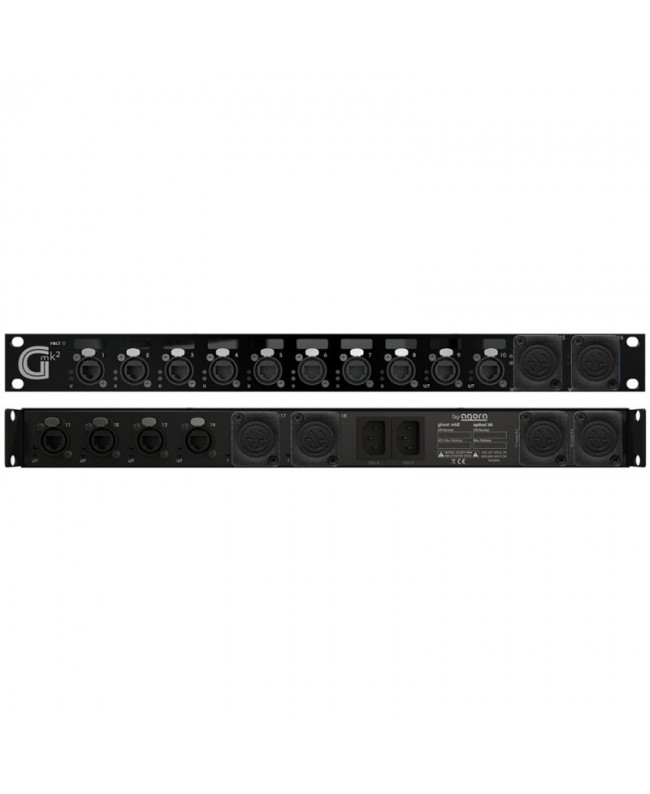

GHOST MK2 is a 1U 19 and #34; rack format Gigabit network platform dedicated to multiplexing, transporting and monitoring Ethernet AV networks. It provides a multi-service platform to easily create and manage the most complex networks without specific technology skills IT.

GHOST MK2 integrates a layer 2 programmable switch motherboard, an interface and control front panel board and a 120 - 230 VAC 50/60 Hz power supply. The software specially developed for applications touring and live is called Agora Controller; this software can instantly manage all networked Agora devices from a PC Windows 7 - 11/64 bit, Linux and Mac OS 10.15 and later PC connected on a single device.

Fixed installations: stadiums and sports facilities, museums, theme parks and entertainment venues, theatres, music and performance venues, boardrooms and corporate buildings

• Main features
• 14 Assignable 10/100/1000 Mbps ether. CON ports
• 2 Optical. CON or Smartbeam ports 1000 - 10,000 Mbps for GHOST linking (front panel option)
• 2 Optical. CON or Smartbeam ports 1000 - 10,000 Mbps for GHOST linking (rear panel option)
• 250 Groups can be managed simultaneously
• Optical. CON QUAD available on rear panel (option)
• Single Mode and Multi Mode versions
• 8-Character LCD display for each ether. CON
• St / Tf LEDs for each port
• Colored LED ID for each port
• Network topologies: bus, ring, star and hybrid
• Agora control software, free
• Redundant PSU 100-240 VAC 50/60 Hz
• Areas of use
• Live and touring: live events and concerts, live broadcasts, PA, radiotelevision touring projects
• Broadcast and Studio: Radio and Television Studios, OB Vans, Data Centers
• Other: multimedia broadcasting
