Agora H1

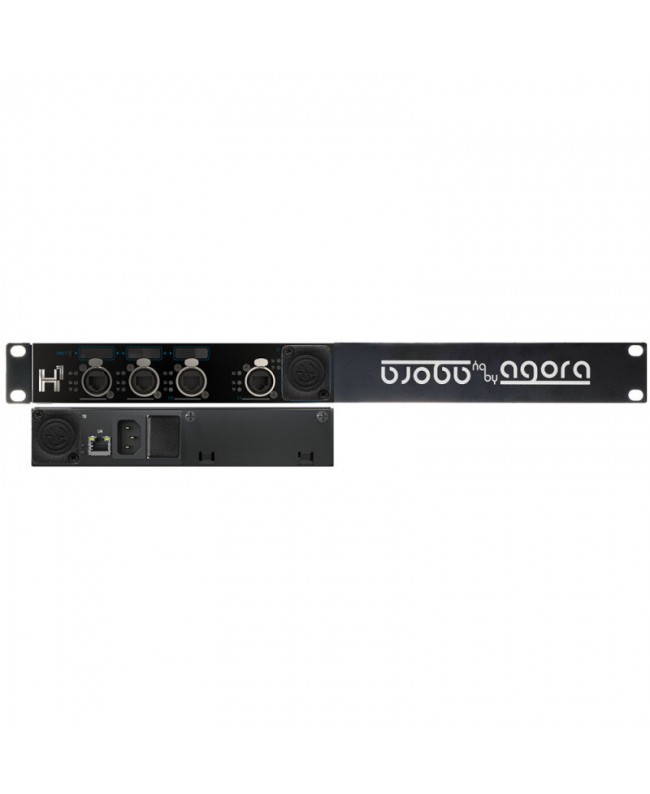

The H1 is a 1U 19 and #34; half-rack hybrid platform designed for multiplexing, transport, and delivery of the most common Ao. IP protocols and audio signals.

It provides a multi-task platform to easily create and manage the most sophisticated networks without specific IT expertise. The H1 can simultaneously function as a standalone audio bridge and an Ao. IP LAN switch, enabling the most sophisticated audio network topologies.

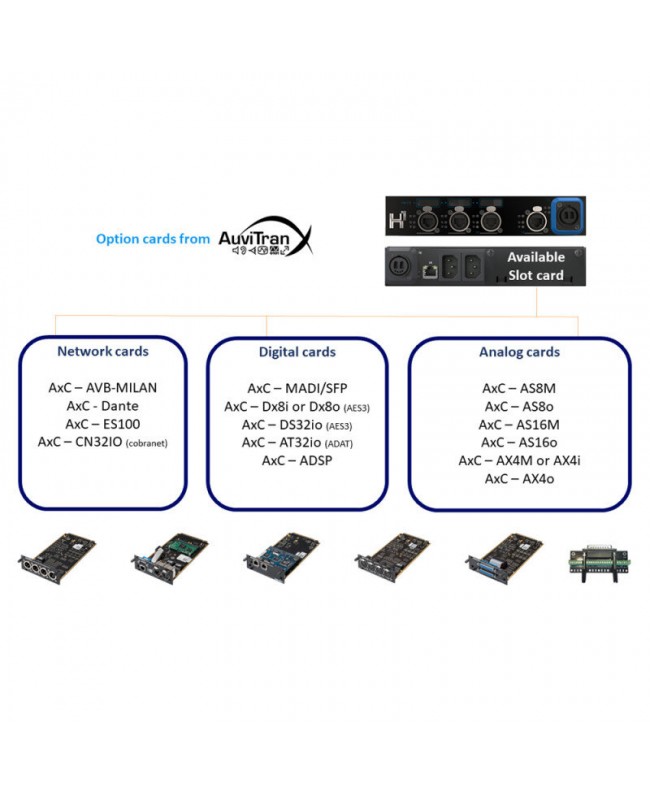

It combines a fully manageable Layer 2/Layer 3 switch and a powerful Audinate Dante audio matrix in the same and #34;engine. and #34; A front-panel control and interface card, a redundant 100-240V 50/60Hz power supply, and a rear slot that accepts all Auvitran Ax. C interface cards make this tool a unified audio network solution. In a standalone application, the H1 functions as a bidirectional audio bridge between Audinate Dante and all formats supported by Auvitran Ax. C interface cards. In extensive applications, the H1 provides the dual-service functionality of a managed network switch and an audio endpoint.

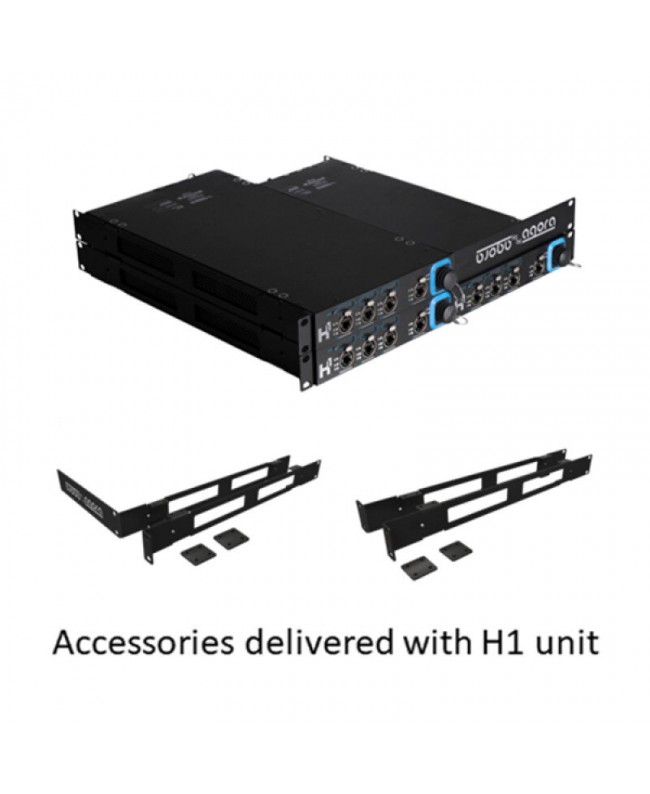

Featuring a wide range of interchangeable accessories, the H1 adapts to all use cases (half-rack, rack, truss clamp). AVS Monitor is the dedicated software that runs on Windows 7 to 10 in 32- and 64-bit versions.

The following list indicates the protocols currently tested and certified and may change in the future without any hardware modifications. Firmware updates will be released from the manufacturer and #039;s website.

Fixed installations: stadiums and sports facilities, museums, theme parks and entertainment venues, theaters, music and performance venues, boardrooms, and corporate buildings

• Compatible protocols:
• Ether. Sound
• TCP/IP Remote Networks
• Dante
• Art-Net
• AVB-MILAN
• Main features
• 3 Completely independent and assignable 10/100/1000 Mbps ether. CON ports
• 1 Assignable 1000 Mbps ether. CON port per unit connection
• 2 Assignable 1000 Mbps optical. CON Duo ports per unit connection (option available in single-mode and multi-mode versions)
• 1 RJ45 port assignable in front panel
• 2 Internal ports connected to the Audinate Brooklyn II primary and secondary interfaces
• 99 Groups can be managed simultaneously
• ID LEDs on each user port
• Status and traffic of each port
• 1 X 128 x 128 audio channel matrix for connections between internal and external slots
• 1 LCD screen on each front panel user port
• Several network topologies available: bus, ring, star and hybrid
• Robust and modular mechanical assembly for a wide range of applications
• Optional redundant PSU available
• Areas of use
• Live and touring: live events and concerts, live broadcasts, PA, touring radio / television projects
• Broadcast and studio: radio and television studios, OB vans, data centers
• Others: multimedia broadcasting
