Agora H1.GM.R AV Switch

Agora H1.GM.R

€5,940.00
Tax included

H1 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik - multi-mode (1 on front panel and 1 on the rear panel) + redundant power supply option - 10 / 16 A

Out of Stock

Free shipping

Compare

wishlist

Agora H1.GM.R



H1 with 2 x transmit 1 Gbit ports - F.O. DUAL optical. CON Neutrik - multi-mode (1 on front panel and amp; 1 on the rear panel) and #43; redundant power supply option - 10 / 16 A.

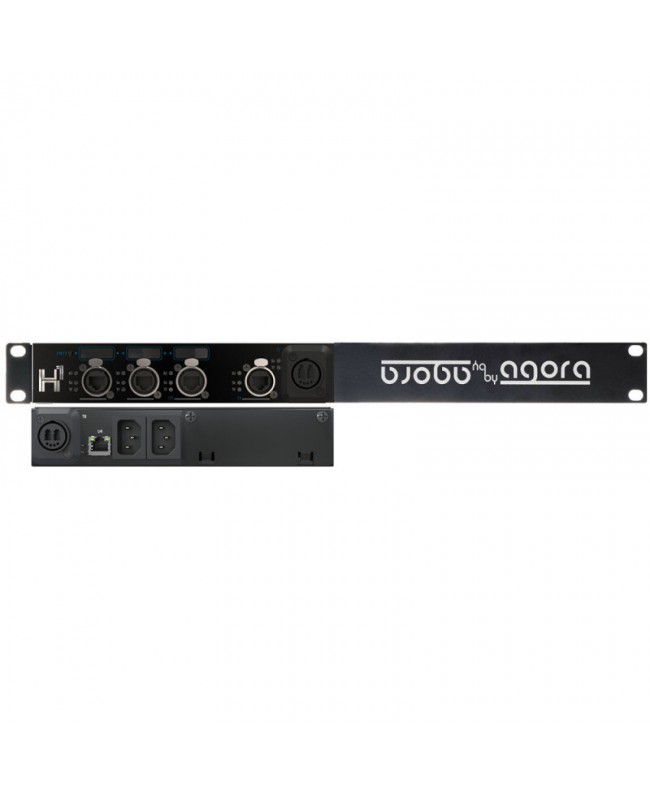

  • Front panel: 3 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports with LCD screens1 x 10 Base-T / 100 Base-TX/ 1000 Base-T etherCON ports1 x 10 Base-T / 100 Base-TX / 1 000 Base-T opticalCON DUAL ports2 x Internal port connected to the Audinate Dante primary and secondary interfaces3 LEDs (Statut, traffic, ID) on each etherCON user port2 LEDs (Statut et traffic) on each opticalCON and etherCON transmit port1 x Configuration and navigation function switch

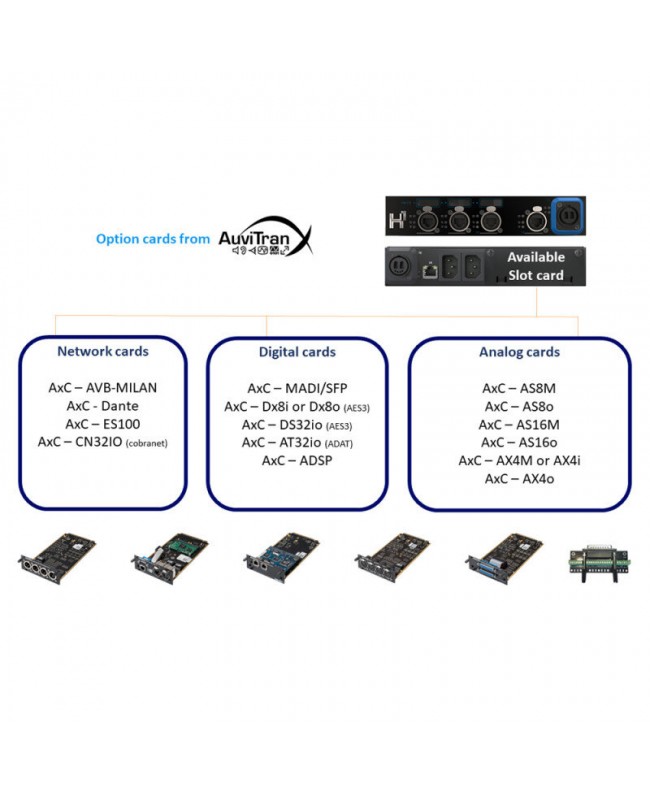

  • Rear panel: 1 x 10 Base-T / 100 Base-TX / 1000 Base-T RJ45 ports1 x 10 Base-T / 100 Base-TX / 1 000 Base-T opticalCON DUAL ports1 x AxC‚ Auvitran slot2 x power cord (redundant power supply)
  • Software: Web service for switch board controlSwitch, Aaudio matrix and interface cards remote is available on Auvitran AVS Monitor software AudinateTM Brooklyn II control and monitoring is available on Audinate Dante controller software Service and maintenance window
  • Switch mother board: 99 x available groupsCapacity of 2 x 8K MAC addressIEEE 802.1p Qos
  • Network capacity: 99 x available groupsCapacity of 8K MAC addressIEEE 802.1p Qos
  • Audio matrix: 128 x 128 audio channels at 48 kHzInternal slot: up to 64 x 64 audio channels at 48 kHzExternal slot: up to 64 x 64 audio channels at 48 kHzNetwork streaming capacity: up to 64 x 64 audio channels at 48 kHz / 32 simultaneous streams Dante / AES67Clocking: two onboard oscillators‚ Dante / Internal‚ software switchable
  • Power consumption: 100 - 127 VAC 0.5 A, 200 - 240 VAC 0.25 A
  • Power supply: 100 - 240 VAC 50/60 Hz
  • Idle power: 25 W
  • Maximum power rating: 50 W
  • Storage temperature / humidity: 70 °C T -40 °C / 90% H 10% without condensation
  • Operating temperature / humidity: 40 °C T 0 °C / 90% H 10% without condensation
  • Altitude: up to 3 km
  • Acoustic: fanless
  • Size (W x D x H): 22 x 43.39 x 4.33 mm (without accessoires)
  • Weight (without options): 3.8 kg

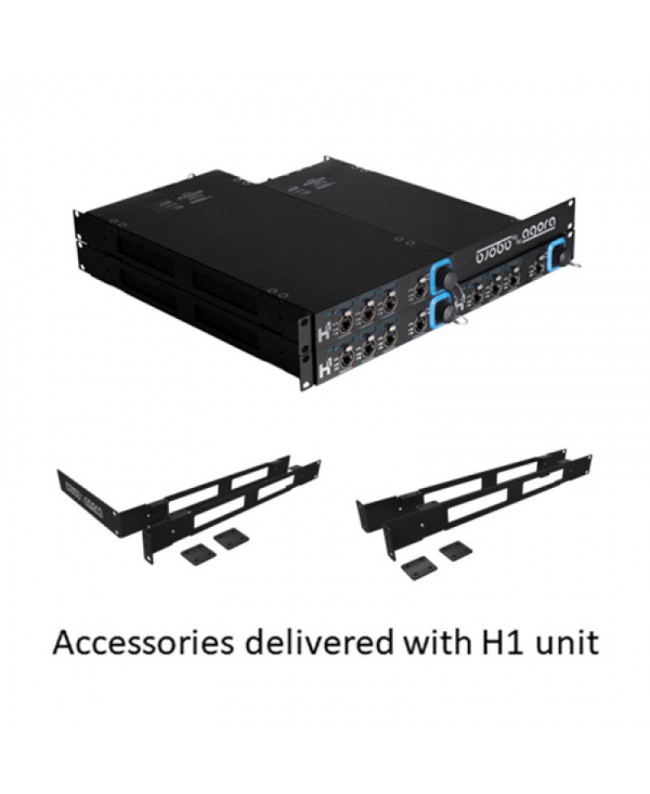

  • Package includes: 1 x H1 engine1 x IEC13 lock power cord1 x USB stick with software, firmware and owner‚ documents20 x M3 screw1 x removable short angle bracket1 x removable long angle bracket2 x removable wall-mount bracket (option)1 x M10 removable plate (option)1 x 5030-B truss clamp (option)2 x linking plate

AGO-H1.GM.R
